Запчасти John Deere 90 4 - REPLACEMENT CYLINDER BLOCK, FITTINGS AND MAIN BEARING CAPS 404 - ENGINE 4

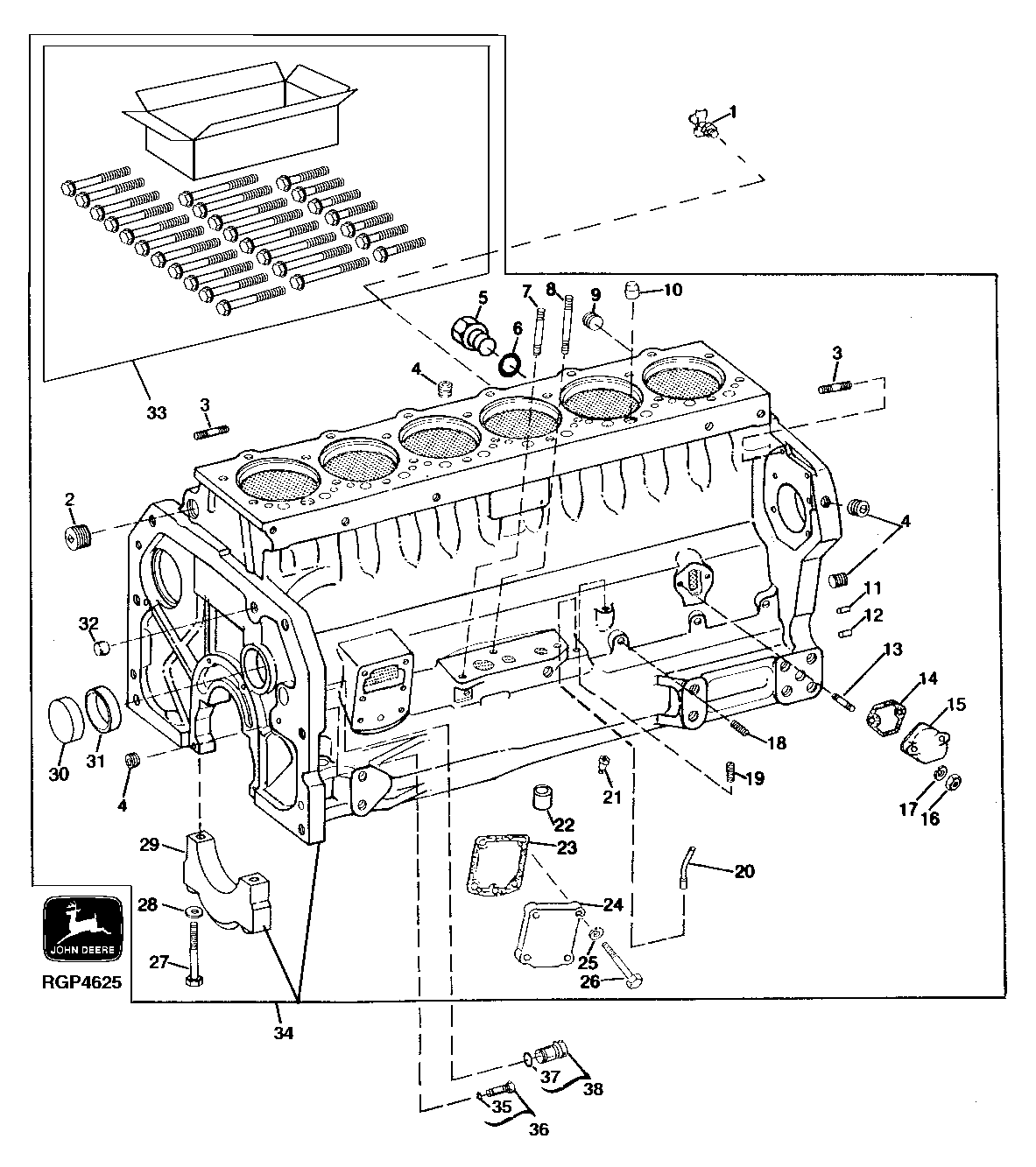

Схема запчастей John Deere 90 - 4 - REPLACEMENT CYLINDER BLOCK, FITTINGS AND MAIN BEARING CAPS 404 - ENGINE 4

Артикул

Название

Примечание

Количество

1

AT13740

DRAIN VALVE

1шт.

2

15H686

PIPE PLUG

1", (SUB FOR AR78522)

1шт.

3

R114130

STUD

(SUB FOR R55396, THIS APPLICATION)

5шт.

4

RE57836

PIPE PLUG

1/2", (SUB FOR AR72319 OR 15H624)

5шт.

5

R39741

DRAIN PLUG

1шт.

6

U13639

O-RING

1шт.

7

R106859

STUD

(SUB FOR F3646R OR R26622, THIS APPLICATION)

1шт.

8

R55395

STUD

1шт.

9

15H690

PIPE PLUG

3/4", (SUB FOR AR72318)

2шт.

10

R42340

BUSHING

2шт.

11

R1612R

DOWEL PIN

4шт.

12

F1743R

DOWEL PIN

2шт.

13

R48755

STUD

2шт.

14

R520618

GASKET

(SUB FOR R97350, R27285)

1шт.

15

R27286

COVER

1шт.

16

14H785

NUT

5/16"

2шт.

17

12H303

LOCK WASHER

2шт.

18

R104592

PIPE PLUG

1шт.

19

R104592

PIPE PLUG

(SUB FOR R21630, THIS APPLICATION)

5шт.

20

AR71850

DIPSTICK TUBE

1шт.

21

R43621

ORIFICE

6шт.

22

R62930

BUSHING

2шт.

23

R62410

GASKET

1шт.

24

R69135

COVER

NAшт.

25

12H304

LOCK WASHER

(NO LONGER REQUIRED)

NAшт.

26

19H1936

CAP SCREW

NAшт.

27

R42365

BOLT

15.875 X 120.650 MM (5/8" X 4-3/4")

14шт.

28

R70268

WASHER

16.662 X 27.940 X 4.394 MM (21/32" X 1.100" X 0.173") (SUB FOR R42363)

14шт.

29

R57158

BEARING CAP

(MAIN)

6шт.

R57159

BEARING CAP

(MAIN THRUST)

1шт.

30

R26115

PLUG

1шт.

31

R46903

BUSHING

4шт.

32

R61288

DOWEL PIN

1шт.

33

RG24025

KIT

(CONTAINS (26) "SPECIAL" HEAD BOLTS)

1шт.

34

RE65069

SHORT BLOCK ASSEMBLY

(MARKED R122733) (SUB FOR RE65070)

1шт.

35

A4365R

O-RING

1шт.

36

AR61589

PLUG

1шт.

37

R27149

O-RING

1шт.

38

AR61533

PLUG

1шт.

Выбрано товаров: 39
