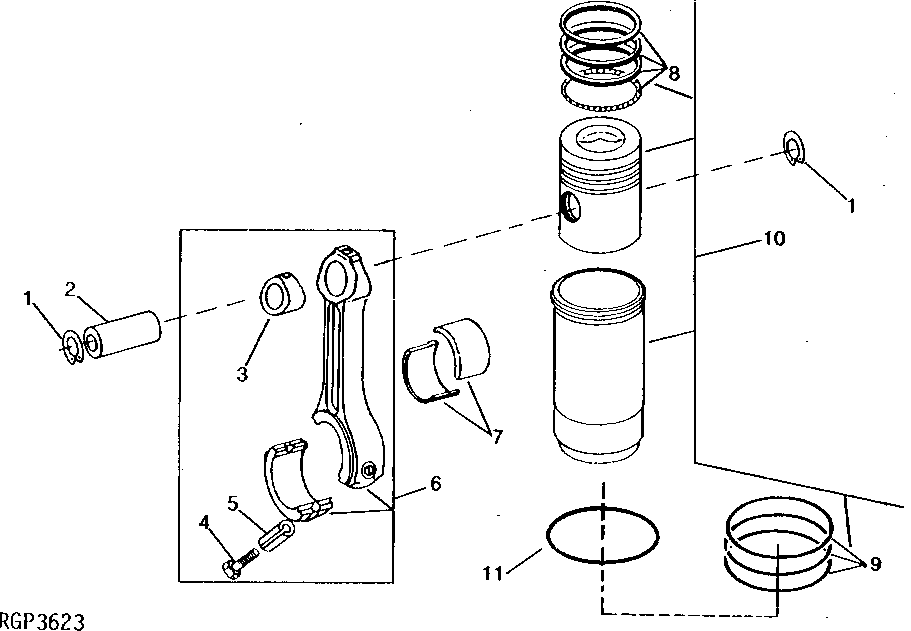

Запчасти John Deere 90 1 - PISTONS, RINGS, LINERS AND CONNECTING RODS 403 - ENGINE 4

1

E1343FN

SNAP RING

12шт.

2

R57771

PISTON PIN

6шт.

3

R74008

BUSHING

6шт.

4

R66452

CAP SCREW

12шт.

5

R53292

SLEEVE

12шт.

6

AR93341

CONNECTING ROD

(SUB (6) SE500498) (MARKED R71074)

6шт.

SE500498

CONNECTING ROD

(REMANUFACTURED)

6шт.

7

AR73277

BEARING

STD (PKG (2) R57583)

ARшт.

AR73278

BEARING

0.05MM (.002") US (PKG (2) R60485)

ARшт.

AR73279

BEARING

0.25MM (.010") US (PKG (2) R60486)

ARшт.

AR73280

BEARING

0.51MM (.020") US (PKG (2) R60487)

ARшт.

AR73281

BEARING

0.76MM (.030") US (PKG (2) R60488)

ARшт.

8

RE48380

PISTON RING KIT

(SUB FOR AR73627) (USE WITH AR98838 OR AR100616)

6шт.

9

AR98850

O-RING KIT

6шт.

10

RE60282

PISTON-LINER KIT

(MARKED AR100616 OR AR98838) (SUB FOR AR100646)

6шт.

11

R93948

SHIM

0.05MM (.002") (MAX.)

2шт.

RE60283

ENGINE OVERHAUL KIT

(CONTAINS (6) RE60282 PISTON LINER KITS, GASKET KIT, STD BEARINGS, FRONT/REAR SEALS AND SNAP RINGS) (ALSO ORDER R66452 ROD BOLTS) (SUB FOR RG18847)

1шт.
