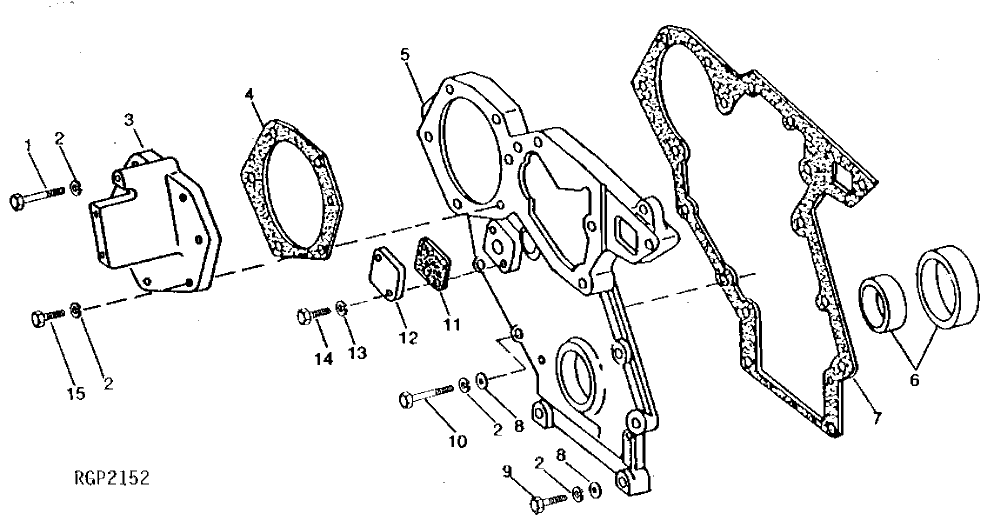

Запчасти John Deere 90 4 - CRANKSHAFT FRONT OIL SEAL AND TIMING GEAR COVER 402 - ENGINE 4

1

19H1921

CAP SCREW

5/16" X 3-1/4"

5шт.

2

12H303

LOCK WASHER

5/16", (NO LONGER REQUIRED)

6шт.

3

R79809

COVER

1шт.

4

R50390

GASKET

1шт.

5

R71316

COVER

1шт.

6

AR49025

SEAL

1шт.

7

R71314

GASKET

1шт.

8

24H1136

WASHER

11/32" X 11/16" X 0.065"

6шт.

9

19H3552

CAP SCREW

5/16" X 1-1/2"

4шт.

10

19H2713

CAP SCREW

5/16" X 1-7/8"

2шт.

11

R67770

GASKET

1шт.

12

R67769

COVER

1шт.

13

12H302

LOCK WASHER

1/4"

2шт.

14

19H1732

CAP SCREW

3/8" X 1-1/4"

2шт.

15

19H1849

CAP SCREW

5/16" X 1-1/4"

1шт.
