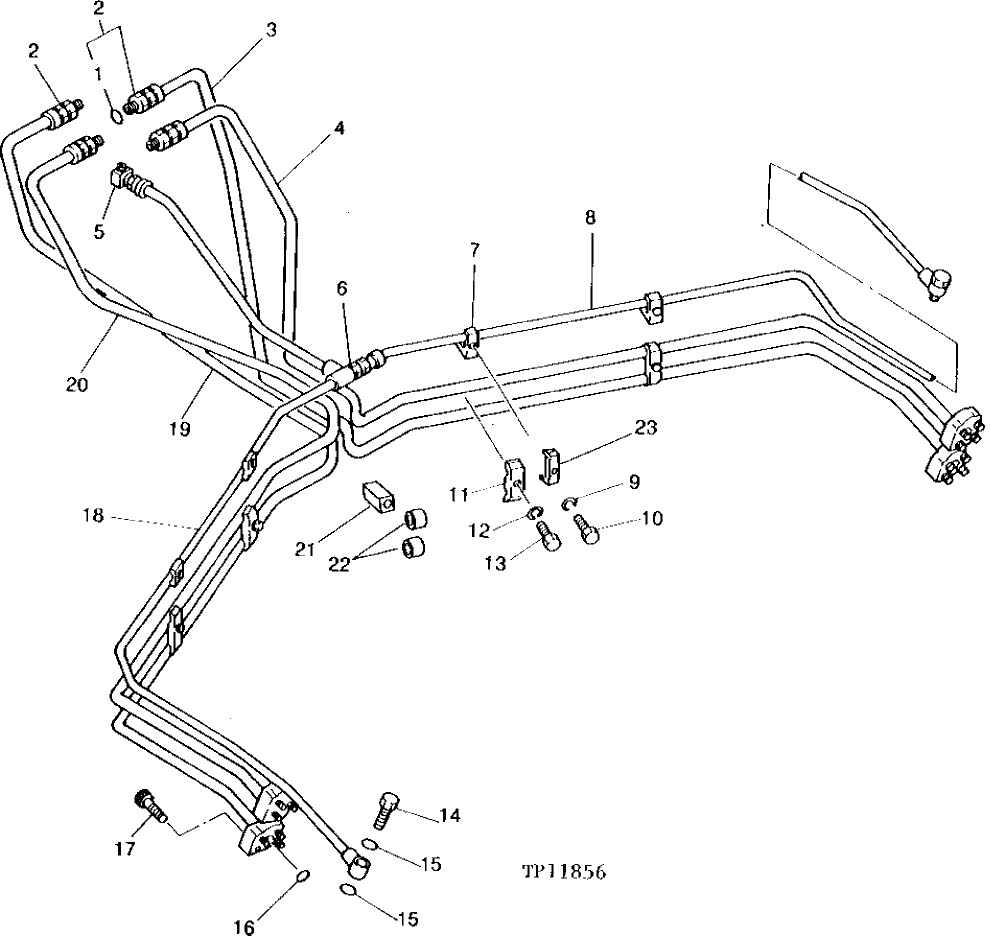

Запчасти John Deere 90 8 - PROPEL PLUMBING 260 - AXLES AND SUSPENSION SYSTEMS 2

1

4506424

O-RING

(SUB FOR TH100055)

1шт.

2

4042033

ADAPTER FITTING

(SUB FOR TH101978)

4шт.

3

7014022

TUBE

(SUB FOR TH102402)

1шт.

7015012

LINE

(SUB FOR TH103190)

1шт.

4

7014021

TUBE

(SUB FOR TH102401)

1шт.

7015013

LINE

(SUB FOR TH103191)

1шт.

5

94-1402

ELBOW FITTING

(SUB FOR TH102395)

1шт.

6

94-1302

ADAPTER FITTING

(SUB FOR TH101302)

1шт.

7

4138227

CLAMP

(SUB FOR TH101062)

4шт.

8

7015488

TUBE

(SUB FOR TH102403)

1шт.

7015490

OIL LINE

(SUB FOR TH103192)

1шт.

9

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

10

19M7358

CAP SCREW

M10 X 40

4шт.

11

4053596

CLAMP

(SUB FOR TH100948)

4шт.

12

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

4шт.

13

19M8348

CAP SCREW

M12 X 65

4шт.

19M7362

CAP SCREW

4шт.

19M7362

CAP SCREW

4шт.

14

4109416

FITTING

(SUB FOR TH101304)

2шт.

15

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

4шт.

16

AT264324

O-RING

(SUB FOR TH100044) (USE IF AVAILABLE)

4шт.

AT264324

O-RING

(SUB FOR T32587, TH100044)

4шт.

17

M341032

SCREW

(SUB FOR TH101301)

16шт.

18

7015489

TUBE

(SUB FOR TH102404)

1шт.

7015491

LINE

(SUB FOR TH103193)

1шт.

19

7014020

TUBE

(SUB FOR TH102400)

1шт.

7015010

LINE

(SUB FOR TH103188)

1шт.

20

7014019

TUBE

(SUB FOR TH102399)

1шт.

7015011

LINE

(SUB FOR TH103189)

1шт.

21

4166719

SPACER

(SUB FOR TH103185)

4шт.

22

4166720

ISOLATOR

(SUB FOR TH103186)

8шт.

23

4053599

CLAMP

(SUB FOR TH101980)

4шт.
