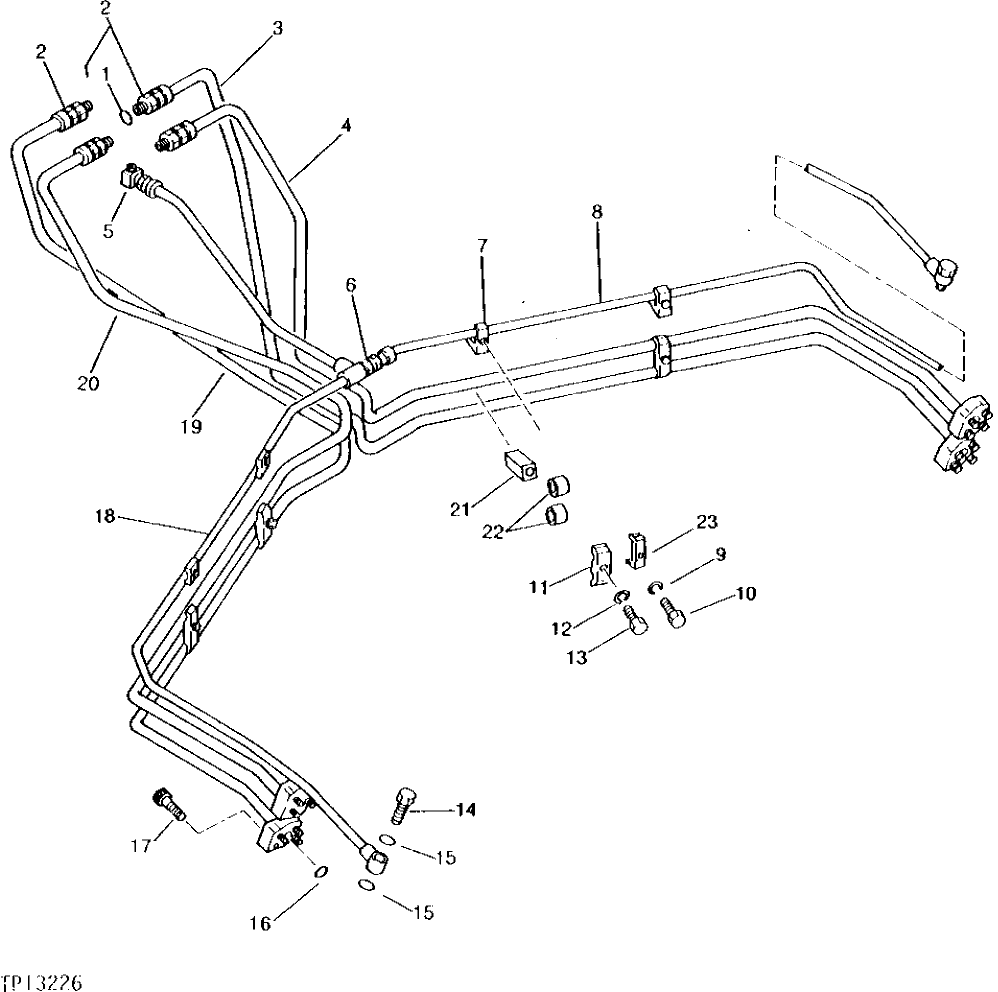

Запчасти John Deere 90 6 - PROPEL PLUMBING 260 - AXLES AND SUSPENSION SYSTEMS 2

1

4506424

O-RING

(SUB FOR TH100055)

1шт.

2

4042033

ADAPTER FITTING

(SUB FOR TH101978)

4шт.

3

7012992

TUBE

(SUB FOR TH102394)

1шт.

7015009

LINE

(SUB FOR TH103182)

1шт.

4

7012991

TUBE

(SUB FOR TH102393)

1шт.

7015008

LINE

(SUB FOR TH103181)

1шт.

5

94-1402

ELBOW FITTING

(SUB FOR TH102395)

1шт.

6

94-1302

ADAPTER FITTING

(SUB FOR TH101302)

1шт.

7

4138227

CLAMP

(SUB FOR TH101062)

4шт.

8

7015451

TUBE

(SUB FOR TH102396)

1шт.

7015449

OIL LINE

(SUB FOR TH103183)

1шт.

9

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

10

19M7358

CAP SCREW

M10 X 40

4шт.

11

4053596

CLAMP

(SUB FOR TH100948)

4шт.

12

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

4шт.

13

19M8348

CAP SCREW

M12 X 65

4шт.

19M7362

CAP SCREW

M12 X 55

4шт.

14

4109416

FITTING

(SUB FOR TH101304)

2шт.

15

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

4шт.

16

AT264324

O-RING

(SUB FOR TH100044) (USE IF AVAILABLE)

4шт.

AT264324

O-RING

(SUB FOR T32587, TH100044)

4шт.

17

M341032

SCREW

(SUB FOR TH101301)

16шт.

18

7015452

TUBE

(SUB FOR TH102397)

1шт.

7015450

OIL LINE

(SUB FOR TH103184)

1шт.

19

7012990

OIL LINE

(SUB FOR TH102392)

1шт.

7015007

LINE

(SUB FOR TH103180)

1шт.

20

7012989

TUBE

(SUB FOR TH102391)

1шт.

7015006

LINE

(SUB FOR TH103179)

1шт.

21

4166719

SPACER

(SUB FOR TH103185)

4шт.

22

4166720

ISOLATOR

(SUB FOR TH103186)

8шт.

23

4053599

CLAMP

(SUB FOR TH101980)

4шт.
