Запчасти John Deere 90 2 - PROPEL MOTOR 250 - AXLES AND SUSPENSION SYSTEMS 2

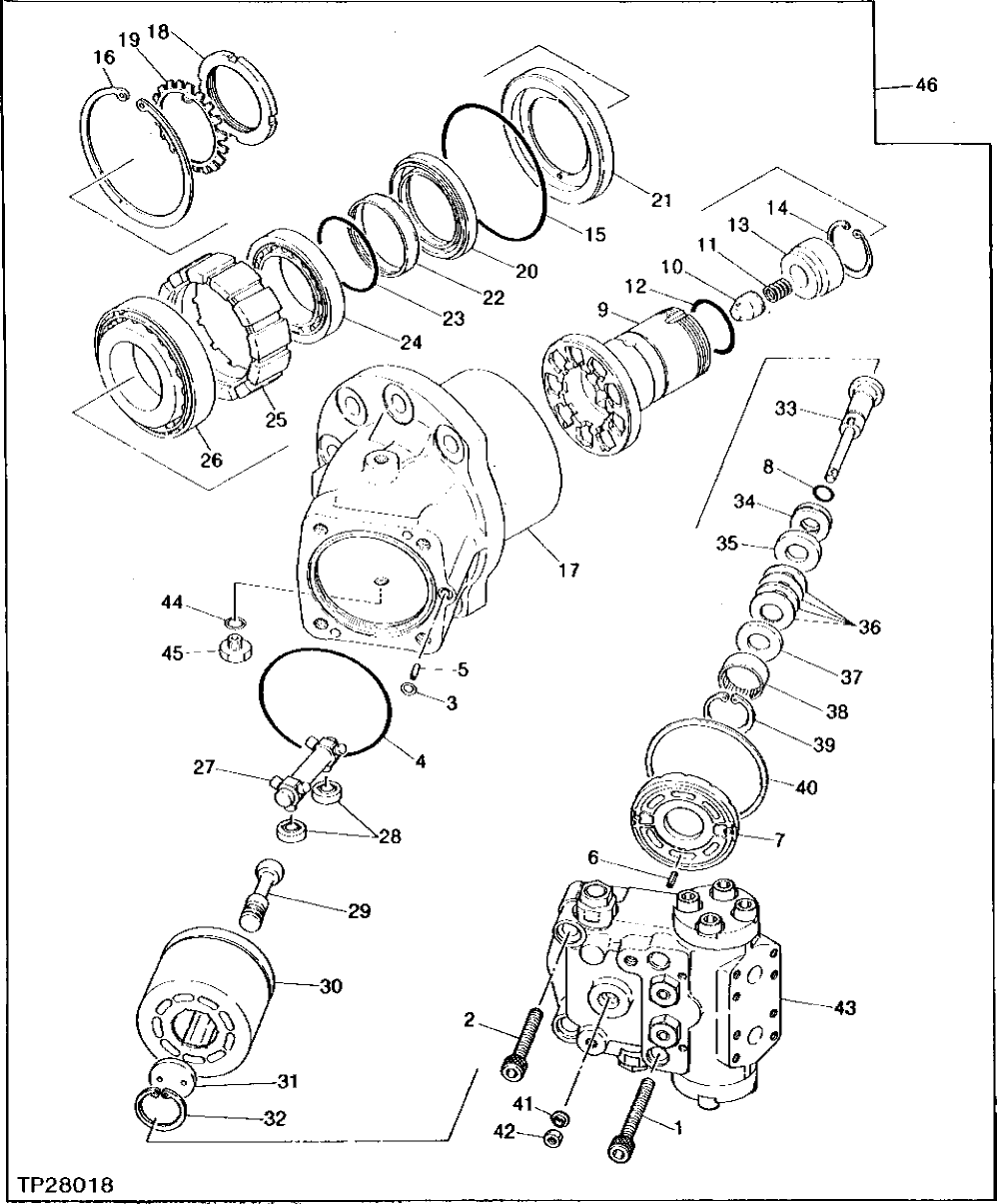

Схема запчастей John Deere 90 - 2 - PROPEL MOTOR 250 - AXLES AND SUSPENSION SYSTEMS 2

Артикул

Название

Примечание

Количество

1

M341400

SCREW

(SUB FOR TH100038)

2шт.

2

M341480

SCREW

(SUB FOR TH102678)

2шт.

3

CH11569

PACKING

(SUB FOR TH100032)

1шт.

4

A810120

O-RING

(SUB FOR TH100031)

1шт.

5

CH15134

PIN

(SUB FOR TH100033)

1шт.

6

34M7061

SPRING PIN

8 X 20 MM, (SUB FOR TH100034)

1шт.

7

3029036

PLATE

(SUB FOR TH102677)

1шт.

8

CH10568

PACKING

(SUB FOR TH102668)

1шт.

9

2015159

DRIVE DISK

(SUB FOR TH100003)

1шт.

10

4065876

STOP

(SUB FOR TH102660)

1шт.

11

4070390

SPRING

(SUB FOR TH102661)

1шт.

12

CH11436

O-RING

(SUB FOR TH100004)

1шт.

13

4156323

RETAINER

(SUB FOR TH102659)

1шт.

14

40M1864

SNAP RING

(SUB FOR TH100006)

1шт.

15

CH14695

PACKING

(SUB FOR TH102674)

1шт.

16

L38023

SNAP RING

(SUB FOR TH102675)

1шт.

17

HOUSING

( TH102673 NO LONGER AVAILABLE)

1шт.

18

454939

NUT

(SUB FOR TH100015)

1шт.

19

454956

WASHER

(SUB FOR TH100014)

1шт.

20

TH100012

SEAL

1шт.

21

4148504

COVER

(SUB FOR TH102664)

1шт.

22

4127345

SLEEVE

(SUB FOR TH100011)

1шт.

23

CH14671

PACKING

(SUB FOR TH100010)

1шт.

24

TH100009

TAPERED ROLLER BEARING

COMPLETE CUP AND CONE

1шт.

25

3027267

BUSHING

(SUB FOR TH102663)

1шт.

26

TH102662

TAPERED ROLLER BEARING

COMPLETE CUP AND CONE

1шт.

27

3020028

ROD

(SUB FOR TH100017)

1шт.

28

TH100018

SPHERICAL ROLLER BEARING

6шт.

29

9044928

PISTON

(SUB FOR TH100016)

9шт.

30

2019083

ROTOR

(SUB FOR TH102665)

1шт.

31

4156325

STOP

(SUB FOR TH102666)

1шт.

32

SNAP RING

( 40M1862 NO LONGER AVAILABLE) (SUB FOR TH100025)

1шт.

33

3028979

SHAFT

(SUB FOR TH102667)

1шт.

34

TH102669

BALL BEARING

1шт.

35

4156324

BUSHING

(SUB FOR TH102670)

1шт.

36

4156642

DISK SPRING

(SUB FOR TH102671)

4шт.

37

4156641

WASHER

(SUB FOR TH102672)

1шт.

38

L65031

CYLINDRICAL ROLLER BEARING

(SUB FOR TH100024) (SUB FOR JD10105)

1шт.

39

SNAP RING

( 40M1862 NO LONGER AVAILABLE) (SUB FOR TH100025)

1шт.

40

4147546

SNAP RING

(SUB FOR TH100035)

1шт.

41

4099501

SEALING WASHER

(SUB FOR TH102679)

1шт.

42

14M7273

NUT

M8

1шт.

43

9058830

VALVE

(SUB FOR TH102279)

1шт.

9054624

VALVE

(SUB FOR TH103093)

1шт.

44

CH11562

O-RING

(SUB FOR TH102676)

1шт.

45

4074727

DRAIN PLUG

(SUB FOR TH100027)

1шт.

46

9059118EX

HYDRAULIC MOTOR

(REMANUFACTURED) (SUB FOR TH102278) (SUB FOR AT217328)

1шт.

9057053EX

HYDRAULIC MOTOR

(SUB FOR TH103092) (SUB FOR AT217340) (REMANUFACTURED)

1шт.

Выбрано товаров: 48
