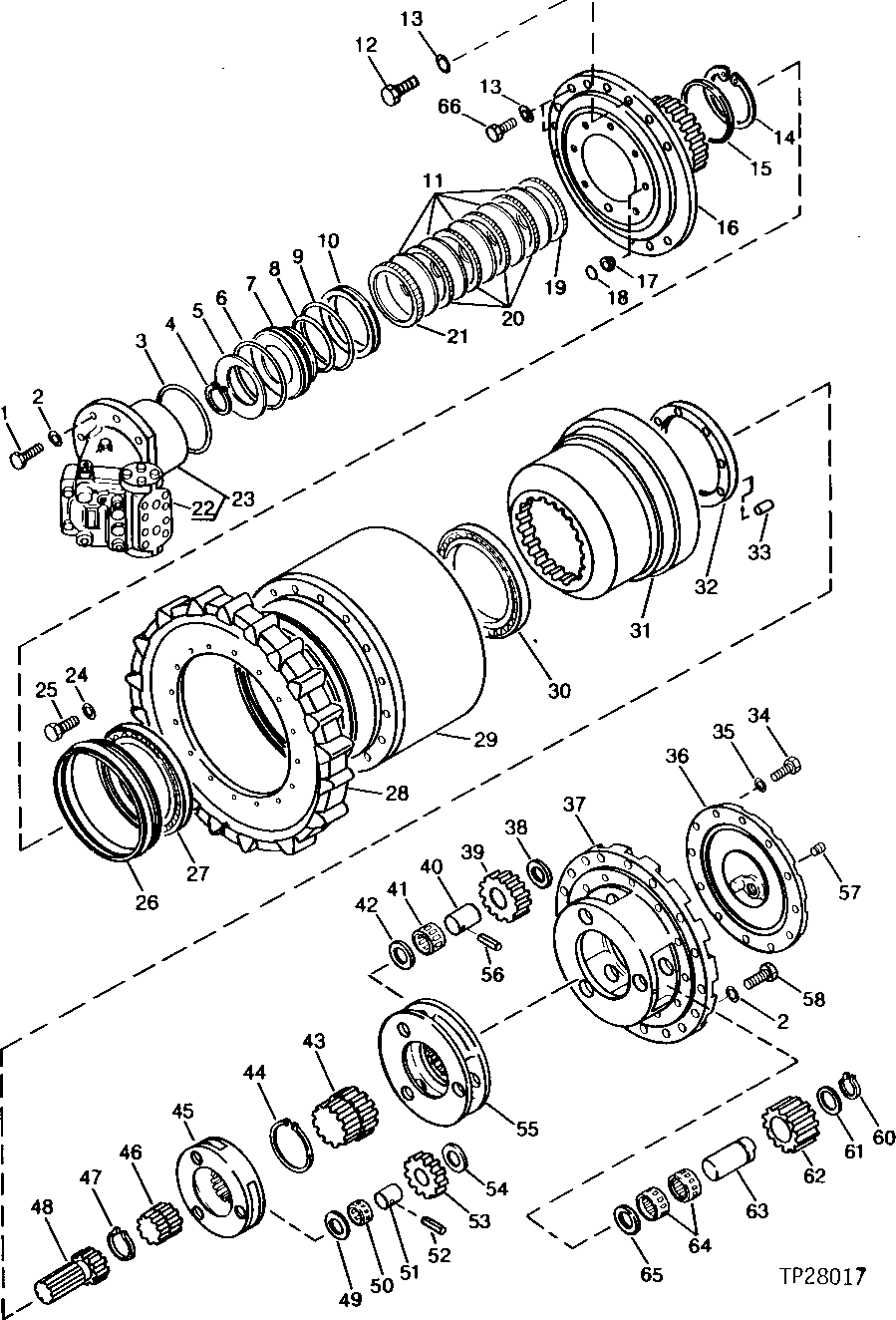

Запчасти John Deere 90 36 - PROPEL MOTOR, BRAKE AND FINAL DRIVE 130 - TRACKS 1

30

JD9603

BEARING CONE

(SUB FOR 4126654 ALONG WITH JD9157)

1шт.

4138577

CYLINDRICAL ROLLER BEARING

(SUB FOR TH103096)

1шт.

JD9157

BEARING CUP

1шт.

31

1006703

RING GEAR

(SUB FOR TH102286)

1шт.

1006714

RING GEAR

(SUB FOR TH103100)

1шт.

32

3022523

RETAINER

(SUB FOR TH100469)

1шт.

3025266

RETAINER

(SUB FOR TH103101)

1шт.

33

4126653

DOWEL PIN

(SUB FOR TH100470)

1шт.

4138498

DOWEL PIN

(SUB FOR TH103102)

1шт.

34

19M8765

SCREW

M12 X 28, (SUB FOR TH102307 OR AT131539) (ALSO ORDER 12M7067) (SUB FOR 19M3204)

12шт.

12M7058

LOCK WASHER

12 MM (0.472") (SUB FOR 12M7067)

12шт.

35

4065034

WASHER

(SUB FOR TH100486)

12шт.

36

2016635

COVER

(SUB FOR TH102306)

1шт.

2016767

COVER

(SUB FOR TH103114)

1шт.

37

1006704

PLANET PINION CARRIER

(SUB FOR TH102301)

1шт.

1006758

PLANET PINION CARRIER

(SUB FOR TH103109)

1шт.

38

4113761

THRUST WASHER

(SUB FOR TH102293)

3шт.

39

3025076

GEAR

(SUB FOR TH102297)

3шт.

TH103108

GEAR

3шт.

40

4144558

BUSHING

(SUB FOR TH102298)

3шт.

41

4126657

NEEDLE BEARING

(SUB FOR TH102299)

3шт.

42

4113761

THRUST WASHER

(SUB FOR TH102293)

3шт.

43

3025072

SUN GEAR

(SUB FOR TH102295)

1шт.

3025271

SUN GEAR

(SUB FOR TH103107)

1шт.

44

957581

SNAP RING

(SUB FOR TH102296)

1шт.

40M7193

SNAP RING

(SUB FOR TH102289)

1шт.

45

2016633

PLANET PINION CARRIER

(SUB FOR TH102287)

1шт.

2016772

PLANET PINION CARRIER

(SUB FOR TH103103)

1шт.

46

3025074

SUN GEAR

(SUB FOR TH102288)

1шт.

3025270

SUN GEAR

(SUB FOR TH103104)

1шт.

47

40M7193

SNAP RING

(SUB FOR TH102289)

1шт.

991351

SNAP RING

(SUB FOR TH102644)

1шт.

48

2016634

SHAFT

(SUB FOR TH102310)

1шт.

2016771

SHAFT

(SUB FOR TH103115)

1шт.

49

4113761

THRUST WASHER

(SUB FOR TH102293)

3шт.

4135227

THRUST WASHER

(SUB FOR TH100477)

3шт.

50

TH102292

NEEDLE BEARING

3шт.

4135194

NEEDLE BEARING

(SUB FOR TH100476)

3шт.

51

4137721

PIN FASTENER

(SUB FOR TH102291)

3шт.

4135192

PIN FASTENER

(SUB FOR TH100475)

3шт.

52

4082632

SPRING PIN

4 X 60 MM (0.157" X 2.362") (SUB FOR TH100478)

3шт.

53

3025077

GEAR

(SUB FOR TH102290) PLANETARY

3шт.

3025268

GEAR

(SUB FOR TH103105) PLANETARY

3шт.

54

4113761

THRUST WASHER

(SUB FOR TH102293)

3шт.

4135227

THRUST WASHER

(SUB FOR TH100477)

3шт.

55

2016632

PLANET PINION CARRIER

(SUB FOR TH102294)

1шт.

1006762

PLANET PINION CARRIER

(SUB FOR TH103106)

1шт.

56

34M7014

SPRING PIN

5 X 60 MM (0.197" X 2.362") (SUB FOR TH102300)

3шт.

57

4241425

FITTING PLUG

(SUB FOR TH102308) (SUB FOR TH111906)

1шт.

58

19M7489

CAP SCREW

M16 X 45

16шт.

60

962002

SNAP RING

(SUB FOR TH100483)

3шт.

61

4062857

THRUST WASHER

(SUB FOR TH102305)

3шт.

4138499

THRUST WASHER

(SUB FOR TH103113)

3шт.

62

3025075

GEAR

(SUB FOR TH102302) PLANETARY

3шт.

TH103110

GEAR

PLANETARY

3шт.

63

4137722

SHAFT

(SUB FOR TH102303)

3шт.

4138497

SHAFT

(SUB FOR TH103111)

3шт.

64

4513638

NEEDLE BEARING

(SUB FOR TH102304)

6шт.

TH103112

NEEDLE BEARING

6шт.

65

4062857

THRUST WASHER

(SUB FOR TH102305)

3шт.

4138499

THRUST WASHER

(SUB FOR TH103113)

3шт.

66

19M7892

CAP SCREW

M20 X 80

4шт.

4175219

BOLT

(SUB FOR TH103537)

4шт.

19M7892

CAP SCREW

M20 X 80

4шт.

4175219

BOLT

(SUB FOR TH103537)

4шт.
