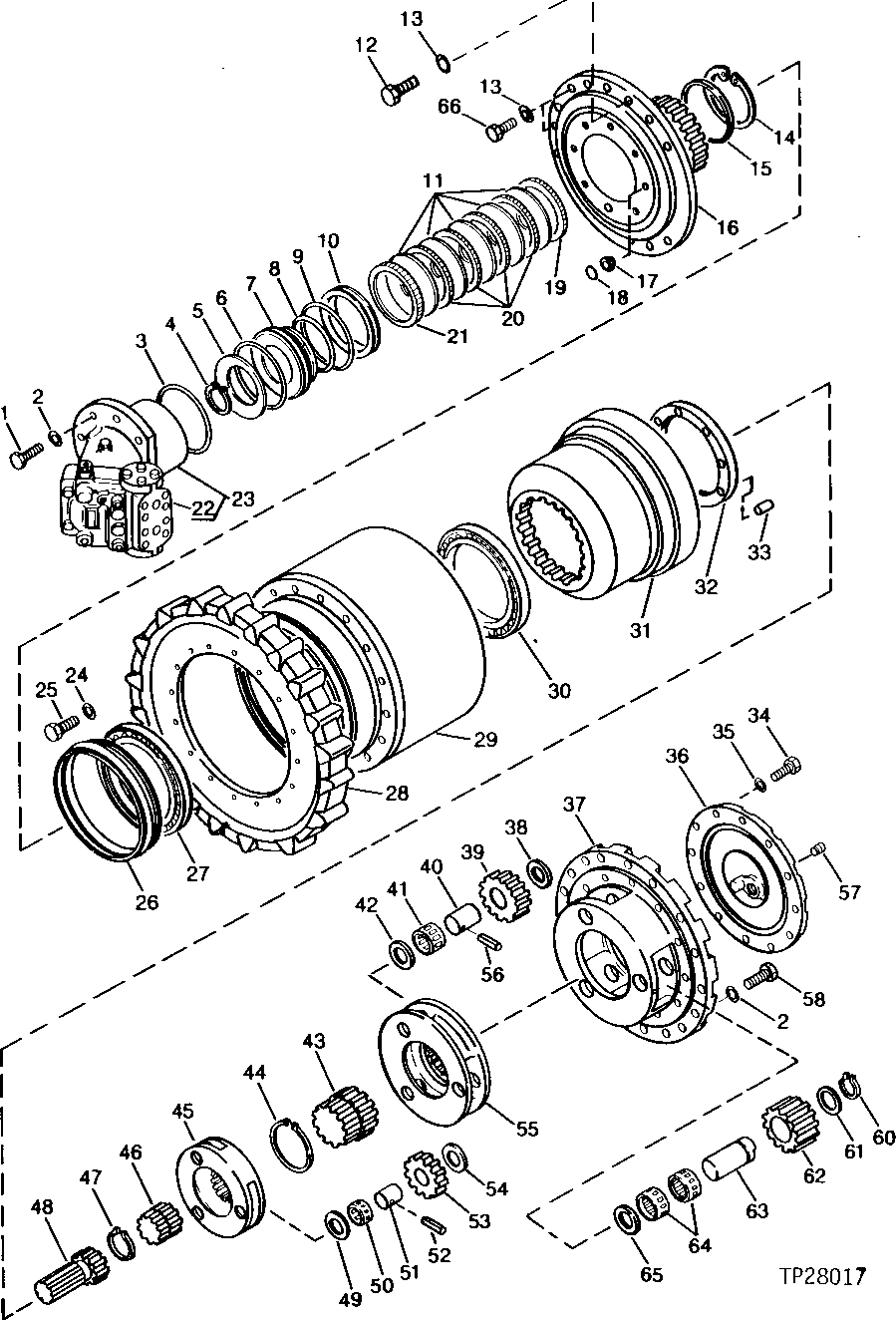

Запчасти John Deere 90 34 - PROPEL MOTOR, BRAKE AND FINAL DRIVE 130 - TRACKS 1

1

19M7409

CAP SCREW

M16 X 50

7шт.

2

12H294

LOCK WASHER

15.875 MM (5/8") (SUB FOR TH100466)

23шт.

3

O-RING

(K) ( TH100499 NO LONGER AVAILABLE)

1шт.

4

40M7066

SNAP RING

(SUB FOR TH100498)

1шт.

5

3020853

DISK SPRING

(SUB FOR TH100497)

1шт.

6

O-RING

(K) ( TH100494 NO LONGER AVAILABLE)

1шт.

7

3022888

PISTON

(SUB FOR TH100496)

1шт.

8

4324947

O-RING

(K) (SUB FOR 4117030 OR TH100495)

1шт.

9

O-RING

(K) ( TH100494 NO LONGER AVAILABLE)

1шт.

10

4115810

SPACER

(SUB FOR TH100493)

1шт.

11

3022524

BRAKE DISK

(SUB FOR TH100491)

5шт.

12

19M7892

CAP SCREW

M20 X 80, (SUB FOR TH102313)

24шт.

19M7892

CAP SCREW

M20 X 80, (SUB FOR TH102313)

30шт.

13

12M7070

LOCK WASHER

20 MM (0.787")

28шт.

12M7070

LOCK WASHER

20 MM (0.787")

34шт.

14

40M7194

SNAP RING

(SUB FOR TH100461)

1шт.

15

4115811

SPACER

(SUB FOR TH100460)

1шт.

16

1005956

HOUSING

(SUB FOR TH102280)

1шт.

1006717

HOUSING

(SUB FOR TH103094)

1шт.

17

4135291

SPACER

(SUB FOR TH100502)

1шт.

18

CH17167

O-RING

9.800 X 1.900 MM (0.386" X 0.075") (SUB FOR TH100500)

1шт.

19

3030241

CLUTCH PLATE

(SUB FOR TH102309)

1шт.

20

3030239

CLUTCH PLATE

(SUB FOR TH102311)

4шт.

21

3030240

CLUTCH PLATE

(SUB FOR TH102312)

1шт.

22

9058830

VALVE

(SUB FOR TH102279) BRAKE

1шт.

9054624

VALVE

(SUB FOR TH103093) BRAKE

1шт.

23

9059118EX

HYDRAULIC MOTOR

(REMANUFACTURED) (SUB FOR TH102278) (SUB FOR AT217328)

1шт.

9057053EX

HYDRAULIC MOTOR

(SUB FOR TH103092) (SUB FOR AT217340) (REMANUFACTURED)

1шт.

24

12M7070

LOCK WASHER

20 MM (0.787")

16шт.

25

19M8002

CAP SCREW

M20 X 55, (SUB FOR TH102285)

16шт.

26

TH102282

SEAL

1шт.

TH103097

SEAL

1шт.

27

JD9603

BEARING CONE

(SUB FOR 4126654 ALONG WITH JD9157)

1шт.

JD9042

BEARING CONE

(SUB FOR 4138578 ALONG WITH JD9108)

1шт.

JD9108

BEARING CUP

1шт.

JD9157

BEARING CUP

1шт.

28

1006755

DRIVE SPROCKET

(SUB FOR TH102284)

1шт.

1006761

DRIVE SPROCKET

(SUB FOR TH103099)

1шт.

29

1006702

DRUM

(SUB FOR TH102283)

1шт.

1006759

DRUM

(SUB FOR TH103098)

1шт.
