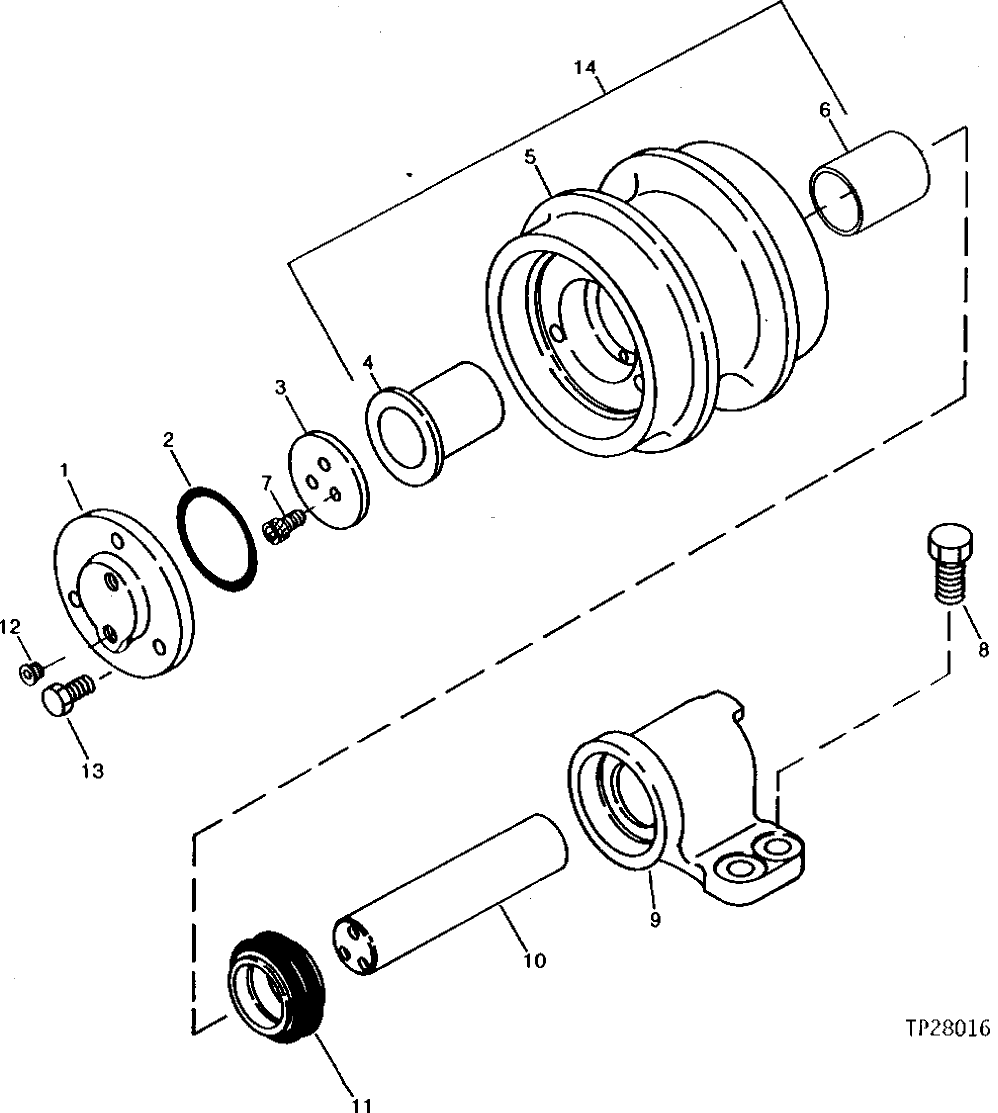

Запчасти John Deere 90 28 - UPPER ROLLER 130 - TRACKS 1

1

COVER

(SUB FOR TH102349) (USE TH108091 IF AVAILABLE)

1шт.

2

CH17154

PACKING

(SUB FOR TH102348)

1шт.

3

TH102346

WASHER

1шт.

4

4137985

BUSHING

(USE WITH TH103147) (SUB FOR TH103149)

1шт.

BUSHING

(USE WITH TH111604) ( TH111208 NO LONGER AVAILABLE)

1шт.

5

ROLLER

( TH111604 NO LONGER AVAILABLE)

1шт.

6

4137986

BUSHING

(USE WITH TH103147) (SUB FOR TH103150)

1шт.

BUSHING

(USE WITH TH111604) ( TH111219 NO LONGER AVAILABLE)

1шт.

7

0362709

BOLT

(SUB FOR TH102347)

3шт.

8

19M7488

CAP SCREW

M16 X 40

16шт.

9

TH103145

BRACKET

1шт.

10

TH103146

SHAFT

1шт.

11

4317584

SEAL

(SUB FOR TH111221 OR TH102345) (SUB FOR AT213828)

1шт.

12

94-2011

FITTING PLUG

(SUB FOR TH100434)

2шт.

13

19M8761

SCREW

M10 X 22, (SUB FOR TH100456)

3шт.

14

ROLLER

(SUB FOR TH103147) (SUB AT131378) ( TH111604 NO LONGER AVAILABLE)

1шт.
