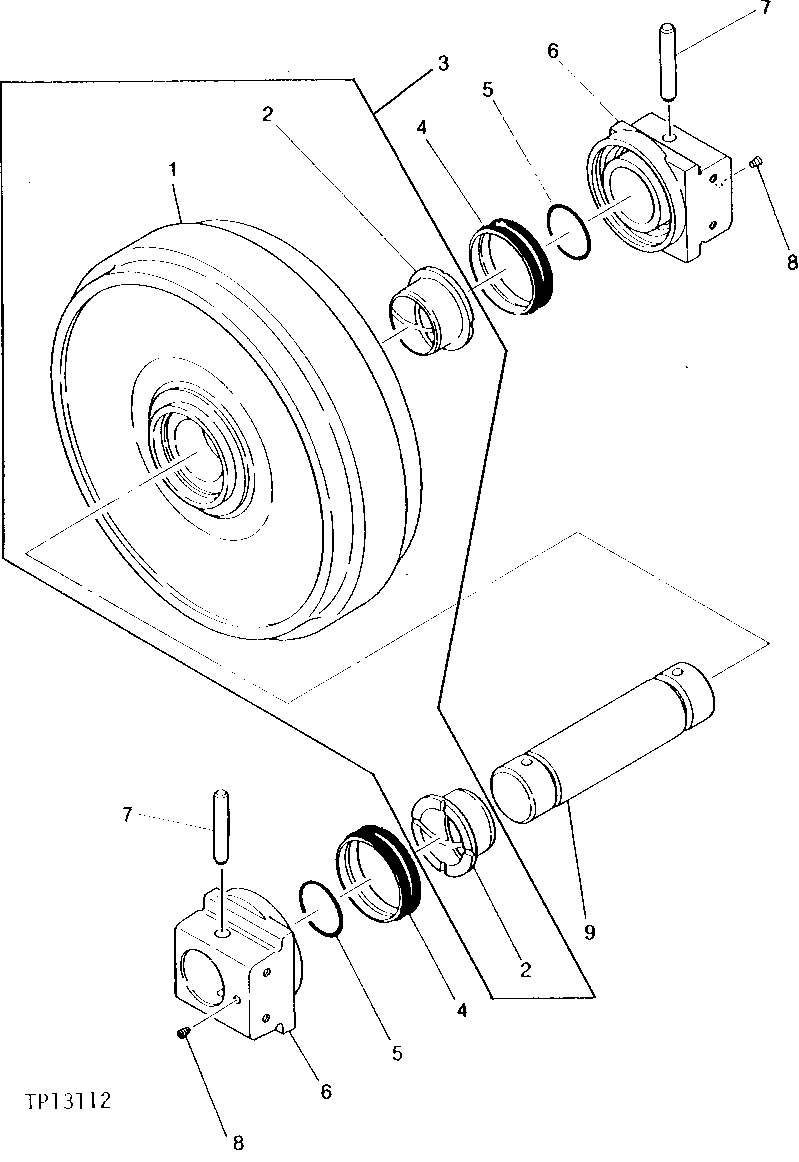

Запчасти John Deere 90 18 - FRONT IDLER 130 - TRACKS 1

1

IDLER

(SUB 9143401)

1шт.

IDLER

(SUB 9055563)

1шт.

2

BUSHING

( 4126210 NO LONGER AVAILABLE) (USE WITH TH102318) (SUB FOR TH102320)

2шт.

3056834

BUSHING

(USE WITH AT131260 OR AT172700) (SUB FOR AT131262)

2шт.

4138085

BUSHING

(SUB FOR TH103123)

2шт.

3

9143401

ROLLER

(SUB FOR TH102318, AT131260 AND AT172700)

1шт.

9055563

ROLLER

(SUB FOR TH103121)

1шт.

4

TH100433

SEAL

2шт.

TH103125

SEAL

2шт.

5

CH14671

PACKING

(SUB FOR TH100010)

2шт.

AT264419

O-RING

(SUB FOR U46456 AND A810085)

2шт.

6

2021767

BEARING

(SUB FOR TH102316) (SUB FOR TH109729)

2шт.

2016725

BRACKET

(SUB FOR TH103118)

2шт.

7

4126209

PIN

(SUB FOR TH100432)

2шт.

4138084

PIN

(SUB FOR TH103124)

2шт.

8

94-2011

FITTING PLUG

(SUB FOR TH100434)

2шт.

9

3033488

AXLE

(SUB FOR TH102317) (SUB FOR TH109730)

1шт.

3025198

SHAFT

(SUB FOR TH103119)

1шт.

10

IDLER

(SUB 9151028) (SUB FOR AT178256) (IF COMPLETE ASSEMBLY IS REQUIRED SUB 9151028) (NOT ILLUSTRATED)

1шт.

IDLER

(SUB 9143400) (SUB FOR AT172699) (IF COMPLETE ASSEMBLY IS REQUIRED SUB 9143400) (NOT ILLUSTRATED)

1шт.
