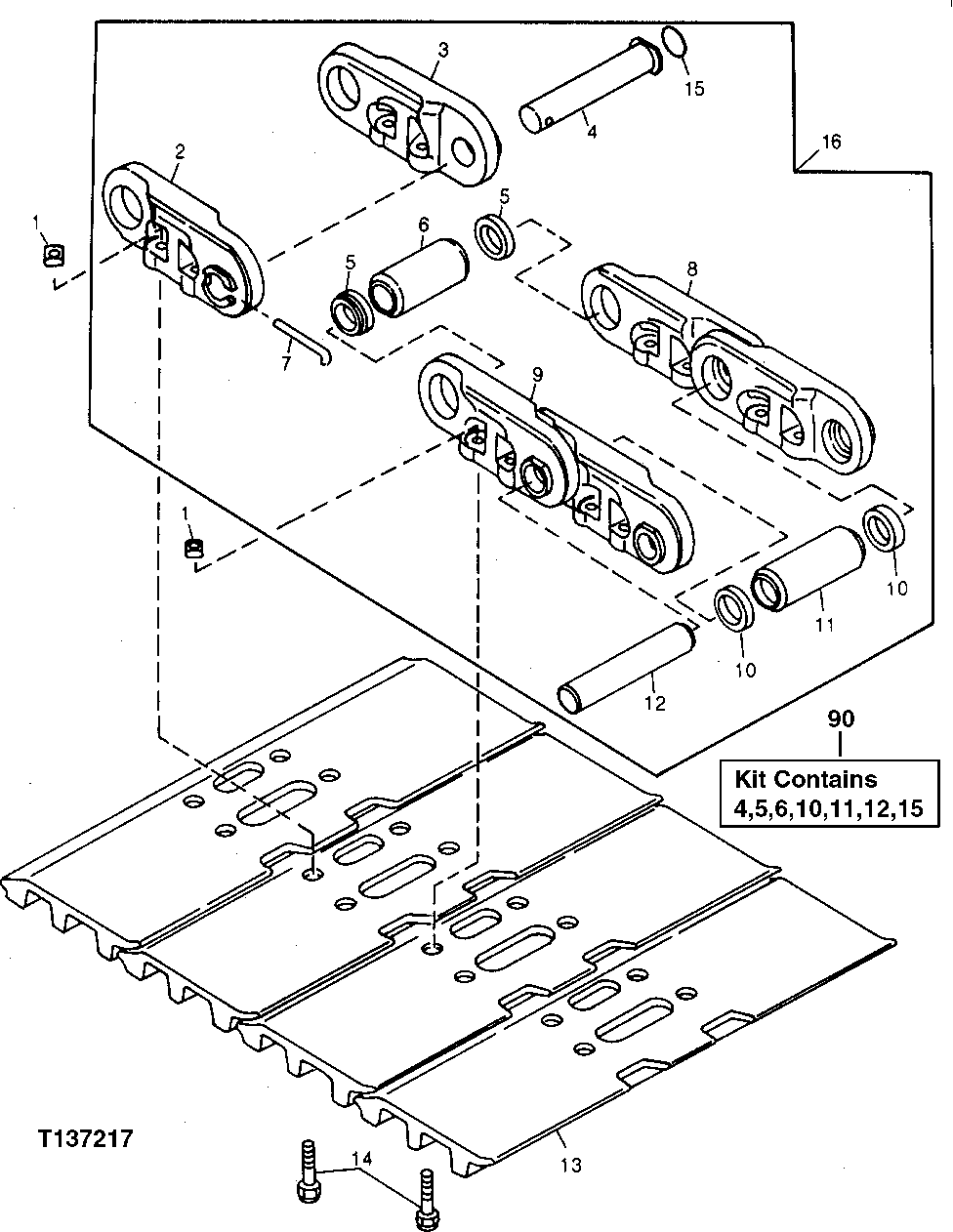

Запчасти John Deere 90 16 - TRACK CHAIN 130 - TRACKS 1

1

4067232

NUT

M20, (SUB FOR TH102376)

192шт.

2

AT159076

LINK

MASTER (LEFT) (SUB FOR 4158962, ALONG WITH AT73144, 3060205 AND TH111227) (SUB FOR TH111100, ALONG WITH (2) 3060205)

1шт.

3

AT159077

LINK

MASTER (RIGHT) (SUB FOR TH103164 OR 4186652, ALONG WITH (4) 3060205, AT159076, AT159078 AND AT159080)

1шт.

4

AT159078

MASTER TRACK PIN

(K) (MASTER - NON HEADED PIN) (SUB FOR 4067231 OR 4186651, ALONG WITH AT159076, AT159077, AT159080 (4) 3060205 AND TH111227)

1шт.

5

AT159079

BUSHING

(K) 45.100 X 66.700 X 13.500 MM (1.776" X 2.626" X 0.531") (SUB FOR TH103170 OR TH111282)

2шт.

6

AT159080

BUSHING

(K) 45.150 X 66.550 X 148.800 MM (1.778" X 2.620" X 5.858") MASTER (SUB FOR 4143723, ALONG WITH AT159076, AT159077, AT159078 AND (4) 3060205)

1шт.

7

PIN FASTENER

(SUB 4186652) (ALSO ORDER 4186651, AT159076, (2) 3060205 AND TH111227) ( TH111227 NO LONGER AVAILABLE)

1шт.

8

AT159075

LINK

(SUB FOR TH103162 OR TH111099, ALONG WITH (2) 3060205)

48шт.

9

AT159076

LINK

(SUB FOR TH103163 OR TH111100, ALONG WITH (2) 3060205)

48шт.

10

4350562

SEAL

(K) (SUB FOR TH103172, THIS APPLICATION) (SUB FOR TH111278) (SUB FOR AT171645) (QUANTITY OF 92 IN KIT)

96шт.

11

TH103167

BUSHING

(K) 45.250 X 66.650 X 158 MM (1.781" X 2.624" X 6.220") (QUANTITY OF 45 IN KIT)

48шт.

12

AT130913

PIN FASTENER

(USE IF AVAILABLE) (SUB FOR TH103166)

48шт.

AT130913

PIN FASTENER

(K) 44.450 X 245 MM (1-3/4" X 9.646") (SUB FOR TH103166) (QUANTITY OF 45 IN KIT)

48шт.

13

2017537

OPEN CENTER 3 BAR SHOE

(SUB FOR TH103174) 600 MM (24")

49шт.

2016578

OPEN CENTER 3 BAR SHOE

(SUB FOR TH103265) 800 MM (32")

49шт.

14

4143721

BOLT

(SUB FOR TH103173)

192шт.

15

TH111227

SNAP RING

(K)

1шт.

16

9180909

TRACK CHAIN W/O SHOES

(SUB FOR AT186168) (REMOVE SURPLUS LINKS) (SUB FOR TH103176, 9071587, OR AT159074, ALONG WITH (200) 3060205)

1шт.

90

AT187186

PIN & BUSHING KIT

(USE IF AVAILABLE) (CONTAINS PARTS MARKED (K)) (FOR 792LT 49 LINK CHAIN) (SUB FOR AT170093) (SUB AT187186) (ALSO ORDER (3) TH103167, (3) AT130913 AND (6) AT171645)

1шт.

AT187186

PIN & BUSHING KIT

(CONTAINS PARTS MARKED (K)) (FOR 792LT 49 LINK CHAIN) (ALSO ORDER (3) TH103167, (3) AT130913 AND (6) AT171645) (SUB FOR AT170093)

1шт.
