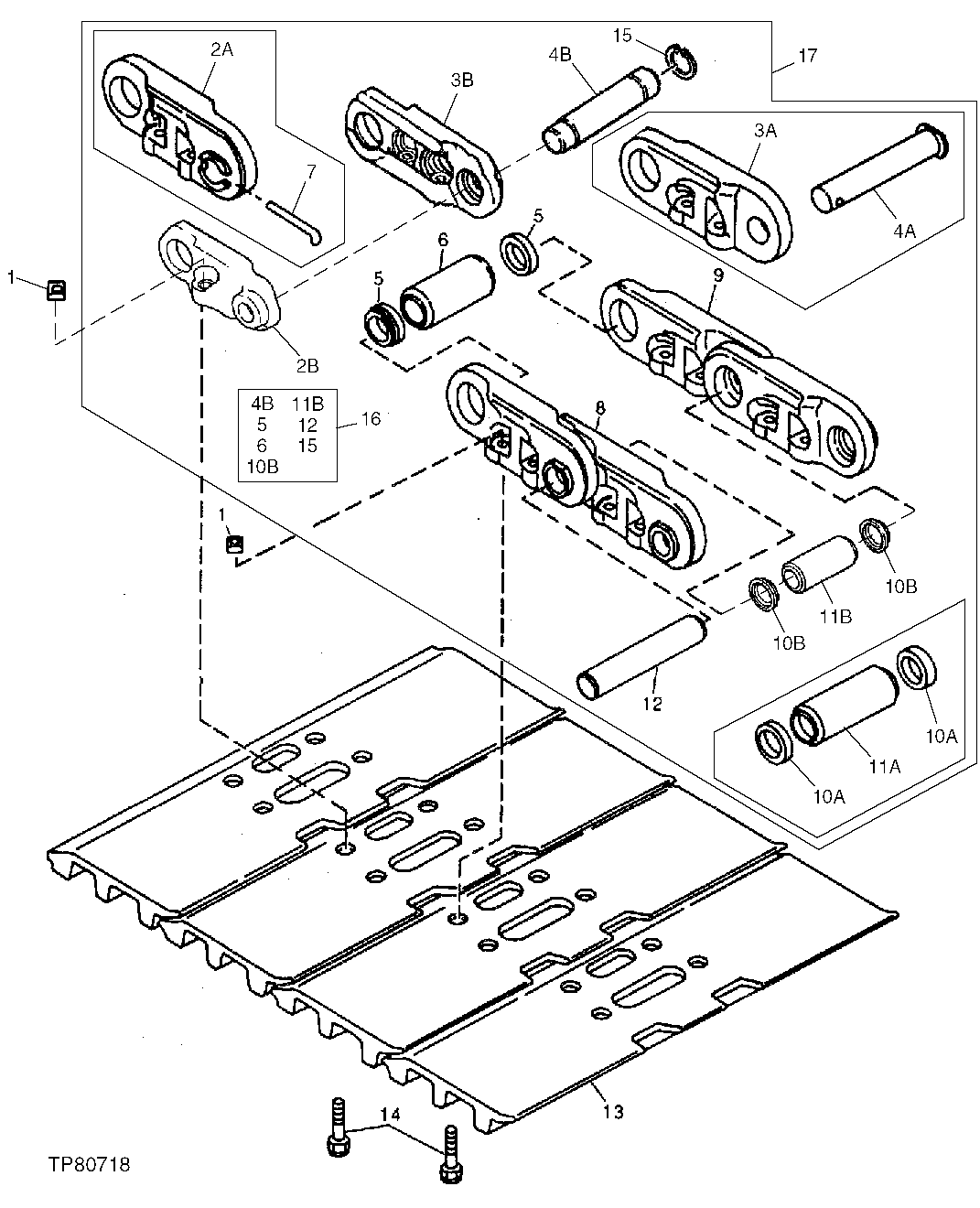

Запчасти John Deere 90 12 - TRACK CHAIN, 790 130 - TRACKS 1

1

4067232

NUT

M20, (SUB FOR TH102376)

200шт.

2A

TH102367

MASTER TRACK LINK-LH

(USE IF AVAILABLE) (IF TH102367 NOT AVAILABLE SUB TH109766, TH109767, TH109768, AND AT174863) (USE WITH TH102366, TH102373 AND TH102370)

1шт.

2B

1010077

STRUTTED LINK-LH

(SUB FOR TH102367, ALONG WITH TH109767 4186654 AND AT174863) (SUB FOR TH109766)

1шт.

3A

TH102366

MASTER TRACK LINK-RH

(USE IF AVAILABLE) (IF TH102366 NOT AVAILABLE, SUB TH109767, TH109766, TH109768, AND AT174863) (USE WITH TH102367, TH102373 AND TH102370)

1шт.

3B

4186649

MASTER TRACK LINK-RH

(SUB FOR TH102366) (ALONG WITH TH109766, TH109768, AND AT174863) (SUB FOR TH109767)

1шт.

4A

4145376

PIN FASTENER

MASTER - HEADED PIN (USE IF AVAILABLE) (USE WITH TH102373, TH102367 AND TH102366) (SUB FOR TH102370)

1шт.

4B

4186654

PIN

(USE WITH TH112104 OR 9202848) (SUB FOR TH109768)

1шт.

5

AT174862

BUSHING

MASTER, (SUB FOR TH102372)

2шт.

6

TH102371

BUSHING

MASTER, (SUB FOR AT154713, TH4145371)

1шт.

7

4145374

PIN

(USE WITH TH102363) (SUB FOR TH102373)

1шт.

8

1010077

STRUTTED LINK-LH

(SUB FOR TH102365) (SUB FOR TH109766)

51шт.

9

1010076

STRUTTED LINK-RH

(SUB FOR TH102364) (SUB FOR TH109765)

50шт.

10A

TH102374

SEAL

(USE IF AVAILABLE) (SUB AT186162 AND (2) AT186161)

90шт.

10B

AT186161

SEAL

(ALSO ORDER AT186162) (USE WITH TH102363 OR TH112104) (SUB FOR TH102374, TH109770, AT160464 OR 4358588)

90шт.

AT186161

SEAL

(ALSO ORDER AT186162) (USE WITH TH109770) (SUB FOR TH102374, TH109770, AT160464 OR 4358588)

100шт.

11A

AT186162

BUSHING

(USE IF AVAILABLE) (SUB AT186162 AND (2) AT186161) (SUB FOR TH109771)

45шт.

11B

AT186162

BUSHING

(USE WITH TH102363 OR TH112104) (ALSO ORDER (2) AT186161) (SUB FOR TH109771, AT154712 OR 4358588)

45шт.

AT186162

BUSHING

(USE WITH 9202848) (ALSO ORDER (2) AT186161) (SUB FOR TH109771, AT154712 OR 4358588)

50шт.

12

4145372

PIN

(USE WITH TH102363 OR TH112104) (SUB FOR TH102368)

45шт.

4145372

PIN

(USE WITH 9202848) (SUB FOR TH102368)

50шт.

AT174860

PIN FASTENER

(SUB FOR AT166672 OR TH102368)

ARшт.

13

2030005

OPEN CENTER 3 BAR SHOE

600 MM (24") (SUB FOR TH102377)

46шт.

2017550

OPEN CENTER 3 BAR SHOE

800 MM (32") (SUB FOR TH102496)

46шт.

14

4145375

BOLT

M20 X 65, (SUB FOR TH102375)

184шт.

15

T209259

SNAP RING

(USE WITH TH112104 OR 9202848) (SUB FOR TH109769 OR AT174863)

1шт.

16

PIN & BUSHING KIT

(FOR 790LT 50 LINK CHAIN - ALSO ORDER (4) TH102368, (4) AT174857, AND (8) AT160464) ( AT170092 NO LONGER AVAILABLE FOR SERVICE - SUB AT187185)

1шт.

17

TRACK CHAIN W/O SHOES

( 9202848 NO LONGER AVAILABLE) (REPLACED BY AT311612) (COMPLETE) (REMOVE SURPLUS LINKS AS REQUIRED) (SUB FOR TH102363, TH112104, TH109773 OR AT154855) (ALSO ORDER (204) 4255637 AND (204) 4255638)

1шт.
