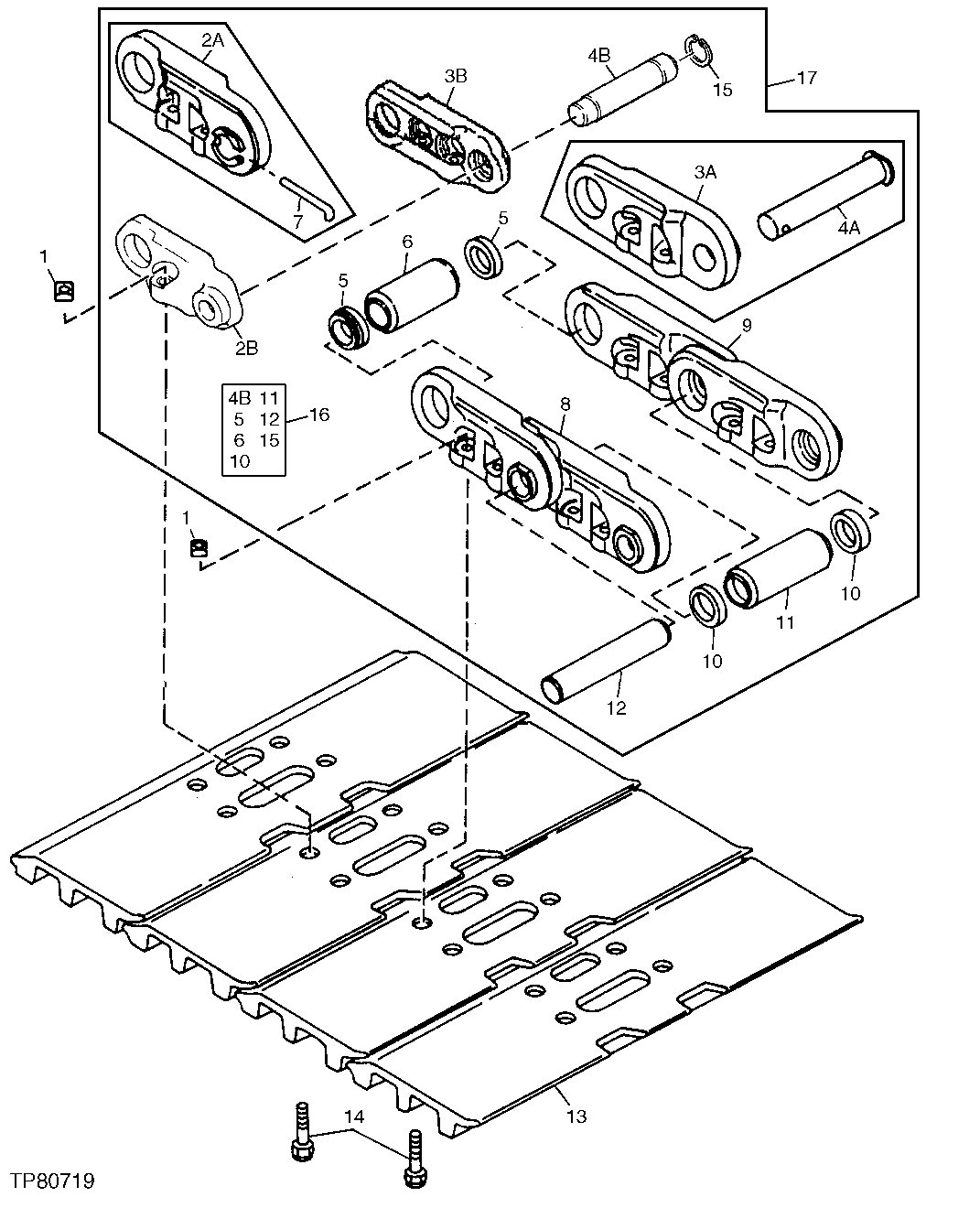

Запчасти John Deere 90 8 - TRACK CHAIN, 792 130 - TRACKS 1

1

4067232

NUT

(USE WITH 9180909 TRACK LINK ASSEMBLY) (SUB FOR TH102376)

184шт.

3060205

NUT

(USE WITH 9180909 TRACK LINK ASSEMBLY) (SUB FOR T144338)

184шт.

2A

AT159076

LINK

MASTER (NO LONGER AVAILABLE) (SUB FOR 4158962) (USE WITH AT73144, TH111227 AND (2) 3060205)

1шт.

2B

AT159076

LINK

MASTER, (SUB FOR 4158962 OR TH111100) (ALSO ORDER (2) 3060205, AT73144 AND TH111227)

1шт.

3A

AT159076

LINK

MASTER (NO LONGER AVAILABLE) (SUB FOR 4158962) (USE WITH AT73144, TH111227 AND 3060205)

1шт.

3B

AT159077

LINK

MASTER, (SUB FOR TH103164 OR 4186652) (ALSO ORDER AT159076, AT159078, (4) 3060205, AT159080)

1шт.

4A

AT159076

LINK

MASTER (NO LONGER AVAILABLE) (SUB FOR 4067231) (SUB FOR 4158962) (SUB AT159077, AT159078, AT159080, TH111227 AND 3060205)

1шт.

4B

AT159078

MASTER TRACK PIN

(SUB FOR 4067231 OR 4186651) (ALSO ORDER AT159076, AT159077, TH111227, AT159080 AND (4) 3060205)

1шт.

5

AT159079

BUSHING

MASTER, (SUB FOR TH103170 OR TH111282)

2шт.

6

AT159080

BUSHING

45.150 X 66.550 X 148.800 MM (1.778" X 2.620" X 5.858") MASTER, (SUB FOR 4143723) (ALSO ORDER AT159076, AT159077, AT159078 AND (4) 3060205)

1шт.

7

TH103171

PIN FASTENER

(NO LONGER AVAILABLE) (USE WITH 4067231)

1шт.

8

AT159076

LINK

(SUB FOR TH103163 OR TH111100) (ALSO ORDER (2) 3060205)

46шт.

9

AT159075

LINK

(SUB FOR TH103162 OR TH111099) (ALSO ORDER (2) 3060205)

49шт.

10

4350562

SEAL

(SUB FOR TH103172 OR TH111278) (SUB AT250019) (SUB FOR AT171645)

98шт.

11

TH103167

BUSHING

(K2) (SUB FOR AT206049)

45шт.

12

AT130913

PIN FASTENER

44.450 X 245 MM (1-3/4" X 9.646") (K2) (SUB FOR TH103166)

49шт.

AT174860

PIN FASTENER

(SUB FOR AT154753 OR AT166672)

ARшт.

13

2017537

OPEN CENTER 3 BAR SHOE

WITH 600 MM (24") (SUB FOR TH103174)

46шт.

2016578

OPEN CENTER 3 BAR SHOE

WITH 800 MM (32") (SUB FOR TH103265)

46шт.

14

4143721

BOLT

(SUB FOR TH103173)

184шт.

15

TH111227

SNAP RING

(K2)

1шт.

16

AT187186

PIN & BUSHING KIT

(USE IF AVAILABLE) (FOR 792LT 49 LINK CHAIN) (SUB FOR AT170093) (ALSO ORDER (3) TH103167, (4) AT130913 AND (6) AT130913) (SUB AT187186)

1шт.

AT187186

PIN & BUSHING KIT

(ALSO ORDER (3) TH103167, (4) AT130913 AND (6) AT171645) (SUB FOR AT170093)

1шт.

17

9180909

TRACK CHAIN W/O SHOES

(COMPLETE ASSEMBLY) (REMOVE SURPLUS LINKS AS REQUIRED) (USE IF AVAILBLE) (ALSO ORDER (200) 3060205) (SUB FOR 9077838 OR 9071587 OR AT186168 OR AT159074)

1шт.

9180909

TRACK CHAIN W/O SHOES

(COMPLETE ASSEMBLY) (REMOVE SURPLUS LINKS AS REQUIRED) (ALSO ORDER (184) 3060205) (SUB FOR 9077838 OR 9071587 OR AT159074 OR AT186168)

1шт.
