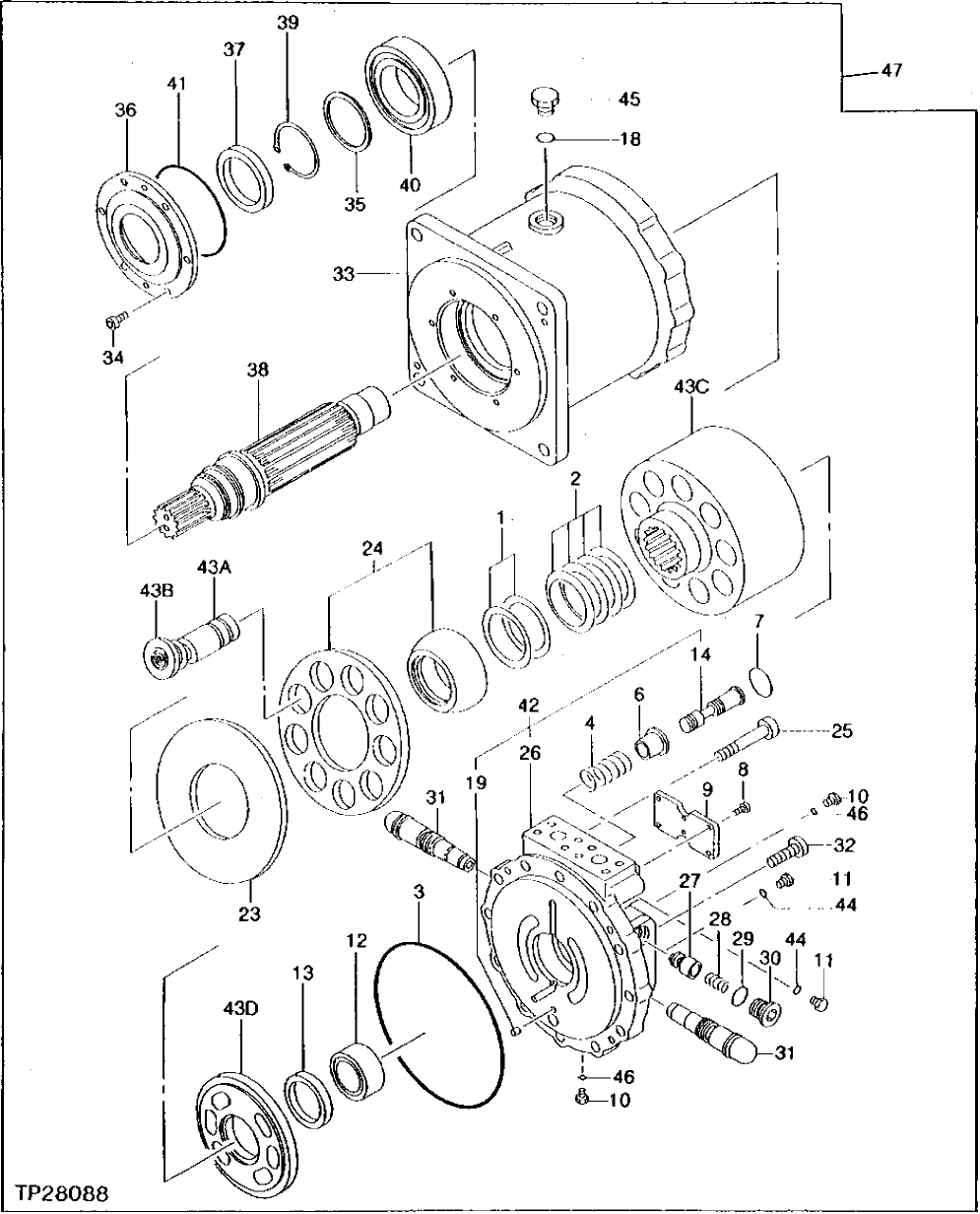

Запчасти John Deere 90 4 - SWING MOTOR (790 SERIAL NO. 003131- )(792 SERIAL NO. 000201- ) 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

0222810

SHIM

(SUB FOR TH102631)

1шт.

2

0222809

DISK SPRING

(SUB FOR TH102630)

4шт.

3

4S00122

O-RING

(SUB FOR 0217119, TH102653)

1шт.

4

0236010

SPRING

(SUB FOR TH102639)

2шт.

6

0236007

SPRING

(SUB FOR TH102636)

2шт.

7

A811045

O-RING

(SUB FOR T74492)

2шт.

8

19M7660

SCREW

M8 X 20, (SUB FOR TH102643)

6шт.

19M7660

SCREW

M8 X 20, (SUB FOR TH104558 OR TH102643)

6шт.

9

0236008

COVER

(SUB FOR TH102637)

1шт.

10

4515019

FITTING PLUG

(SUB FOR TH104660)

5шт.

11

0236014

FITTING PLUG

(SUB FOR TH102650)

3шт.

12

TH102646

NEEDLE BEARING

1шт.

13

0236019

RING

(SUB FOR TH108169)

1шт.

14

SPOOL

2шт.

18

4506424

O-RING

(SUB FOR TH100055)

2шт.

19

FITTING PLUG

1шт.

23

0222811

PLATE

(SUB FOR TH102632)

1шт.

24

0222803

RETAINER

(SUB FOR TH102626)

1шт.

25

19M8564

SCREW

M16 X 110, (SUB FOR TH102640)

3шт.

26

GEAR CASE

1шт.

27

0236006

PLUNGER

(SUB FOR TH102635)

2шт.

28

0236009

SPRING

(SUB FOR TH102638)

2шт.

29

AT264347

O-RING

(SUB FOR TH100136, 4506428)

2шт.

30

15M7027

DRAIN PLUG

(SUB FOR TH102651)

2шт.

31

0235901

RELIEF VALVE

(SUB FOR TH102623)

2шт.

0236001

RELIEF VALVE

(SUB FOR TH103286)

2шт.

0177007

BACK-UP RING

(SUB FOR TH112007) (NOT ILLUSTRATED) (O.D. OF RELIEF VALVE)

1шт.

A811025

O-RING

(SUB FOR TH112260) (SUB FOR TH103950) (NOT ILLUSTRATED) (O.D. OF RELIEF VALVE)

1шт.

CH11570

O-RING

(SUB FOR AT123487) (NOT ILLUSTRATED) (INTERNAL RELIEF VALVE)

1шт.

R32588

BACK-UP RING

(NOT ILLUSTRATED) (INTERNAL RELIEF VALVE)

1шт.

32

0217113

BOLT

(SUB FOR TH102641)

9шт.

33

HOUSING

( TH102633 NO LONGER AVAILABLE)

1шт.

HOUSING

( TH103287 NO LONGER AVAILABLE)

1шт.

34

19M8440

SCREW

M10 X 25, (SUB FOR TH102642)

6шт.

35

0222808

SPACER

(SUB FOR TH102629)

1шт.

36

0222813

COVER

(SUB FOR TH102634)

1шт.

37

4215627

SEAL

(SUB FOR TH104663) (SUB FOR TH102656)

1шт.

38

0236004

SHAFT

(SUB FOR TH102628)

1шт.

39

991351

SNAP RING

(SUB FOR TH102644)

1шт.

40

TH102645

CYLINDRICAL ROLLER BEARING

1шт.

41

0236016

O-RING

(SUB FOR TH102652)

1шт.

42

HOUSING

( TH102627 NO LONGER AVAILABLE) ( TH108168 NO LONGER AVAILABLE)

1шт.

HOUSING

( TH102627 NO LONGER AVAILABLE) ( TH108168 NO LONGER AVAILABLE)

1шт.

43

0236020

CYLINDER

(SUB FOR TH102625) (SUB FOR TH108167) (INCLUDES ITEMS 43A, 43B, 43C AND 43D) (NOT ILLUSTRATED)

1шт.

0236020

CYLINDER

(SUB FOR TH102625) (SUB FOR TH108167) (INCLUDES ITEMS 43A, 43B, 43C AND 43D) (NOT ILLUSTRATED)

1шт.

43A

PISTON

(SUB TH108167)

9шт.

43B

SHOE

(SUB TH108167)

9шт.

43C

CYLINDER

(SUB TH108167)

1шт.

43D

PLATE

(SUB TH108167)

1шт.

44

M800650

PACKING

3шт.

45

0195165

PLUG

(SUB FOR TH102648)

2шт.

46

E56086

O-RING

5шт.

E56086

O-RING

5шт.

47

4144536EX

HYDRAULIC MOTOR

(SUB FOR TH101872) (SUB FOR AT217329) (REMANUFACTURED)

1шт.

4143908

HYDRAULIC MOTOR

(REMANUFACTURED) (SUB FOR TH102899, AT217341)

1шт.
