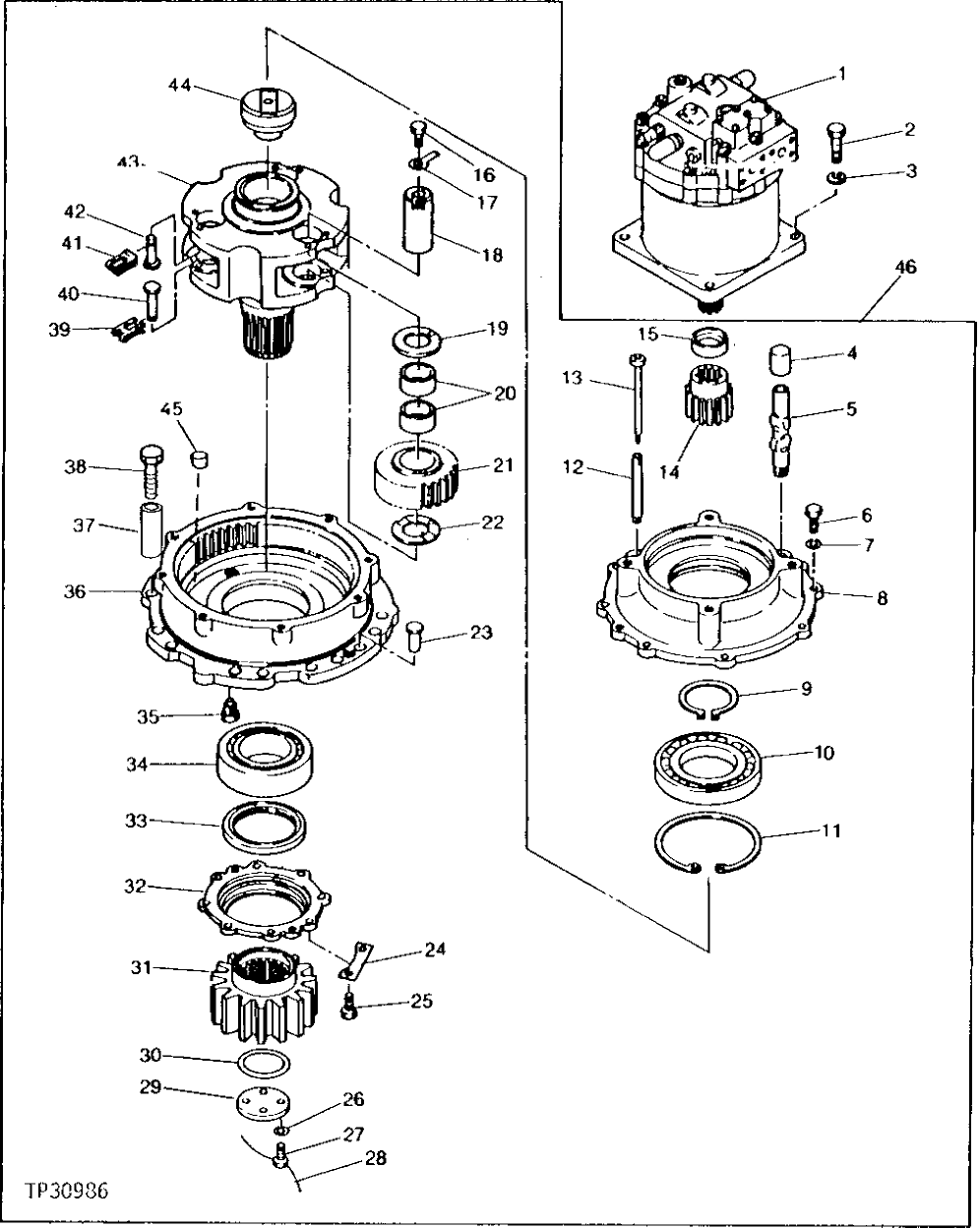

Запчасти John Deere 90 2 - SWING DRIVE (792) 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

4143908

HYDRAULIC MOTOR

(REMANUFACTURED) (SUB FOR TH102899, AT217341)

1шт.

2

19M8639

CAP SCREW

M20 X 70, (SUB FOR TH100504) (SUB FOR 19M8387)

4шт.

3

N231749

WASHER

(SUB FOR T33089)

4шт.

4

4078070

CAP

(SUB FOR TH101867)

1шт.

5

4078071

LINE

(SUB FOR TH101866)

1шт.

6

TH102902

BOLT

8шт.

7

12H294

LOCK WASHER

5/8", (SUB FOR TH100466)

8шт.

8

COVER

( TH102901 NO LONGER AVAILABLE)

1шт.

9

4511549

SNAP RING

(SUB FOR TH101851)

1шт.

10

TH102905

CYLINDRICAL ROLLER BEARING

1шт.

11

4081167

SNAP RING

(SUB FOR TH101853)

1шт.

12

4153322

LINE

(SUB FOR TH102922)

1шт.

13

9714605

LEVEL GAUGE

(SUB FOR TH102921)

1шт.

14

3025296

SUN GEAR

(SUB FOR TH102908)

1шт.

15

4162226

BUSHING

(SUB FOR TH102913)

1шт.

16

19M8011

CAP SCREW

M12 X 30

6шт.

17

A590412

WASHER

(SUB FOR TH101846)

6шт.

18

8027085

SHAFT

(SUB FOR TH102907)

3шт.

19

4145090

WASHER

(SUB FOR TH102911)

3шт.

20

4096307

NEEDLE BEARING

(SUB FOR TH102912)

6шт.

21

3016370

PLANET PINION

(SUB FOR TH102910)

3шт.

22

4145090

WASHER

(SUB FOR TH102911)

3шт.

23

4080398

PIN FASTENER

(SUB FOR TH101880)

2шт.

24

4096301

LOCK WASHER

(SUB FOR TH102916)

4шт.

25

M111432

GASKET

(SUB FOR TH102915)

8шт.

26

12H294

LOCK WASHER

5/8", (SUB FOR TH100466)

4шт.

27

4145089

BOLT

(SUB FOR TH102919)

4шт.

28

WIRE

(MAKE FROM SIXTEEN GAUGE WIRE, CUT TO LENGTH)

2шт.

29

4096300

DISK

(SUB FOR TH102918) (75 MM BOLT CIRCLE DIAMETER)

1шт.

30

4508195

O-RING

(SUB FOR TH101857)

1шт.

31

2017316

GEAR

(SUB FOR TH102917)

1шт.

32

3016368

COVER

(SUB FOR TH102914)

1шт.

33

4144554

SEAL

(SUB FOR TH101879)

1шт.

34

TH102906

SPHERICAL ROLLER BEARING

1шт.

35

960339

FITTING PLUG

(SUB FOR TH101869)

1шт.

36

1003979

HOUSING

(SUB FOR TH102903)

1шт.

37

4094917

BUSHING

(SUB FOR TH102926)

12шт.

38

19M7734

CAP SCREW

(SUB FOR TH102925)

12шт.

39

4139024

CLIP

(SUB FOR TH101849)

5шт.

40

TH102924

PIN FASTENER

3шт.

41

4139024

CLIP

(SUB FOR TH101849)

1шт.

42

4145088

PIN FASTENER

(SUB FOR TH102923)

3шт.

43

1007153

PLANET PINION CARRIER

(SUB FOR TH102904)

1шт.

44

4114644

BUSHING

(SUB FOR TH102909)

1шт.

45

4156390

PLUG

(SUB FOR TH102928)

1шт.

46

9049194

GEAR

(SUB FOR TH102900)

1шт.
