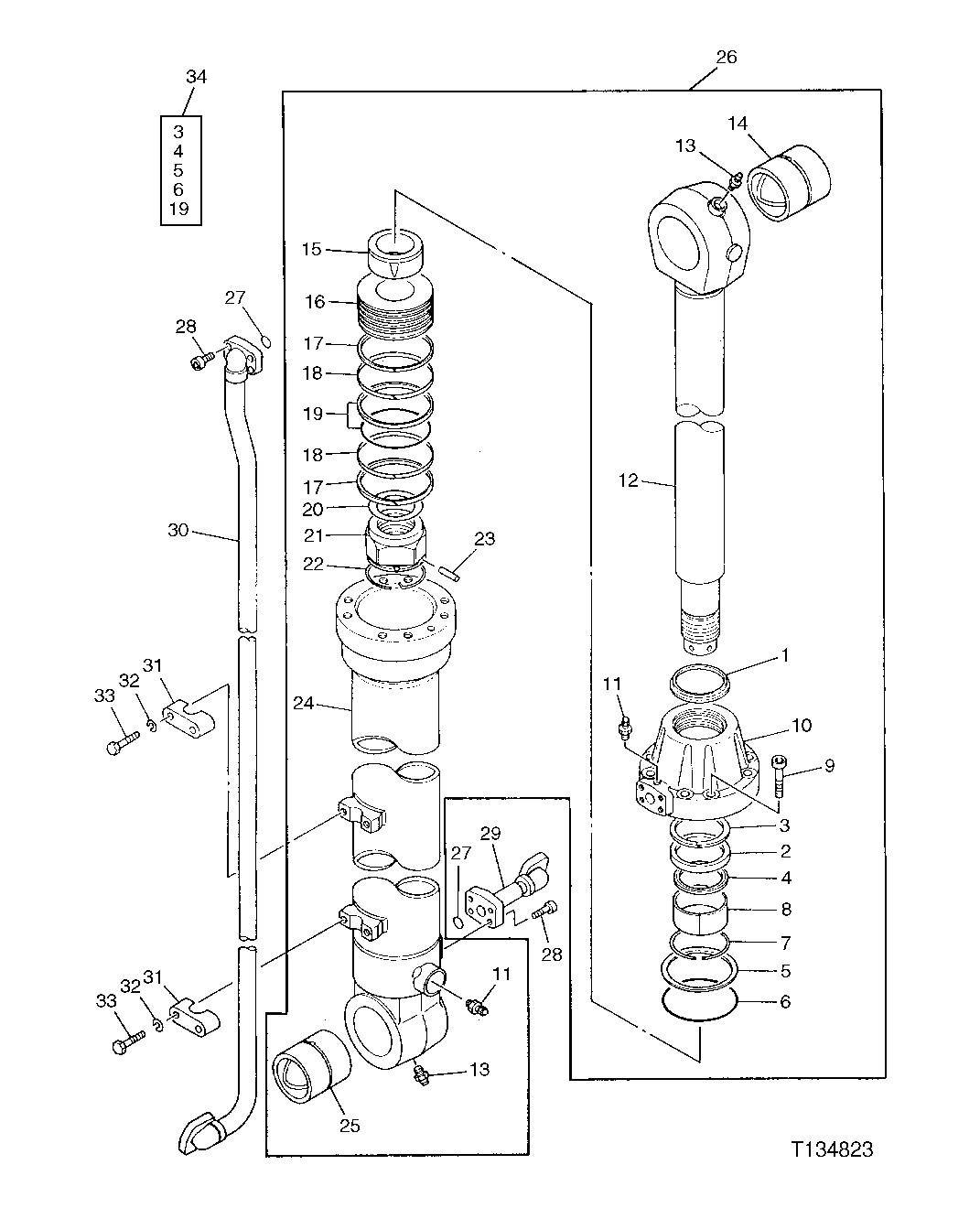

Запчасти John Deere 90 20 - BUCKET CYLINDER (792) 3360 - EXCAVATOR 33

1

SEAL

( TH102792 NO LONGER AVAILABLE)

1шт.

2

PACKING

( TH102790 NO LONGER AVAILABLE)

1шт.

3

AT264349

BACK-UP RING

(A) (SUB FOR TH102791)

1шт.

4

0151902

O-RING

(A) (SUB FOR TH102789)

1шт.

5

TH102823

BACK-UP RING

(A)

1шт.

6

TH102822

O-RING

(A)

1шт.

7

0236905

SNAP RING

(SUB FOR TH102766)

1шт.

8

0236904

BUSHING

(SUB FOR TH102765)

1шт.

9

19M8630

SCREW

(SUB FOR TH102814)

1шт.

10

0237504

HYDR. CYLINDER ROD GUIDE

(SUB FOR TH103352)

1шт.

11

0237418

BLEED VALVE

(SUB FOR TH102787)

2шт.

12

0237510

ROD

(BUSHING NOT INCLUDED) (SUB FOR TH103350)

1шт.

13

TH100074

LUBRICATION FITTING

2шт.

14

3036659

BUSHING

(SUB FOR TH103351) (ALSO ORDER (2) TH102441) (SUB FOR TH111167)

1шт.

15

0237505

ISOLATOR

(SUB FOR TH103353)

1шт.

16

0237506

PISTON

(SUB FOR TH103354)

1шт.

17

TH102826

WEAR RING

2шт.

18

4S00147

RING

(SUB FOR TH102825)

2шт.

19

TH102824

SEAL

(A)

1шт.

20

0236909

SHIM

(SUB FOR TH102772)

1шт.

21

0236908

NUT

(SUB FOR TH102769)

1шт.

22

0237412

RING

(SUB FOR TH102771)

1шт.

23

0237411

PIN

(SUB FOR TH102770)

1шт.

24

0237509

HYDRAULIC CYLINDER BARREL

(SUB FOR TH103349)

1шт.

25

0237404

BUSHING

(ALSO ORDER (2) TH102446) (SUB FOR TH102831)

1шт.

26

AT182466

CYLINDER

(REMANUFACTURED) (SUB FOR TH103242 OR TH106314)

1шт.

27

AT264348

O-RING

(SUB FOR TH102788)

1шт.

28

19M8395

SCREW

8шт.

29

0237508

FLANGE FITTING

(SUB FOR TH103356)

1шт.

30

0237507

OIL LINE

(SUB FOR TH103355)

1шт.

31

0237416

HALF CLAMP

(SUB FOR TH102777)

2шт.

32

12M7058

LOCK WASHER

(SUB FOR 12M7067)

4шт.

33

19M7363

CAP SCREW

4шт.

34

AT192096

SEAL KIT

(INCLUDES PARTS MARKED (A)) (ALSO ORDER (2) 4S00147 AND (2) TH102826)

1шт.
