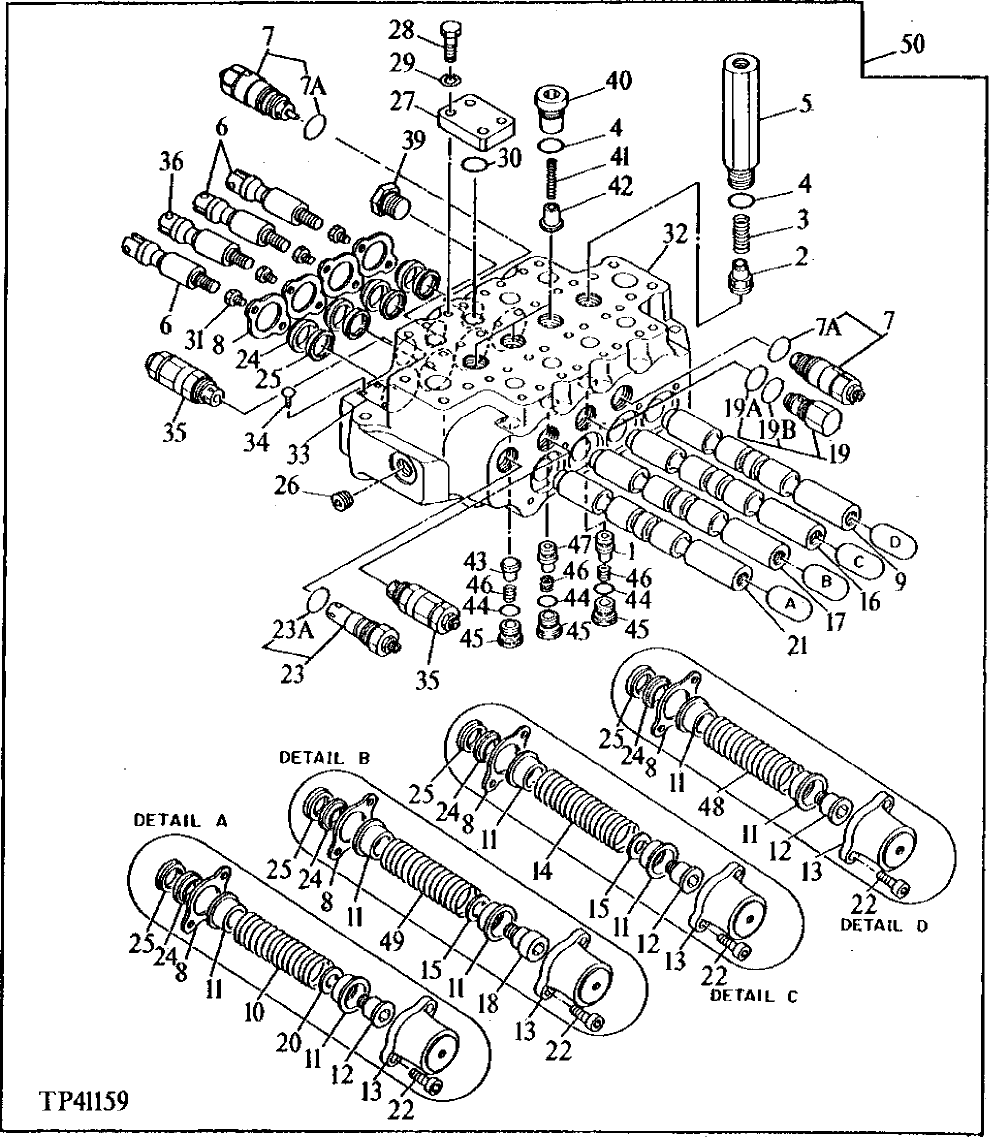

Запчасти John Deere 90 16 - LEFT CONTROL VALVE 3360 - EXCAVATOR 33

1

0224419

POPPET

(SUB FOR TH102756)

1шт.

2

0224412

POPPET

(SUB FOR TH102748)

1шт.

3

0224413

SPRING

(SUB FOR TH102749)

1шт.

4

U17409

O-RING

(SUB FOR TH102730)

4шт.

5

0224414

ADAPTER FITTING

(SUB FOR TH102750)

1шт.

6

0224429

CLEVIS

(SUB FOR TH102742) LEFT TRAVEL, ARM AND SWING

3шт.

7

4156687

PRESSURE RELIEF VALVE

(SUB FOR TH102739) ARM

2шт.

7A

U12547

O-RING

1шт.

8

0125005

PLATE

(SUB FOR TH102720)

8шт.

9

SPOOL

(SUB 4145218 OR 4145259)

1шт.

10

0224406

SPRING

(SUB FOR TH102723) (SWING)

1шт.

11

0224405

RETAINER

(SUB FOR TH102722)

8шт.

12

0224403

SCREW

(SUB FOR TH102721)

3шт.

13

0224407

CAP

(SUB FOR TH102725)

4шт.

14

TH102759

SPRING

(ARM I)

1шт.

15

0224420

WASHER

(SUB FOR TH102733)

2шт.

16

SPOOL

(SUB 4145218 OR 4145259)

1шт.

17

SPOOL

(SUB 4145218 OR 4145259)

1шт.

18

0224404

SCREW

(SUB FOR TH102747)

1шт.

19

0224427

FLOW CONTROL HYD. VALVE

(SUB FOR TH102740) BOOM

1шт.

19A

U12547

O-RING

1шт.

19B

4506418

O-RING

(SUB FOR U46489)

1шт.

20

0224301

WASHER

(SUB FOR TH102734)

1шт.

21

SPOOL

(SUB 4145218 OR 4145259)

1шт.

22

19M8337

SCREW

M10 X 30, (SUB FOR TH102726)

8шт.

23

4163621

RELIEF VALVE

(SUB FOR TH102738)

1шт.

4163758

PRESSURE RELIEF VALVE

(SUB FOR TH103298)

1шт.

23A

U12547

O-RING

1шт.

24

0224402

SEAL

(SUB FOR TH102719) WIPER (BOTH ENDS OF SPOOL)

8шт.

25

0224401

SEAL

(SUB FOR TH102718) (BOTH ENDS OF SPOOL)

8шт.

26

0113504

PLUG

(SUB FOR TH102732)

1шт.

27

0224421

PLATE

(SUB FOR TH102735)

1шт.

28

J901032

SCREW

(SUB FOR TH102737) (SUB FOR TH102040)

4шт.

29

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

30

A4730R

O-RING

(SUB FOR TH102736)

1шт.

31

19M7557

CAP SCREW

M10 X 16, (SUB FOR TH102727) (SUB FOR 19M7379)

8шт.

32

HOUSING

(SUB 4145218 OR 4145259)

1шт.

33

PLATE

(SUB 4145218 OR 4145259)

1шт.

34

SCREW

(SUB 4145218 OR 4145259)

4шт.

35

4163622

RELIEF VALVE

(SUB FOR TH102757) SWING

2шт.

36

0224429

CLEVIS

SWING, (SUB FOR TH103301, THIS APPLICATION) (SUB FOR TH102742)

1шт.

39

0236102

FITTING PLUG

(SUB FOR TH102760)

1шт.

40

0224411

FITTING PLUG

(SUB FOR TH102731) LIFT CHECK

3шт.

41

0224410

SPRING

(SUB FOR TH102729)

3шт.

42

0111711

POPPET

(SUB FOR TH102728)

3шт.

43

0224415

POPPET

(SUB FOR TH102751)

1шт.

44

R26906

O-RING

(SUB FOR TH102753)

3шт.

45

0224417

FITTING PLUG

(SUB FOR TH102754)

3шт.

46

0224416

SPRING

(SUB FOR TH102752)

3шт.

47

0224418

POPPET

(SUB FOR TH102755)

1шт.

48

TH102724

SPRING

(LEFT TRAVEL)

1шт.

49

0224406

SPRING

(SUB FOR TH102723) (LEFT TRAVEL, BOOM)

1шт.

0236202

SPRING

(SUB FOR TH103302) (BOOM II)

1шт.

50

4145218

HYD ACTUATED CONTROL VALVE

(SUB FOR TH101942 AND AT186749)

1шт.

4145259

HYD ACTUATED CONTROL VALVE

(SUB FOR TH102963 AND AT186750)

1шт.
