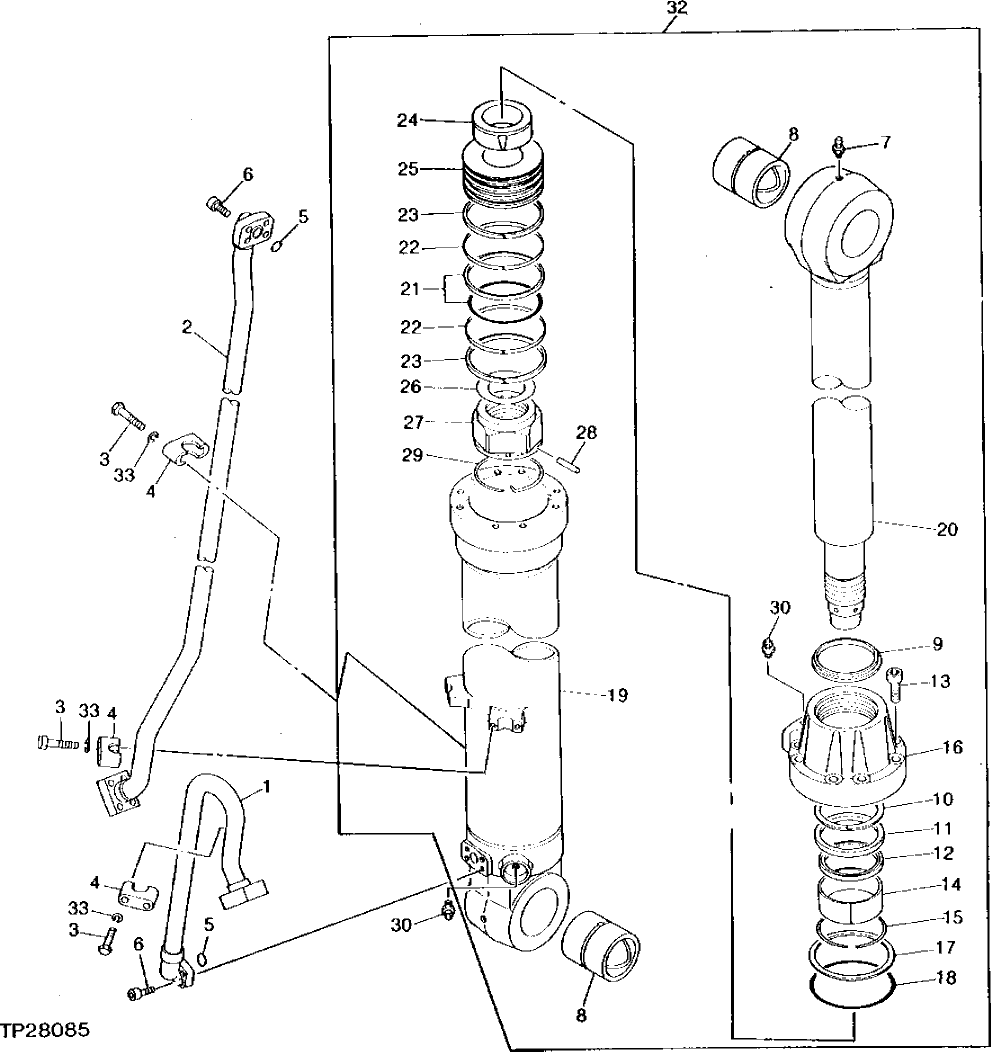

Запчасти John Deere 90 14 - ARM CYLINDER 3360 - EXCAVATOR 33

1

0237213

OIL LINE

(SUB FOR TH102815)

1шт.

0237307

OIL LINE

(SUB FOR TH103336)

1шт.

2

0237214

OIL LINE

(SUB FOR TH102816)

1шт.

0237308

OIL LINE

(SUB FOR TH103337)

1шт.

3

19M7363

CAP SCREW

M12 X 60, (SUB FOR 19M7273)

6шт.

4

0237416

HALF CLAMP

(SUB FOR TH102777)

3шт.

5

AT264348

O-RING

(SUB FOR TH102788)

2шт.

6

19M8395

SCREW

M12 X 40, (SUB FOR TH101984)

8шт.

7

TH100074

LUBRICATION FITTING

1шт.

8

3031788

BUSHING

(SUB FOR TH102817) (SUB FOR TH110045) (ALSO ORDER (4) TH102446 DUST SEALS)

2шт.

0237404

BUSHING

(SUB FOR TH102831) (ALSO ORDER (4) TH102445 DUST SEALS)

2шт.

9

0492216

SEAL

(SUB FOR TH102821) (K1) (USE IF AVAILABLE)

1шт.

0492216

SEAL

(SUB FOR TH102821) (SUB FOR AT176735) (K1)

1шт.

4S00077

BACK-UP RING

(SUB FOR TH103341) (K2)

1шт.

10

0237215

BACK-UP RING

(SUB FOR TH102820) (K1)

1шт.

4S00077

BACK-UP RING

(SUB FOR TH103340) (K2)

1шт.

11

0127408

PACKING

(SUB FOR TH102819) (K1)

1шт.

4S00095

RING

(K2) (SUB FOR TH103339)

1шт.

12

0151703

RING

(SUB FOR TH102818) (K1)

1шт.

0165702

RING

(SUB FOR TH103338) (K2)

1шт.

13

19M8630

SCREW

M24 X 80, (SUB FOR TH102814)

8шт.

14

0237204

BUSHING

(SUB FOR TH102806)

1шт.

0237304

BUSHING

(SUB FOR TH103332)

1шт.

15

0237205

RING

(SUB FOR TH102807)

1шт.

0161503

SNAP RING

(SUB FOR TH103333)

1шт.

16

0237203

HYDR. CYLINDER ROD GUIDE

(SUB FOR TH102805)

1шт.

0237303

HYDR. CYLINDER ROD GUIDE

(SUB FOR TH103331)

1шт.

17

TH102823

BACK-UP RING

(K1)

1шт.

0237311

BACK-UP RING

(SUB FOR TH103343) (K2)

1шт.

18

TH102822

O-RING

(K1)

1шт.

4007534

O-RING

(K2) (SUB FOR TH103342)

1шт.

19

0237221

HYDRAULIC CYLINDER BARREL

(SUB FOR TH102803)

1шт.

0237315

HYDRAULIC CYLINDER BARREL

(SUB FOR TH103329)

1шт.

20

0237222

ROD

(SUB FOR TH102804)

1шт.

0237316

ROD

(SUB FOR TH103330)

1шт.

21

TH102824

SEAL

(K1)

1шт.

0237312

SEAL

(SUB FOR TH103344) (K2)

1шт.

22

4S00147

RING

(SUB FOR TH102825)

2шт.

TH103345

WEAR RING

2шт.

23

TH102826

WEAR RING

2шт.

0237314

WEAR RING

(SUB FOR TH103346)

2шт.

24

0237206

CUSHION

(SUB FOR TH102808)

1шт.

0237305

CUSHION

(SUB FOR TH103334)

1шт.

25

0237207

PISTON

(SUB FOR TH102809)

1шт.

0237306

PISTON

(SUB FOR TH103335)

1шт.

26

0237211

SHIM

(SUB FOR TH102813)

1шт.

27

0237208

NUT

(SUB FOR TH102810)

1шт.

28

0237209

PIN

(SUB FOR TH102811)

1шт.

29

0237210

RING

(SUB FOR TH102812)

1шт.

30

0237418

BLEED VALVE

(SUB FOR TH102787)

2шт.

32

AT264192

HYDRAULIC CYLINDER

(SUB FOR TH106316)

1шт.

4190500

HYDRAULIC CYLINDER

(SUB FOR TH106313, AT264195)

1шт.

33

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

6шт.

34

TH102827

SEAL KIT

(ALSO ORDER (2) 4S00147 AND (2) TH102826) (NOT ILLUSTRATED)

1шт.

35

TH103347

SEAL KIT

(ALSO ORDER (2) TH103345 AND (2) 0237314) (NOT ILLUSTRATED)

1шт.
