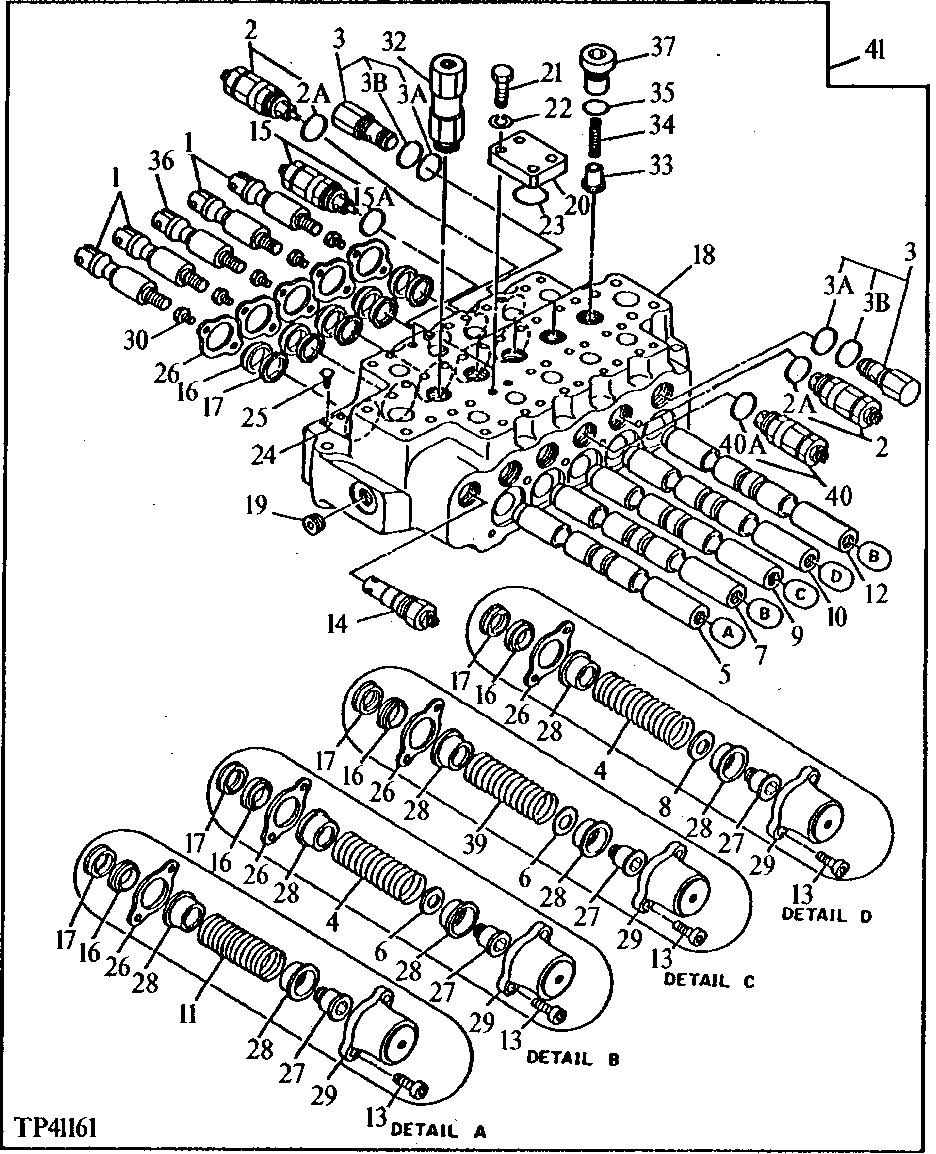

Запчасти John Deere 90 10 - RIGHT CONTROL VALVE 3360 - EXCAVATOR 33

1

0224429

CLEVIS

(SUB FOR TH102742)

4шт.

2

4156689

PRESSURE RELIEF VALVE

(SUB FOR TH102744) BUCKET OR RIGHT BOOM VALVE

2шт.

2A

U12547

O-RING

1шт.

3

0224427

FLOW CONTROL HYD. VALVE

(SUB FOR TH102740) RIGHT ARM VALVE, ANTI-CAVITATION

2шт.

3A

U12547

O-RING

1шт.

3B

4506418

O-RING

(SUB FOR U46489)

1шт.

4

0224406

SPRING

(SUB FOR TH102723) (ARM II, BUCKET AND AUXILIARY)

3шт.

5

SPOOL

(SUB 4145258)

1шт.

6

0224420

WASHER

(SUB FOR TH102733) BUCKET

3шт.

7

SPOOL

(SUB 4145258)

1шт.

8

0224301

WASHER

(SUB FOR TH102734)

1шт.

9

SPOOL

(SUB 4145258)

1шт.

10

SPOOL

(SUB 4145258)

1шт.

11

TH102724

SPRING

PROPEL VALVE OR TRAVEL VALVE

1шт.

12

SPOOL

(SUB 4145258)

1шт.

13

19M8337

SCREW

M10 X 30, (SUB FOR TH102726)

10шт.

14

4163758

PRESSURE RELIEF VALVE

(SUB FOR TH103298) SYSTEM

1шт.

15

4156687

PRESSURE RELIEF VALVE

(SUB FOR TH102739) RIGHT BOOM

1шт.

15A

U12547

O-RING

1шт.

16

0224402

SEAL

(SUB FOR TH102719) WIPER (BOTH ENDS OF SPOOL)

10шт.

17

0224401

SEAL

(SUB FOR TH102718) (BOTH ENDS OF SPOOL)

10шт.

18

HOUSING

(SUB 4145258)

1шт.

19

0113504

PLUG

(SUB FOR TH102732)

1шт.

20

0224421

PLATE

(SUB FOR TH102735)

2шт.

21

J901032

SCREW

(SUB FOR TH102737) (SUB FOR TH102040)

8шт.

22

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

8шт.

23

A4730R

O-RING

(SUB FOR TH102736)

2шт.

24

PLATE

(SUB 4145258)

1шт.

25

SCREW

(SUB 4145258)

4шт.

26

0125005

PLATE

(SUB FOR TH102720)

10шт.

27

0224403

SCREW

(SUB FOR TH102721)

5шт.

28

0224405

RETAINER

(SUB FOR TH102722)

10шт.

29

0224407

CAP

(SUB FOR TH102725)

5шт.

30

19M7557

CAP SCREW

M10 X 16, (SUB FOR TH102727) (SUB FOR 19M7379)

10шт.

32

0224302

CHECK VALVE

(SUB FOR TH102741)

1шт.

33

0111711

POPPET

(SUB FOR TH102728)

4шт.

34

0224410

SPRING

(SUB FOR TH102729)

4шт.

35

U17409

O-RING

(SUB FOR TH102730)

4шт.

36

0224303

CLEVIS

(SUB FOR TH102743)

1шт.

37

0224411

FITTING PLUG

(SUB FOR TH102731) LIFT CHECK

4шт.

39

0236401

SPRING

(SUB FOR TH103297) RIGHT BOOM

1шт.

40

4156688

RELIEF VALVE

(SUB FOR TH103299) RIGHT BOOM

1шт.

40A

U12547

O-RING

1шт.

41

4145258

HYD ACTUATED CONTROL VALVE

(SUB FOR TH102962 AND AT186099)

1шт.
