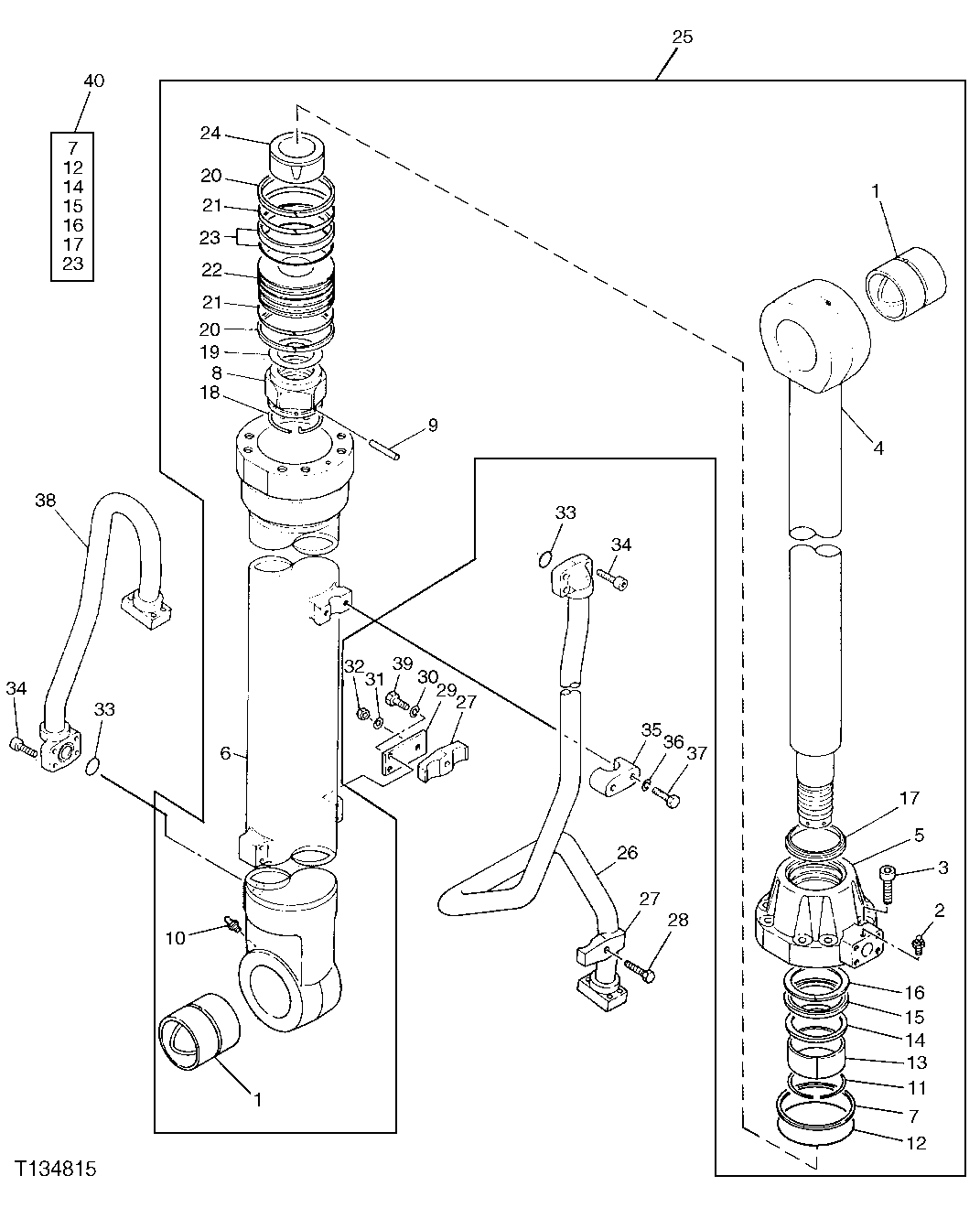

Запчасти John Deere 90 2 - LEFT BOOM CYLINDER (790) 3360 - EXCAVATOR 33

1

3054062

BUSHING

(SUB FOR TH102774) (ALSO ORDER (4) TH102445) (SUB FOR AT154689)

2шт.

2

0237418

BLEED VALVE

(SUB FOR TH102787)

1шт.

3

0224117

SCREW

(SUB FOR TH102773)

8шт.

4

0236922

ROD

(SUB FOR TH102763)

1шт.

5

0236903

HYDR. CYLINDER ROD GUIDE

(SUB FOR TH102764)

1шт.

6

0236921

HYDRAULIC CYLINDER BARREL

(SUB FOR TH102762)

1шт.

7

0208508

BACK-UP RING

(A) (SUB FOR TH102794)

1шт.

8

0236908

NUT

(SUB FOR TH102769)

1шт.

9

0237411

PIN

(SUB FOR TH102770)

1шт.

10

TH100074

LUBRICATION FITTING

1шт.

11

0236905

SNAP RING

(SUB FOR TH102766)

1шт.

12

TH102793

O-RING

(A)

1шт.

13

0236904

BUSHING

(SUB FOR TH102765)

1шт.

14

0151902

O-RING

(A) (SUB FOR TH102789)

1шт.

15

O-RING

( TH102790 NO LONGER AVAILABLE)

1шт.

16

AT264349

BACK-UP RING

(A) (SUB FOR TH102791)

1шт.

17

SEAL

( TH102792 NO LONGER AVAILABLE)

1шт.

18

0237412

RING

(SUB FOR TH102771)

1шт.

19

0236909

SHIM

(SUB FOR TH102772)

1шт.

20

TH102797

RING

2шт.

21

4S00146

RING

(SUB FOR 0224107) (SUB FOR TH102796)

2шт.

22

0236907

PISTON

(SUB FOR TH102768)

1шт.

23

TH102795

SEAL

(A)

1шт.

24

0236906

CUSHION

(SUB FOR TH102767)

1шт.

25

AT264212

HYDRAULIC CYLINDER

(SUB FOR TH106315)

1шт.

26

0237002

OIL LINE

(SUB FOR TH102801)

1шт.

27

0236915

HALF CLAMP

(SUB FOR TH102783)

2шт.

28

19M7291

CAP SCREW

1шт.

29

0236912

STRAP

(SUB FOR TH102780)

1шт.

30

12M7068

LOCK WASHER

2шт.

31

24M7085

WASHER

1шт.

32

14M7169

LOCK NUT

1шт.

33

AT264348

O-RING

(SUB FOR TH102788)

3шт.

34

19M8395

SCREW

8шт.

35

0237416

HALF CLAMP

(SUB FOR TH102777)

1шт.

36

12M7058

LOCK WASHER

(SUB FOR 12M7067)

2шт.

37

19M7363

CAP SCREW

(SUB FOR TH102798)

2шт.

38

TH102800

OIL LINE

1шт.

39

19M5827

CAP SCREW

2шт.

40

AT192076

SEAL KIT

(INCLUDES PARTS MARKED (A)) (SUB FOR TH102798)

1шт.
