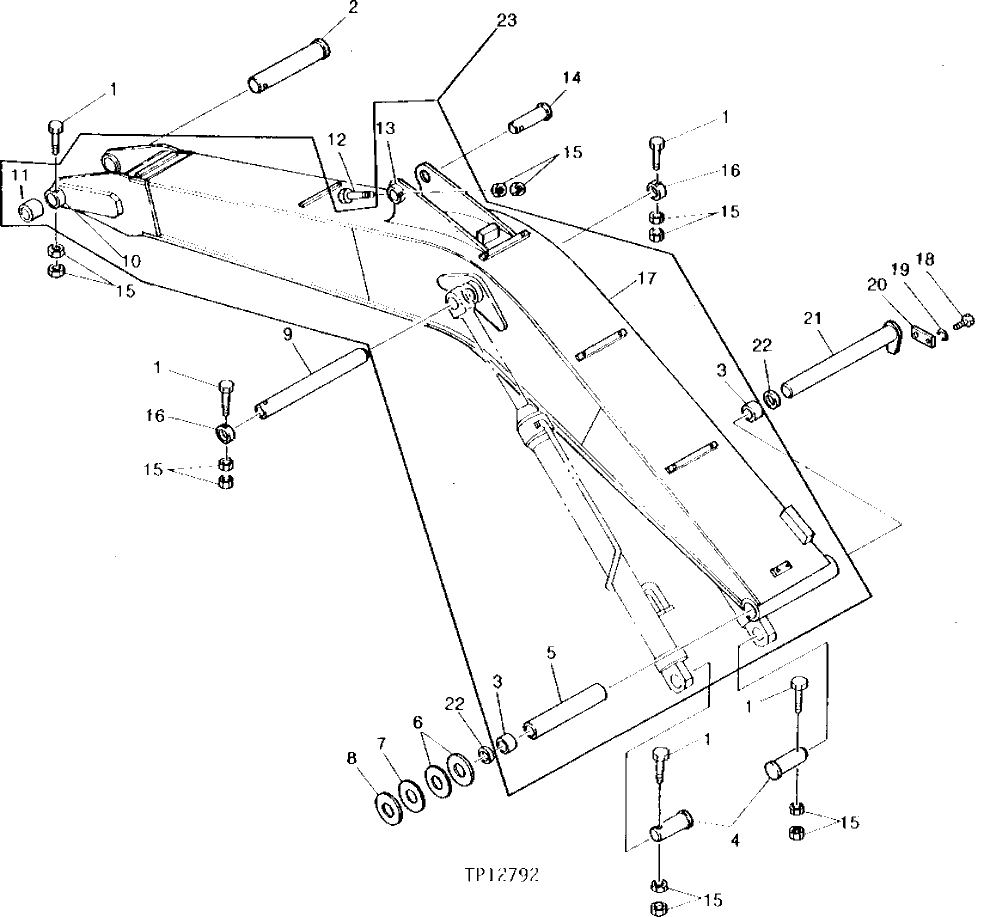

Запчасти John Deere 90 2 - BOOM 3344 - EXCAVATOR 33

1

19M8503

CAP SCREW

M20 X 160

5шт.

19M8100

CAP SCREW

M20 X 180, (SUB FOR TH103500)

5шт.

2

TH109796

DOWEL PIN

(SUB FOR TH105476)

1шт.

TH111179

PIN FASTENER

(SUB FOR TH105475)

1шт.

3

3039752

BUSHING

(SUB FOR TH102407) (SUB FOR TH109794)

2шт.

3039123

BUSHING

(SUB FOR TH103196) (SUB FOR TH111190)

2шт.

4

TH109395

PIN FASTENER

(SUB FOR TH102415)

2шт.

TH103201

PIN FASTENER

2шт.

5

4144319

SPACER

(SUB FOR TH102408)

1шт.

4143373

BUSHING

(SUB FOR TH103197)

1шт.

6

4144513

WASHER

(SUB FOR TH102423) 1.2 MM

2шт.

4143607

WASHER

1.2 MM, (SUB FOR TH103208)

2шт.

7

4144512

WASHER

2.3 MM, (SUB FOR TH102422)

1шт.

4143606

WASHER

2.3 MM, (SUB FOR TH103207)

1шт.

8

4144511

WASHER

3.2 MM, (SUB FOR TH102421)

1шт.

4143605

WASHER

3.2 MM, (SUB FOR TH103206)

1шт.

9

TH109795

DOWEL PIN

(SUB FOR TH102416)

1шт.

TH103202

PIN FASTENER

(I.D. 65 MM)

1шт.

10

TH102409

BUSHING

1шт.

11

TH103198

BUSHING

1шт.

12

19M8503

CAP SCREW

M20 X 160, (SUB FOR TH102420, THIS APPLICATION) (SUB FOR TH103499)

1шт.

13

4067719

PIVOT

(SUB FOR TH102410)

1шт.

TH102409

BUSHING

1шт.

14

TH109797

PIN

(SUB FOR TH102418)

1шт.

TH103204

PIN

1шт.

15

14M7277

NUT

M20

12шт.

16

TH102409

BUSHING

2шт.

TH103198

BUSHING

2шт.

17

EXCAVATOR BOOM

(SUB TH102405)

1шт.

EXCAVATOR BOOM

(SUB TH103194)

1шт.

18

19M7950

CAP SCREW

M20 X 45, (SUB FOR TH102414)

2шт.

19

12M7070

LOCK WASHER

20 MM

2шт.

20

4143695

PLATE

(SUB FOR TH102413)

1шт.

21

AT155544

PIN

(SUB FOR TH103522, TH102412 OR TH109394)

1шт.

8027984

PIN

(SUB FOR TH103199)

1шт.

22

TH102411

SEAL

2шт.

TH103200

SEAL

2шт.

23

9049626

EXCAVATOR BOOM

(SUB FOR TH102405)

1шт.

9049169

EXCAVATOR BOOM

(SUB FOR TH103194)

1шт.
