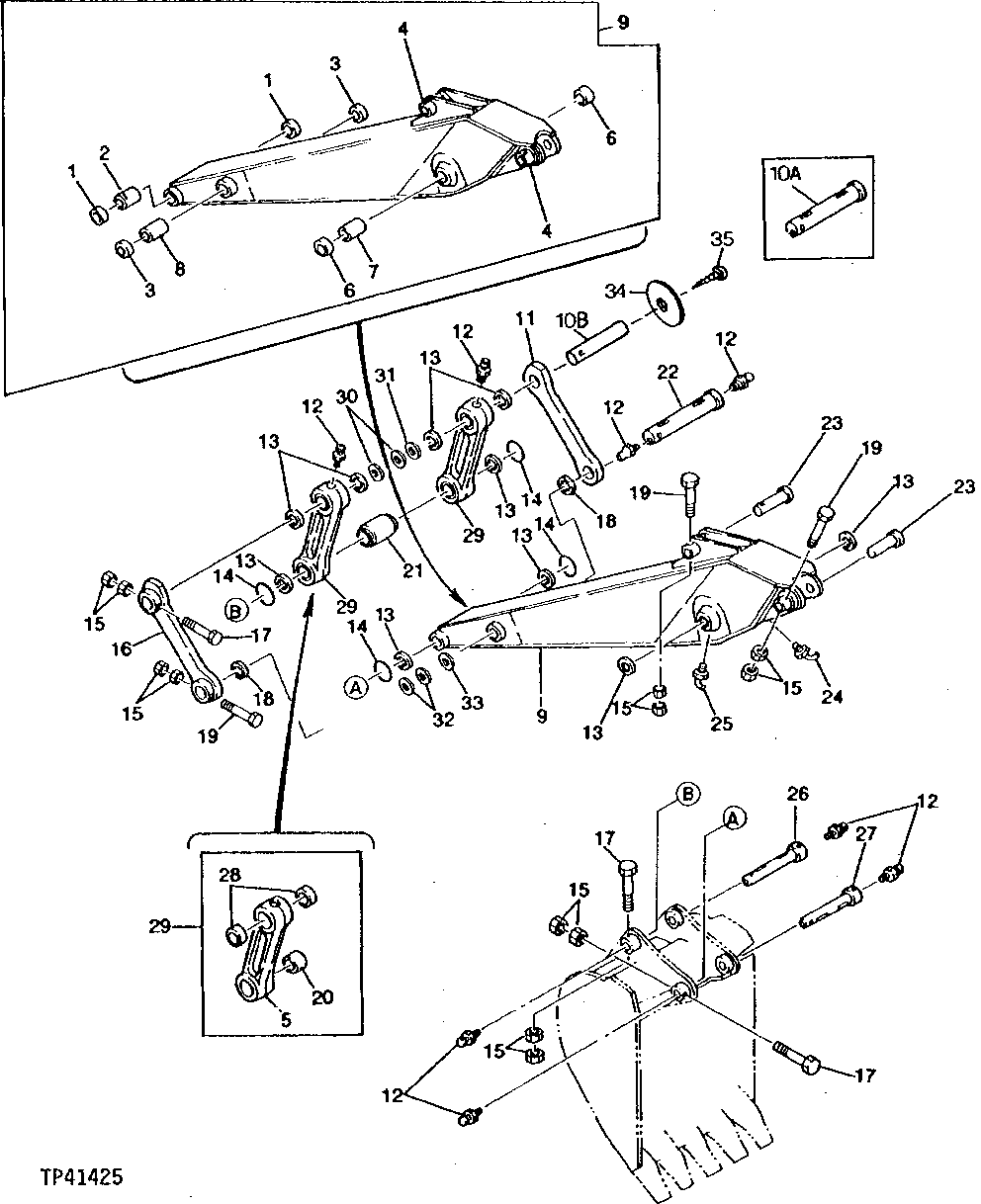

Запчасти John Deere 90 2 - DIPPERSTICK ARM 3340 - EXCAVATOR 33

1

TH109802

BUSHING

(SUB FOR TH102429)

2шт.

2

4144379

SPACER

(SUB FOR TH102430)

1шт.

3

TH109803

BUSHING

(SUB FOR TH102431)

2шт.

4

4067719

PIVOT

(SUB FOR TH102410)

2шт.

5

LINK

(SUB TH102433)

1шт.

6

3054062

BUSHING

(SUB FOR TH102427) (SUB FOR TH109801) (USE IF AVAILABLE)

2шт.

3054062

BUSHING

(SUB FOR TH109801) (SUB FOR AT154689)

2шт.

7

4144320

SPACER

(SUB FOR TH102428)

1шт.

8

4144380

SPACER

(SUB FOR TH102432)

1шт.

9

9054362

MOUNTING PARTS

(SUB FOR TH103362) (SHORT)

1шт.

9049628

ARM

(SUB FOR TH103360) (STANDARD)

1шт.

9054361

ARM

(SUB FOR TH103361) (LONG)

1шт.

10A

PIN

( 3038448 NO LONGER AVAILABLE) (SUB T138885, ALONG WITH T138902 AND 19M8029)

1шт.

10B

T138885

PIN

1шт.

11

3026344

LINK

(SUB FOR TH102438)

1шт.

12

TH100074

LUBRICATION FITTING

8шт.

13

TH102445

SEAL

(I.D. 100 MM - O.D. 115 MM)

10шт.

14

4089028

O-RING

(SUB FOR TH102444 OR T200732)

4шт.

15

14M7277

NUT

M20

12шт.

16

8026536

LINK

(SUB FOR TH102437)

1шт.

17

19M8503

CAP SCREW

M20 X 160

3шт.

18

TH102446

SEAL

(I.D. 80 MM - O.D. 95 MM)

2шт.

19

19M8503

CAP SCREW

M20 X 160

3шт.

20

TH109807

BUSHING

(SUB FOR TH102436)

1шт.

21

4155351

PIN FASTENER

(SUB FOR TH102439)

1шт.

22

3026323

PIN FASTENER

(SUB FOR TH102440)

1шт.

23

TH109797

PIN

(SUB FOR TH102418)

2шт.

24

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

2шт.

25

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

1шт.

26

TH110236

PIN FASTENER

(SUB FOR TH102442)

1шт.

27

TH110235

PIN FASTENER

(SUB FOR TH102443)

1шт.

28

4144377

BUSHING

(SUB FOR TH102435)

2шт.

29

9049629

LINK

(SUB FOR TH102433)

2шт.

30

4361177

WASHER

(SUB FOR TH106309) (SUB FOR AT214005)

2шт.

31

4189837

WASHER

(SUB FOR TH106310)

1шт.

32

TH104296

WASHER

2шт.

33

TH106308

WASHER

1шт.

34

T138902

BUSHING

1шт.

35

19M8029

CAP SCREW

M16 X 30, (SUB FOR 19M7608)

1шт.
