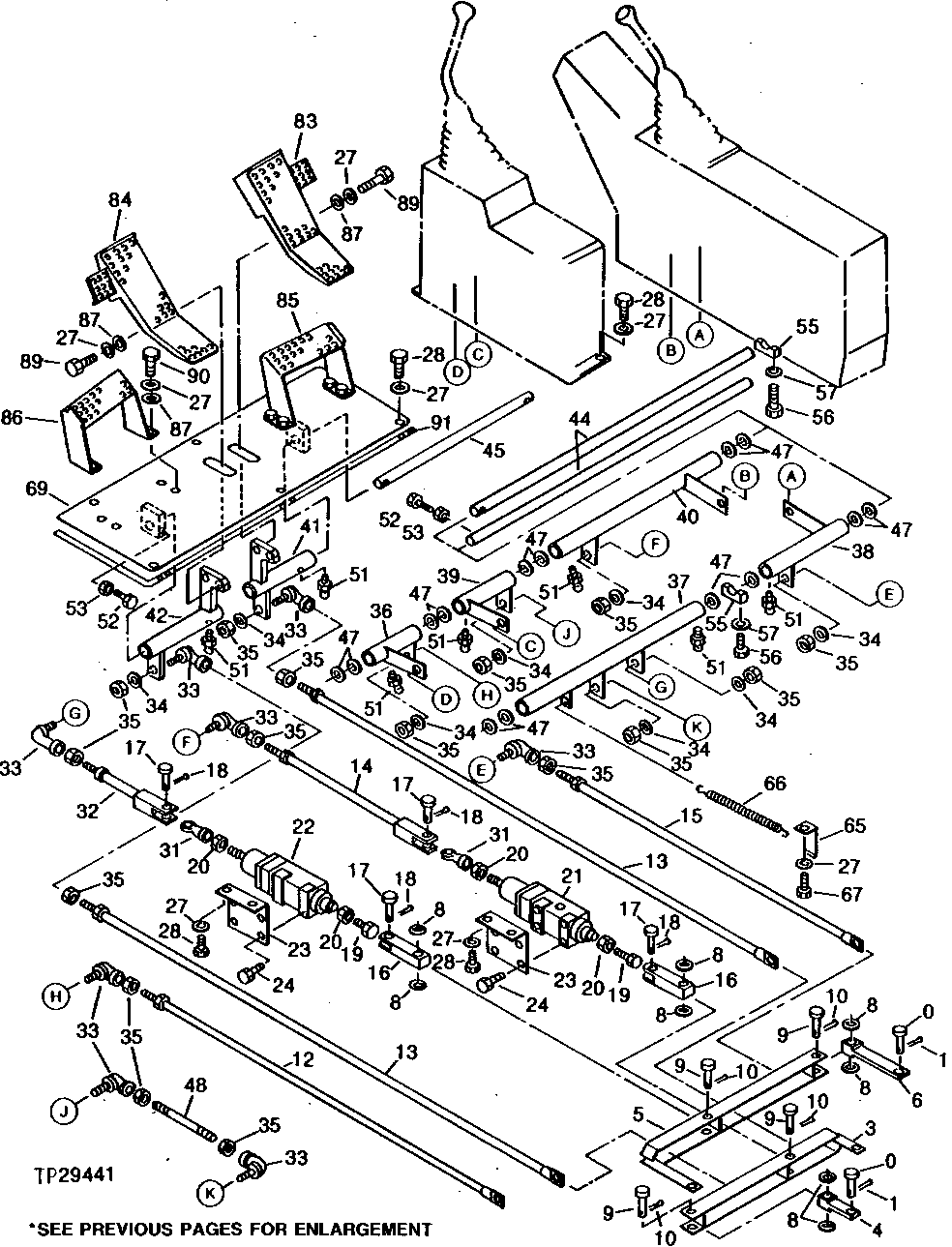

Запчасти John Deere 90 16 - CONTROL LEVER 3315 - EXCAVATOR 33

36

9056880

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH102033)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

37

9054036

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH102044)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

38

9051644

LEVER

(SUB FOR TH102032)

1шт.

39

9054037

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH102031)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

40

9054008

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH103012)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

41

9051649

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH102035)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

42

9051648

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH102036)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

44

4122827

PIN FASTENER

(SUB FOR TH102037)

2шт.

45

4122829

PIN FASTENER

(SUB FOR TH102038)

1шт.

47

4081592

SHIM

(SUB FOR TH102030)

ARшт.

48

4156125

STUD

(SUB FOR TH102045)

1шт.

51

TH100074

LUBRICATION FITTING

7шт.

52

J901032

SCREW

(SUB FOR TH102040)

4шт.

53

14M7274

NUT

M10

4шт.

55

4116377

HALF CLAMP

(SUB FOR TH100300)

4шт.

56

19M7922

CAP SCREW

M8 X 40, (SUB FOR 19M7301)

8шт.

57

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

8шт.

65

4128758

ANGLE

(SUB FOR TH102042)

1шт.

66

4069727

EXTENSION SPRING

(SUB FOR TH102043)

1шт.

67

19M7938

CAP SCREW

M10 X 20

1шт.

69

BRACKET

( TH102039 NO LONGER AVAILABLE)

1шт.

83

TH101225

PEDAL

1шт.

84

2019420

PEDAL

(SUB FOR TH101226)

1шт.

85

2019421

FOOTREST

(SUB FOR TH101227)

1шт.

86

2019422

FOOTREST

(SUB FOR TH101228)

1шт.

87

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

12шт.

89

J901032

SCREW

(SUB FOR TH102040)

4шт.

90

19M8761

SCREW

M10 X 22, (SUB FOR TH100456)

8шт.

91

4167214

ISOLATOR

(SUB FOR TH103013)

2шт.
