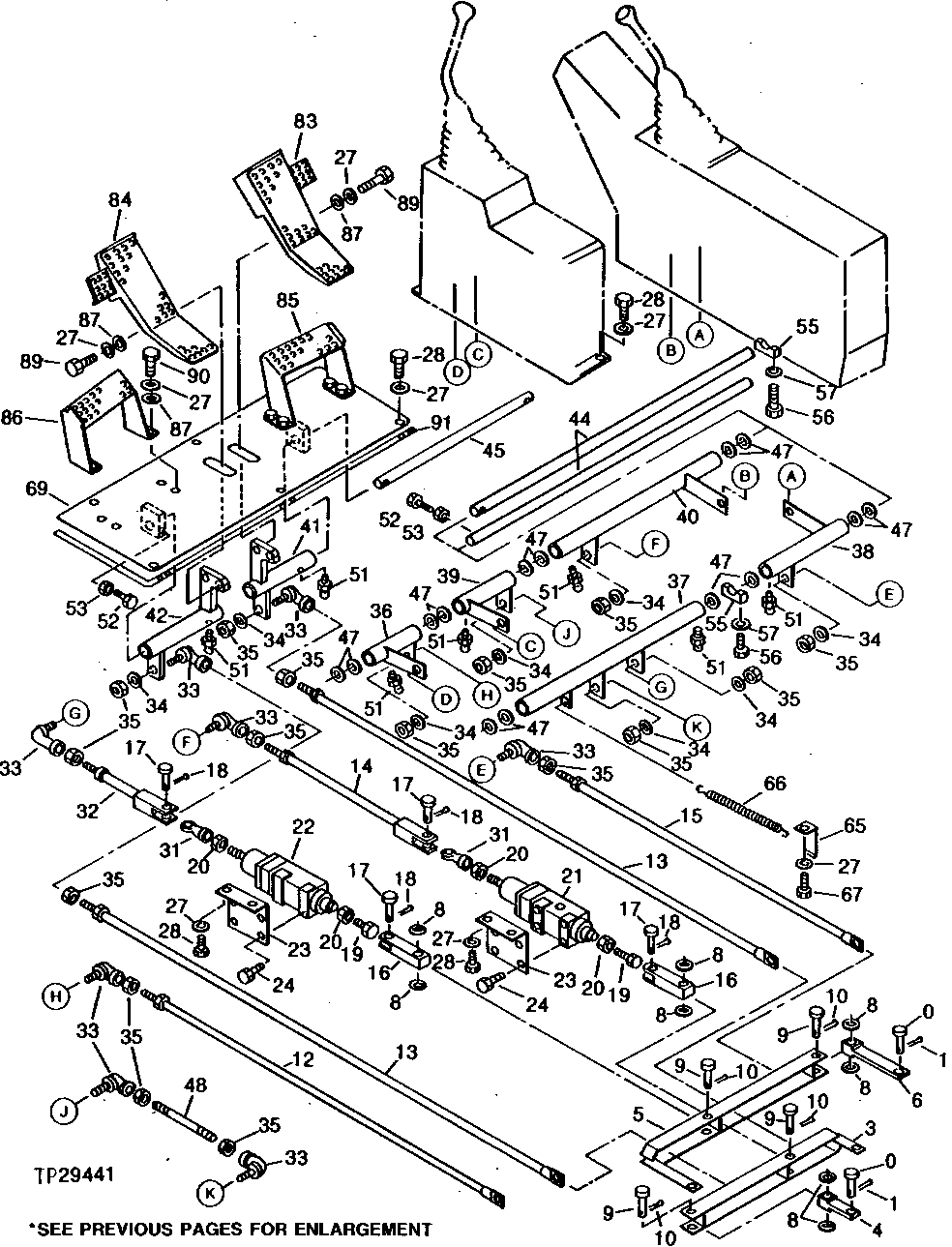

Запчасти John Deere 90 14 - CONTROL LEVER 3315 - EXCAVATOR 33

0

4131437

PIN FASTENER

(SUB FOR TH102011) (SUB FOR P54311)

9шт.

1

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR TH100264) (SUB FOR 11M7081)

9шт.

3

8021866

LINK

(SUB FOR TH103006)

1шт.

4

9714638

LINK

(SUB FOR TH102013)

1шт.

5

8026937

LINK

(SUB FOR TH103007)

1шт.

6

9714639

LINK

(SUB FOR TH102015)

1шт.

8

24M7053

WASHER

17 X 30 X 3 MM

8шт.

9

4071791

PIN FASTENER

(SUB FOR TH102016)

4шт.

10

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR 11M7021)

4шт.

12

9718895

ROD

(SUB FOR TH102019)

1шт.

13

9718896

ROD

(SUB FOR TH102020)

2шт.

14

9719874

ROD

(SUB FOR TH103008)

1шт.

15

9718897

ROD

(SUB FOR TH102022)

1шт.

16

4164435

YOKE

(SUB FOR TH103009)

2шт.

17

45M7084

PIN FASTENER

12 X 35 MM, (SUB FOR TH100309)

4шт.

18

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR 11M7021)

4шт.

19

4505510

LINK END

(SUB FOR TH102024)

2шт.

20

14M7275

NUT

M12

4шт.

21

VALVE

(BOOM ASSIST) ( TH103010 NO LONGER AVAILABLE)

1шт.

22

VALVE

(ARM ASSIST) ( TH103011 NO LONGER AVAILABLE AS ASSEMBLY - ORDER INDIVIDUAL COMPONENTS)

1шт.

23

4131408

ANGLE

(SUB FOR TH102026)

2шт.

24

BOLT

( TH102027 NO LONGER AVAILABLE)

8шт.

27

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

27шт.

28

19M7402

CAP SCREW

M10 X 25

14шт.

31

4064578

LINK END

(SUB FOR TH102028)

2шт.

32

9718899

ROD

(SUB FOR TH102029)

1шт.

33

4056020

BALL JOINT

(SUB FOR TH100311)

8шт.

34

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

8шт.

35

M501210

NUT

(SUB FOR TH100312)

16шт.
