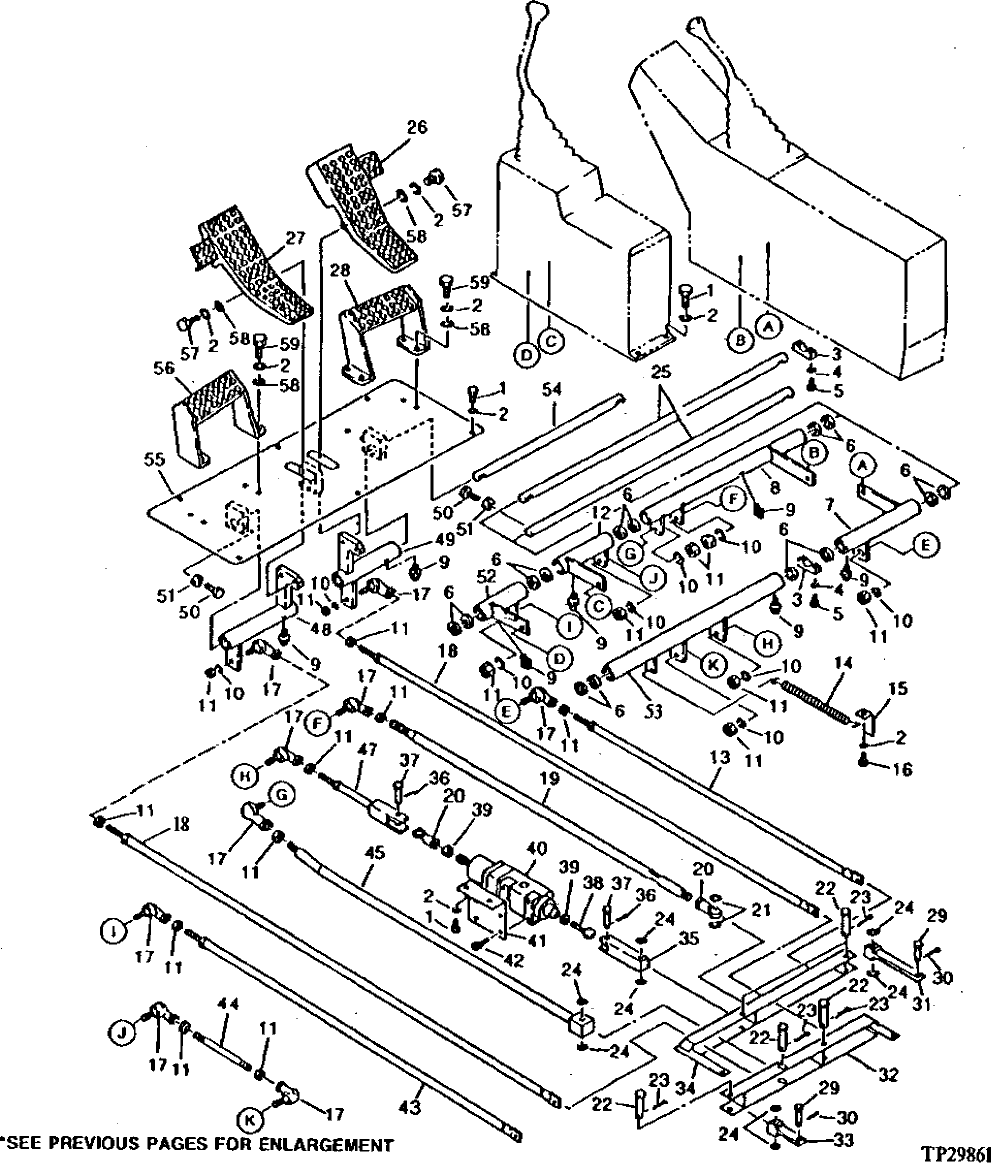

Запчасти John Deere 90 8 - CONTROL LEVER 3315 - EXCAVATOR 33

26

TH101225

PEDAL

1шт.

27

2019420

PEDAL

(SUB FOR TH101226)

1шт.

28

2019421

FOOTREST

(SUB FOR TH101227)

1шт.

29

4131437

PIN FASTENER

(SUB FOR TH102011)

9шт.

30

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR TH100264) (SUB FOR 11M7081)

9шт.

31

9714639

LINK

(SUB FOR TH102015)

1шт.

32

8027982

LINK

(SUB FOR TH102012)

1шт.

33

9714638

LINK

(SUB FOR TH102013)

1шт.

34

8021867

LINK

(SUB FOR TH102014)

1шт.

35

4131407

YOKE

(SUB FOR TH102023)

1шт.

36

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR TH100310) (SUB FOR 11M7021)

2шт.

37

45M7084

PIN FASTENER

12 X 35 MM, (SUB FOR TH100309)

2шт.

38

4505510

LINK END

(SUB FOR TH102024)

1шт.

39

14M7275

NUT

M12

2шт.

40

VALVE

ASSIST ( TH102025 NO LONGER AVAILABLE - SUB COMPONENTS)

1шт.

41

4131408

ANGLE

(SUB FOR TH102026)

1шт.

42

BOLT

( TH102027 NO LONGER AVAILABLE)

4шт.

43

9718895

ROD

(SUB FOR TH102019)

1шт.

44

4156125

STUD

(SUB FOR TH102045)

1шт.

45

9719330

ROD

(SUB FOR TH102021)

1шт.

47

9718899

ROD

(SUB FOR TH102029)

1шт.

48

9051648

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH102036)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

49

9051649

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH102035)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

50

J901032

SCREW

(SUB FOR TH102040)

4шт.

51

14M7274

NUT

M10

4шт.

52

9056880

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH102033)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

53

9054036

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH102044)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

54

4122829

PIN FASTENER

(SUB FOR TH102038)

1шт.

55

BRACKET

( TH102039 NO LONGER AVAILABLE)

1шт.

56

2019422

FOOTREST

(SUB FOR TH101228)

1шт.

57

J901032

SCREW

(SUB FOR TH102040)

4шт.

58

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

12шт.

59

19M8761

SCREW

M10 X 22

8шт.
