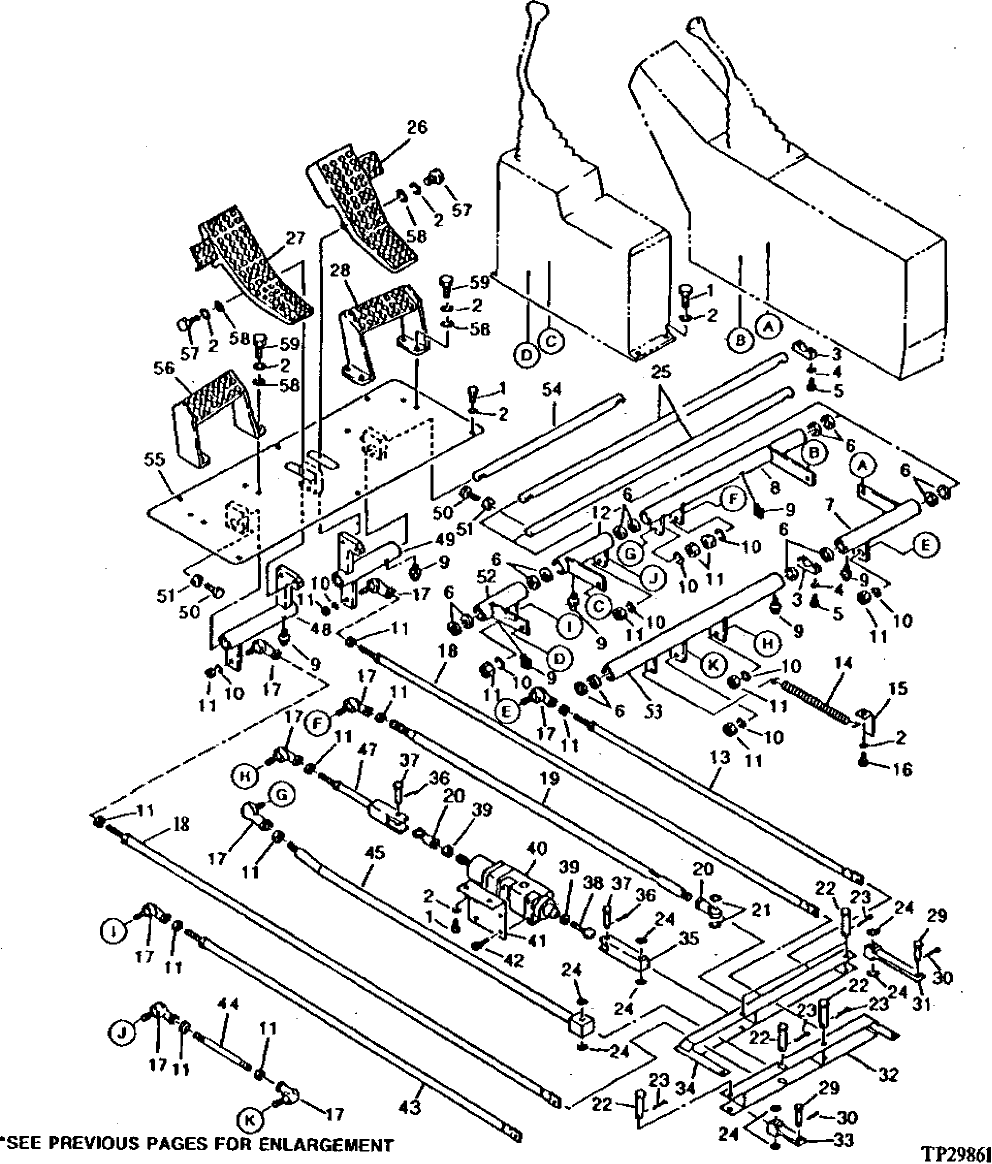

Запчасти John Deere 90 6 - CONTROL LEVER 3315 - EXCAVATOR 33

1

19M7402

CAP SCREW

M10 X 25

12шт.

2

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

25шт.

3

4116377

HALF CLAMP

(SUB FOR TH100300)

4шт.

4

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

8шт.

5

19M7922

CAP SCREW

M8 X 40, (SUB FOR 19M7301)

8шт.

6

4081592

SHIM

(SUB FOR TH102030)

ARшт.

7

9051644

LEVER

(SUB FOR TH102032)

1шт.

8

9052685

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH102034)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

9

TH100074

LUBRICATION FITTING

ARшт.

10

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

9шт.

11

M501210

NUT

(SUB FOR TH100312)

18шт.

12

9054037

LEVER

(INCLUDES (2) TH103818) (SUB FOR TH102031)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

13

9718897

ROD

(SUB FOR TH102022)

1шт.

14

4069727

EXTENSION SPRING

(SUB FOR TH102043)

1шт.

15

4128758

ANGLE

(SUB FOR TH102042)

1шт.

16

19M7938

CAP SCREW

M10 X 20

1шт.

17

4056020

BALL JOINT

(SUB FOR TH100311)

9шт.

18

9718896

ROD

(SUB FOR TH102020)

2шт.

19

4152715

STUD

(SUB FOR TH102018)

1шт.

20

4064578

LINK END

(SUB FOR TH102028)

2шт.

21

4152729

WASHER

(SUB FOR TH102041)

2шт.

22

4071791

PIN FASTENER

(SUB FOR TH102016)

5шт.

23

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR TH102017) (SUB FOR 11M7021)

5шт.

24

24M7053

WASHER

17 X 30 X 3 MM, (SUB FOR TH100520)

8шт.

25

4122827

PIN FASTENER

(SUB FOR TH102037)

2шт.
