Запчасти John Deere 90 38 - SEVERE DUTY PLATE LIP BUCKET TOOTH ASSEMBLY 3302 - EXCAVATOR 33

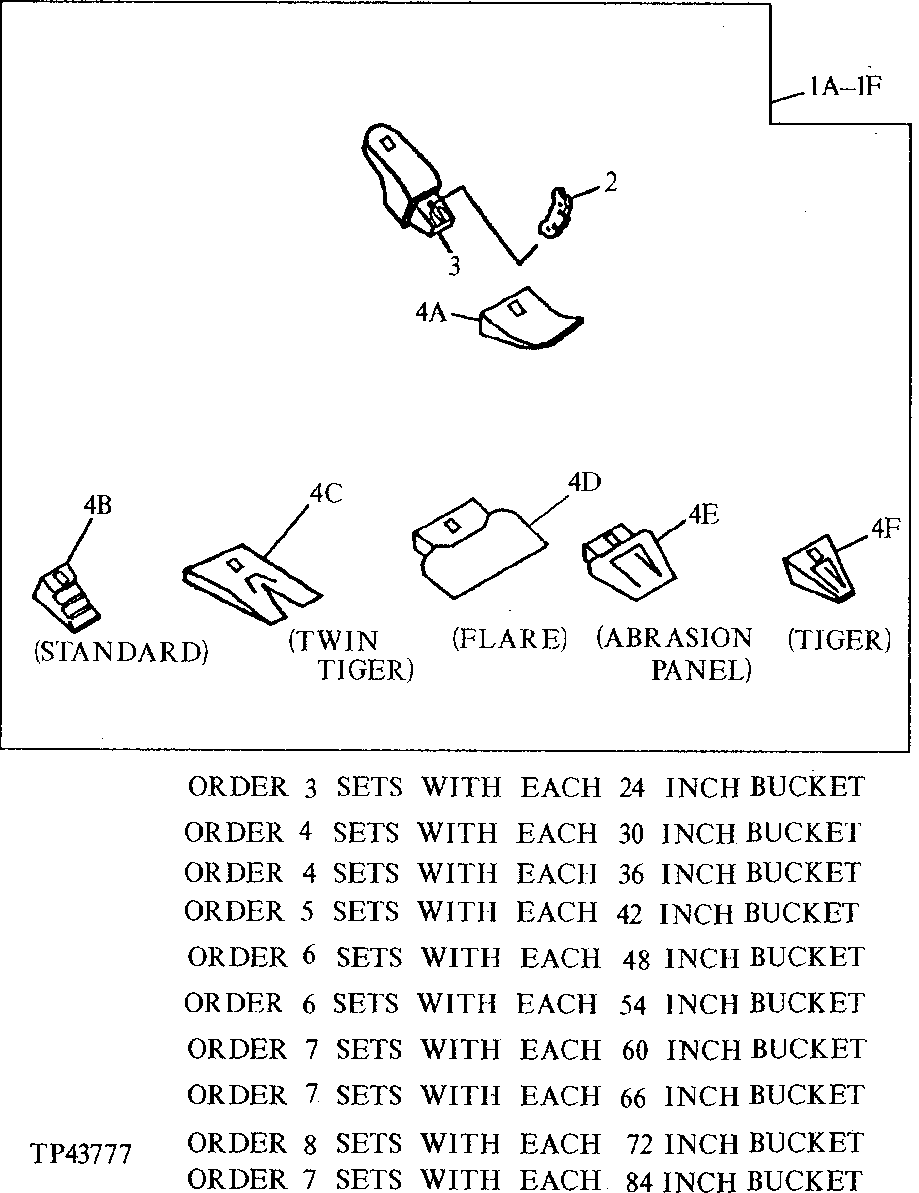

Схема запчастей John Deere 90 - 38 - SEVERE DUTY PLATE LIP BUCKET TOOTH ASSEMBLY 3302 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

1A

AT163548

TOOTH

WHOLEGOODS (FANGGS)

1шт.

1B

AT163549

TOOTH

WHOLEGOODS (STANDARD)

1шт.

1C

AT163553

TOOTH

WHOLEGOODS (TWIN TIGER)

1шт.

1D

AT163552

TOOTH

WHOLEGOODS (FLARE)

1шт.

1E

AT163551

TOOTH

WHOLEGOODS (ABRASION PANEL)

1шт.

1F

AT163550

TOOTH

WHOLEGOODS (TIGER)

1шт.

1G

AT163554

TOOTH

WHOLEGOODS (ESCO STANDARD) (NOT ILLUSTRATED)

1шт.

1H

AT163557

TOOTH

WHOLEGOODS (ESCO TWIN TIGER) (NOT ILLUSTRATED)

1шт.

1I

AT163556

TOOTH

WHOLEGOODS (ESCO FLARE) (NOT ILLUSTRATED)

1шт.

1J

AT163555

TOOTH

WHOLEGOODS (ESCO TIGER) (NOT ILLUSTRATED)

1шт.

1K

AT167196

TOOTH

WHOLEGOODS (CATERPILLAR REPLACEMENT FANGGS) (NOT ILLUSTRATED)

1шт.

1L

AT167197

TOOTH

WHOLEGOODS (CATERPILLAR REPLACEMENT STANDARD) (NOT ILLUSTRATED)

1шт.

2

TP400HD

PIN

(SUB FOR PTP400HD)

1шт.

EX37VPN

PIN

(ESCO VERTALOK) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

T1U1458

PIN FASTENER

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

3

T802X400

SHANK

(SUB FOR PT802X400)

1шт.

EX5856-37V

BUCKET TOOTH ADAPTER

(ESCO VERTALOK) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

T1U1454

BUCKET TOOTH ADAPTER

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

4A

TF400

TOOTH

1шт.

4B

TX400

TOOTH

1шт.

4C

TX400WT

TOOTH

1шт.

4D

TX400F

TOOTH

1шт.

4E

TX400AP

TOOTH

1шт.

4F

TT400

TOOTH

1шт.

4G

EX37SYL

TOOTH

(ESCO STANDARD) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE) (SUB FOR EX5824-37, ALONG WITH EX37VPL AND EX37VPN)

1шт.

4H

EX37TVIP

TOOTH

(ESCO TWIN TIGER) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

4I

EX37S7F

TOOTH

(ESCO FLARE) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

4J

EX37VIP

TOOTH

(ESCO TIGER) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

4K

TF9W8452D

TOOTH

(CATERPILLAR REPLACEMENT FANGGS) (NOT ILLUSTRATED)

1шт.

4L

T9W8452

TOOTH

(CATERPILLAR REPLACEMENT STANDARD) (NOT ILLUSTRATED)

1шт.

5

EX37VPL

PLUG

(NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

T3G9549

RETAINER

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

Выбрано товаров: 32
