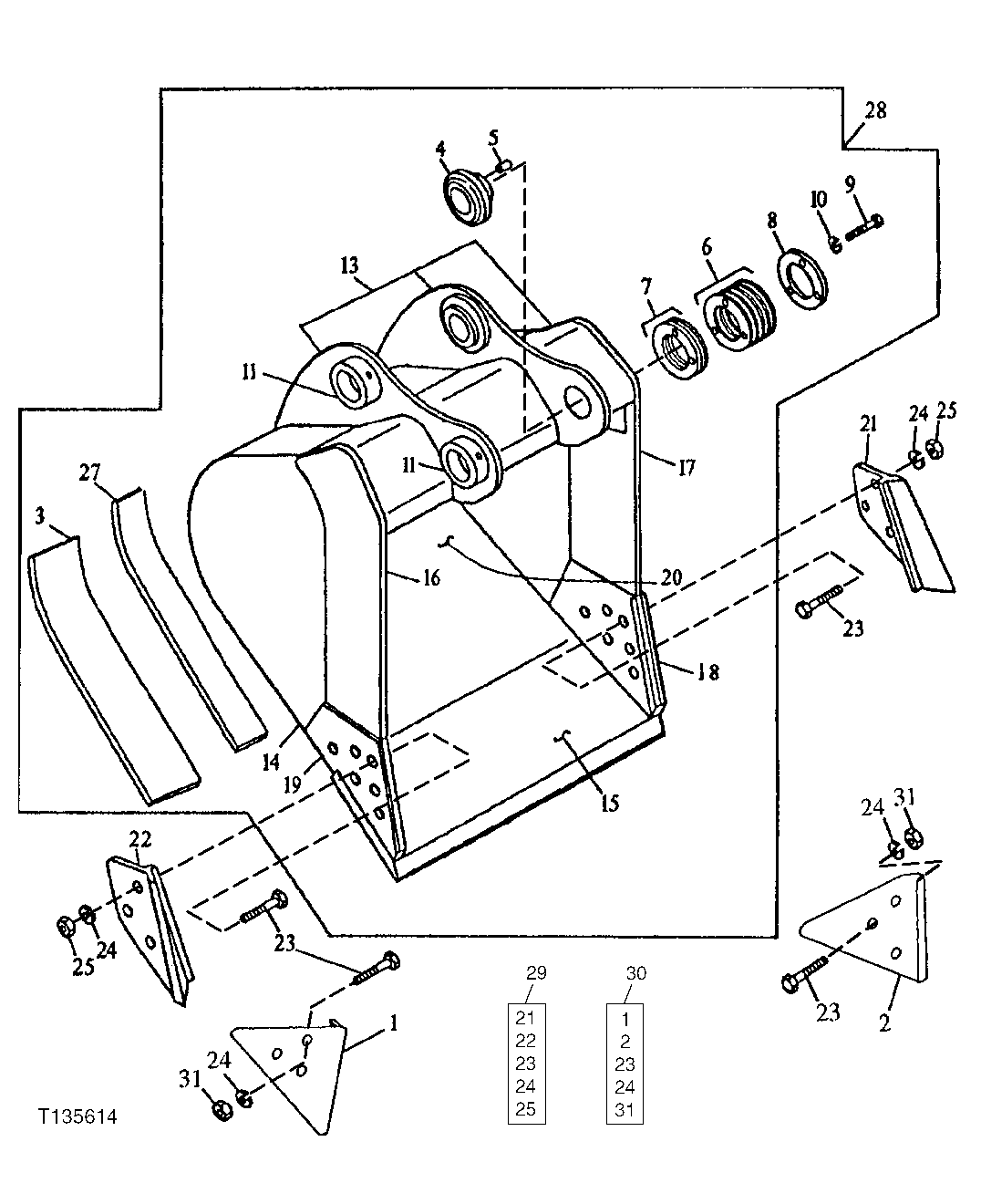

Запчасти John Deere 90 20 - HEAVY DUTY HIGH CAPACITY BUCKET 3302 - EXCAVATOR 33

1

SHROUD

(B) (RT EDGE PROTECTOR)

1шт.

2

SHROUD

(B) (LT EDGE PROTECTOR)

1шт.

3

304559

BAR

(C) (OUTER WEAR)

2шт.

4

AT131084

BUSHING

1шт.

5

R48685

DOWEL PIN

1шт.

6

TH102460

WASHER

(1 MM)

6шт.

7

TH102461

SHIM

(.5 MM)

2шт.

8

TH102463

PLATE

1шт.

9

19H2706

CAP SCREW

5/8" X 2"

3шт.

10

12H294

LOCK WASHER

5/8"

3шт.

11

TH102409

BUSHING

2шт.

13

C603692

PIVOT

(C) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

306995

PLATE

(C) (RIGHT AND LEFT SIDE)

2шт.

15

AT131097

CUTTING EDGE

(CUT TO LENGTH) (72 INCHES)

1шт.

T154189

DURA-MAX TM CUTTING EDGE

(CUT TO LENGTH) (42 INCHES)

1шт.

T154188

DURA-MAX TM CUTTING EDGE

(CUT TO LENGTH) (36 INCHES)

1шт.

16

300283

VERTICAL CUTTER

(C) (UPPER RIGHT SIDE CUTTER)

1шт.

17

300284

VERTICAL CUTTER

(C) (UPPER LEFT SIDE CUTTER)

1шт.

18

304568

VERTICAL CUTTER

(C) (LEFT SIDE CUTTER INSERT)

1шт.

19

304567

VERTICAL CUTTER

(C) (RIGHT SIDE CUTTER INSERT)

1шт.

20A

600171

MOLDBOARD

(C) (UPPER MOLDBOARD - 20 INCH BUCKET)

1шт.

600172

MOLDBOARD

(C) (UPPER MOLDBOARD - 36 INCH BUCKET)

1шт.

600173

MOLDBOARD

(C) (UPPER MOLDBOARD - 42 INCH BUCKET)

1шт.

20B

600166

MOLDBOARD

(C) (LOWER MOLDBOARD - 30 INCH BUCKET)

1шт.

600167

MOLDBOARD

(C) (LOWER MOLDBOARD - 36 INCH BUCKET)

1шт.

600168

MOLDBOARD

(C) (LOWER MOLDBOARD - 42 INCH BUCKET)

1шт.

21

CUTTING EDGE

(A) SIDE CUTTER (LH) (SUB AT131085)

1шт.

22

CUTTING EDGE

(A) SIDE CUTTER (RH) (SUB AT131085)

1шт.

23

09H1771

BOLT

(A) (B) 7/8" X 3"

6шт.

24

12H245

LOCK WASHER

(A) (B) 7/8"

6шт.

25

14H1077

NUT

(A) 7/8"

6шт.

27

300291

BAR

(C) (INNER WEAR)

2шт.

28

AT163638

EXCAVATOR BUCKET

(WHOLEGOODS) (24 INCH - .92 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) (SUB FOR AT160743 OR AT160744) WHOLEGOODS

1шт.

AT163639

EXCAVATOR BUCKET

(WHOLEGOODS) (30 INCH - 1.20 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) (SUB FOR AT131041 OR AT131161) WHOLEGOODS

1шт.

AT163640

EXCAVATOR BUCKET

(WHOLEGOODS) (36 INCH - 1.48 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) (SUB FOR AT131042 OR AT131162) WHOLEGOODS

1шт.

AT163641

EXCAVATOR BUCKET

(WHOLEGOODS) (42 INCH - 1.75 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) (SUB FOR AT131043 OR AT131163) WHOLEGOODS

1шт.

29

AT131085

END BIT

(WHOLEGOODS) (INCLUDES PARTS MARKED (A)) WHOLEGOODS

1шт.

30

AT167876

KIT

(WHOLEGOODS) EDGE PROTECTOR (INCLUDES PARTS MARKED (B)) WHOLEGOODS

1шт.

31

14H1044

NUT

(B) 22.225 MM (7/8")

6шт.
