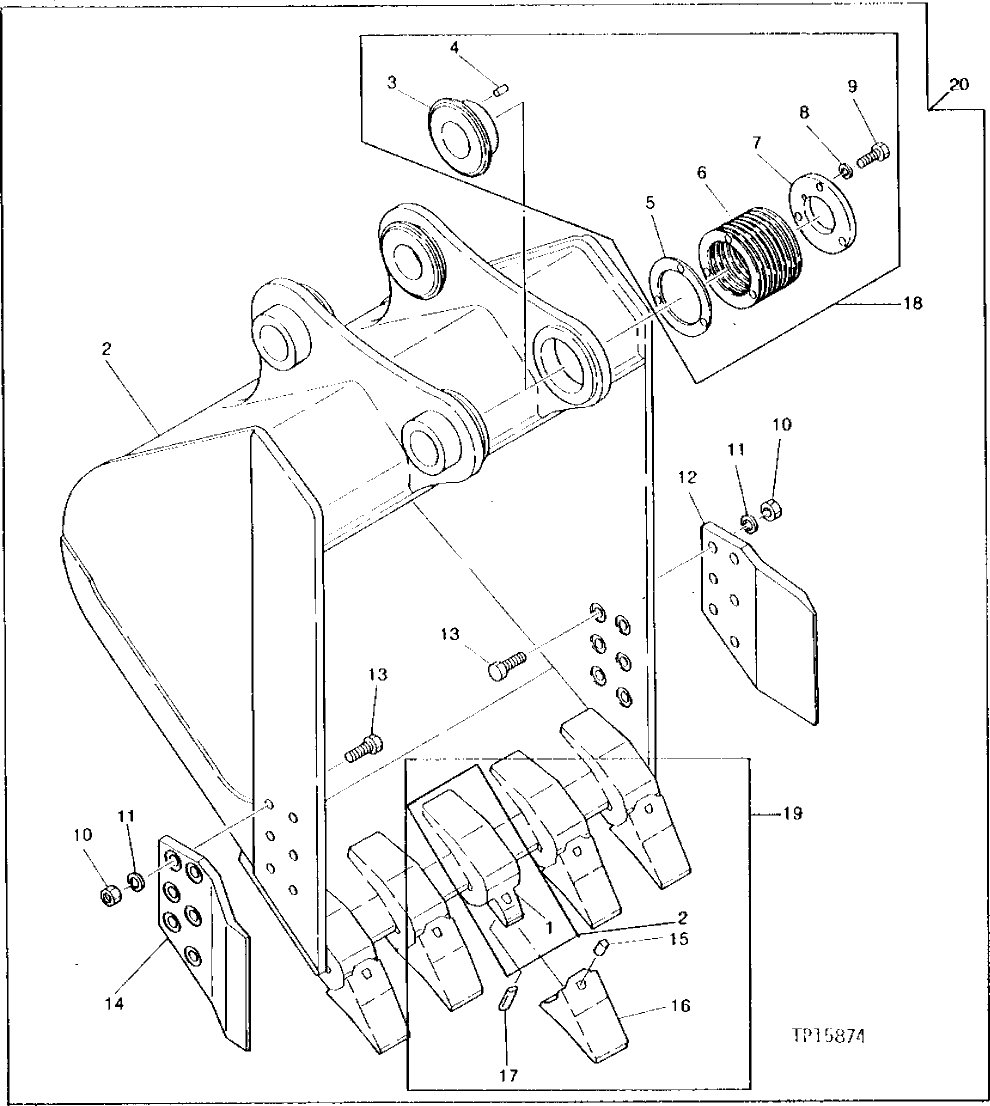

Запчасти John Deere 90 6 - BUCKETS 3302 - EXCAVATOR 33

1

4045168

BUCKET TOOTH ADAPTER

(SUB FOR TH102450)

5шт.

2

EXCAVATOR BUCKET

1-1/2 CU. YD. (1.2M3)

1шт.

EXCAVATOR BUCKET

1-3/4 CU. YD. (1.4M3)

1шт.

3

4143522

BUSHING

(K) (SUB FOR TH103234)

1шт.

4

4179110

PIN

(K) (SUB FOR TH103520)

1шт.

5

4143525

SHIM

(K) (SUB FOR TH103236)

2шт.

6

4143524

WASHER

(K) (SUB FOR TH103235)

6шт.

7

TH103237

PLATE

(K)

1шт.

8

12H294

LOCK WASHER

(K) 5/8", (SUB FOR TH100466)

3шт.

9

19M7489

CAP SCREW

(K) M16 X 45, (SUB FOR TH101724)

3шт.

10

J951022

NUT

(SUB FOR TH102457)

12шт.

11

12H245

LOCK WASHER

(SUB FOR TH101871)

12шт.

12

2021232

CUTTING EDGE

RIGHT, (SUB FOR TH102454) (ALSO ORDER (6) TH102456) (SUB FOR TH109819)

1шт.

13

J932265

BOLT

(USE WITH TH102455 AND TH102454) (SUB FOR TH102456)

12шт.

14

2021233

CUTTING EDGE

LEFT, (SUB FOR TH102455) (ALSO ORDER (6) TH102456) (SUB FOR TH109820)

1шт.

15

T3540LK

LOCK

(SUB FOR T33146)

5шт.

16

T40S

TOOTH

(SUB FOR T33187)

5шт.

17

T40PN

PIN FASTENER

(SUB FOR T33188)

5шт.

18

9059279

ADJUSTER

(SUB FOR TH103233)

1шт.

19

4045168

BUCKET TOOTH ADAPTER

(SUB FOR TH102464) BUCKET TOOTH (NO LONGER AVAILABLE)

5шт.

20

EXCAVATOR BUCKET

1-1/2 CU. YD. (1.2M3)

1шт.

EXCAVATOR BUCKET

1-3/4 CU. YD. (1.4M3)

1шт.
