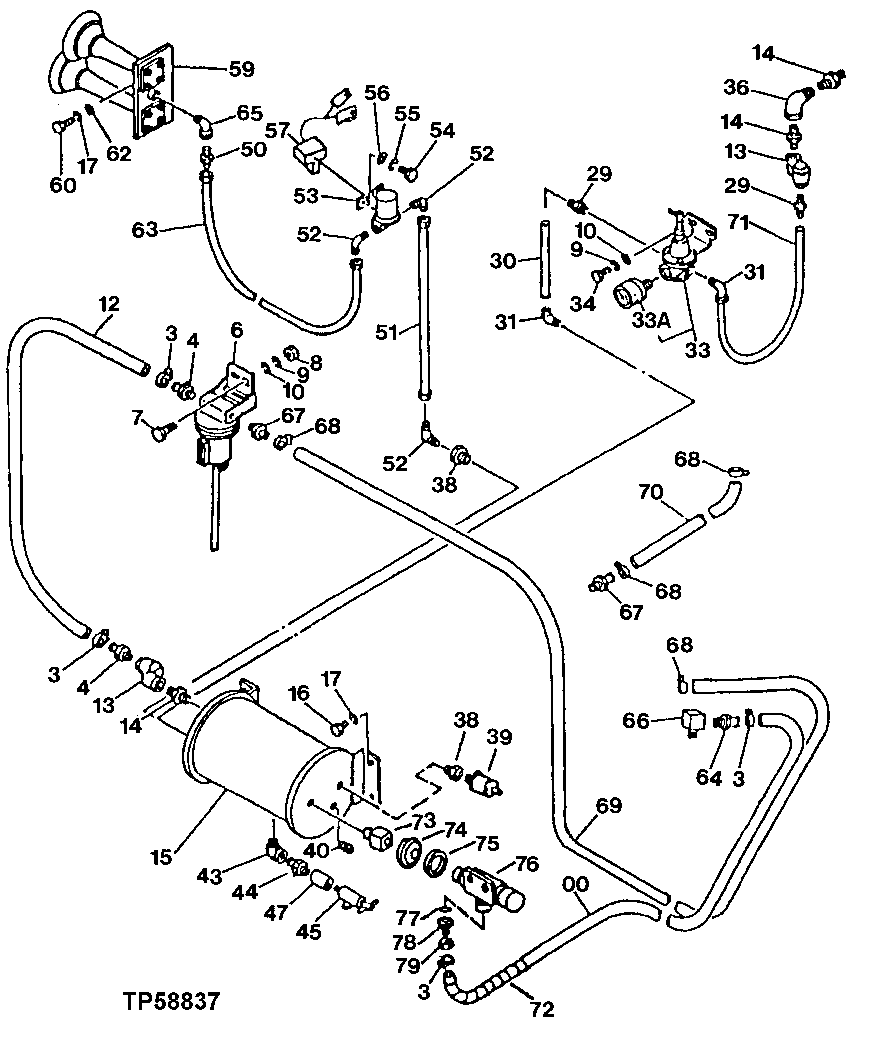

Запчасти John Deere 90 14 - AIR PIPING 2263 - PNEUMATIC SYSTEMS 22

0

4121276

HOSE

(SUB FOR TH102091)

1шт.

3

TY22464

CLAMP

(SUB FOR TH100896 AND AT145649) (SUB FOR AR21836)

4шт.

4

TH102092

THREADED NIPPLE

2шт.

6

4125218

AIR FILTER

(SUB FOR TH102093)

1шт.

7

19M8425

CAP SCREW

M6 X 16

2шт.

8

14M7272

NUT

M6

2шт.

9

12M7006

LOCK WASHER

6 MM

4шт.

10

24M7054

WASHER

6.400 X 12 X 1.600 MM

4шт.

12

4081376

HOSE

(SUB FOR TH102094)

1шт.

13

986953

CHECK VALVE

(SUB FOR TH102095)

2шт.

14

94-1702

ADAPTER FITTING

(SUB FOR TH102096) (SUB FOR TH102949)

3шт.

15

8501883

TANK

(SUB FOR TH102097)

1шт.

16

19M7938

CAP SCREW

M10 X 20

4шт.

17

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

6шт.

29

969198

ADAPTER FITTING

(SUB FOR TH102098)

2шт.

30

4512008

TUBE

(SUB FOR TH102123)

1шт.

31

4501785

ELBOW FITTING

(SUB FOR TH102100)

2шт.

33

4198244

REGULATOR

(SUB FOR TH102101) (SUB FOR TH108916)

1шт.

33A

4198243

GAUGE

(SUB FOR TH105680) (SUB FOR TH108917)

1шт.

34

19M7923

CAP SCREW

M6 X 12

2шт.

36

J70283

ELBOW FITTING

(SUB FOR TH102102)

1шт.

38

J728382

PIPE BUSHING

(SUB FOR TH102103)

2шт.

39

986952

VALVE

(SUB FOR TH102104) (SAFETY RELIEF)

1шт.

40

94-2023

FITTING PLUG

(SUB FOR TH100667)

1шт.

43

94-0630

ELBOW FITTING

(SUB FOR TH102105)

1шт.

44

94-1901

ADAPTER FITTING

(SUB FOR TH102106)

1шт.

45

4209782

HAND OPERATED VALVE

(SUB FOR AT128432) (SUB FOR 4094354 ALONG WITH 94-1702 AND 94-2023)

1шт.

94-1702

ADAPTER FITTING

(SUB FOR TH102949)

1шт.
