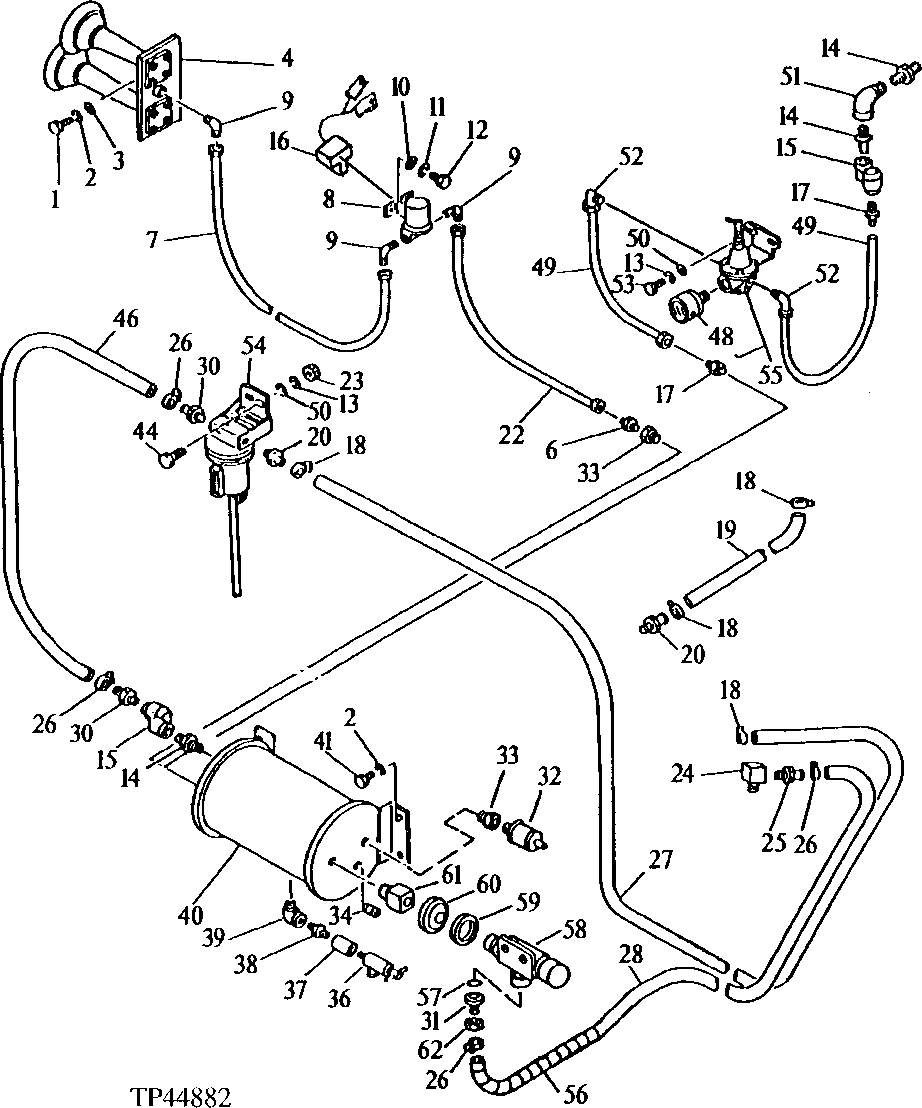

Запчасти John Deere 90 8 - AIR PIPING 2263 - PNEUMATIC SYSTEMS 22

38

94-1901

ADAPTER FITTING

(SUB FOR TH102106)

1шт.

39

94-0630

ELBOW FITTING

(SUB FOR TH102105)

1шт.

40

8501883

TANK

(SUB FOR TH102097)

1шт.

41

19M7938

CAP SCREW

M10 X 20

4шт.

44

19M8425

CAP SCREW

M6 X 16

2шт.

46

4081376

HOSE

(SUB FOR TH102094)

1шт.

48

4198243

GAUGE

(SUB FOR TH105680) (SUB FOR TH108917)

1шт.

49

4054717

TUBE

(SUB FOR TH102099)

2шт.

50

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

4шт.

51

J70283

ELBOW FITTING

(SUB FOR TH102102)

1шт.

52

4501785

ELBOW FITTING

(SUB FOR TH102100)

2шт.

53

19M7923

CAP SCREW

M6 X 12

2шт.

54

4125218

AIR FILTER

(SUB FOR TH102093)

1шт.

55

4198244

REGULATOR

(SUB FOR TH102101) (SUB FOR TH108916)

1шт.

56

T83427

CONDUIT

ARшт.

57

984225

PACKING

(SUB FOR TH106787)

1шт.

58

4092238

GOVERNOR

(SUB FOR TH103975)

1шт.

59

TH106786

SHIM

1шт.

60

984219

SEALING WASHER

(SUB FOR TH103974)

1шт.

61

499820

ADAPTER FITTING

(SUB FOR TH103973)

1шт.

62

TH106789

NUT

1шт.
