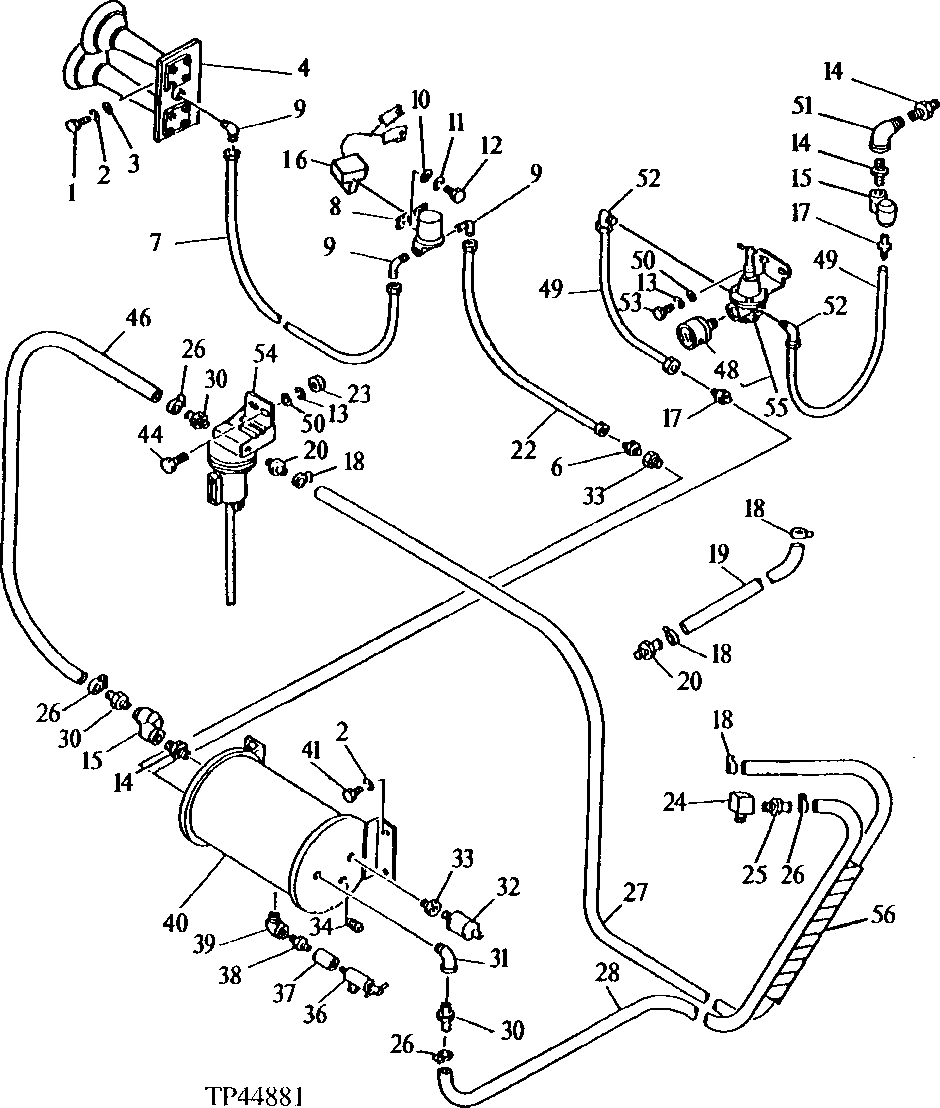

Запчасти John Deere 90 4 - AIR PIPING 2263 - PNEUMATIC SYSTEMS 22

30

TH102092

THREADED NIPPLE

3шт.

31

ELBOW FITTING

(SUB AT128432 ALONG WITH TH102949 AND TH100667)

1шт.

32

986952

VALVE

(SUB FOR TH102104) SAFETY RELIEF

1шт.

33

J728382

PIPE BUSHING

(SUB FOR TH102103)

2шт.

34

94-2023

FITTING PLUG

(SUB FOR TH100667)

1шт.

36

4209782

HAND OPERATED VALVE

(SUB FOR AT128432) (SUB FOR 4094354 ALONG WITH 94-1702 AND 94-2023)

1шт.

94-1702

ADAPTER FITTING

(SUB FOR TH102949)

1шт.

37

J70083

ADAPTER FITTING

(SUB FOR TH103028)

1шт.

38

94-1901

ADAPTER FITTING

(SUB FOR TH102106)

1шт.

39

94-0630

ELBOW FITTING

(SUB FOR TH102105)

1шт.

40

8501883

TANK

(SUB FOR TH102097)

1шт.

41

19M7938

CAP SCREW

M10 X 20

4шт.

44

19M8425

CAP SCREW

M6 X 16

2шт.

46

4081376

HOSE

(SUB FOR TH102094)

1шт.

48

4198243

GAUGE

(SUB FOR TH105680) (SUB FOR TH108917)

1шт.

49

4054717

TUBE

(SUB FOR TH102099)

2шт.

50

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

4шт.

51

J70283

ELBOW FITTING

(SUB FOR TH102102)

1шт.

52

4501785

ELBOW FITTING

(SUB FOR TH102100)

2шт.

53

19M7923

CAP SCREW

M6 X 12

2шт.

54

4125218

AIR FILTER

(SUB FOR TH102093)

1шт.

55

4198244

REGULATOR

(SUB FOR TH102101) (SUB FOR TH108916)

1шт.

56

T83427

CONDUIT

ARшт.
