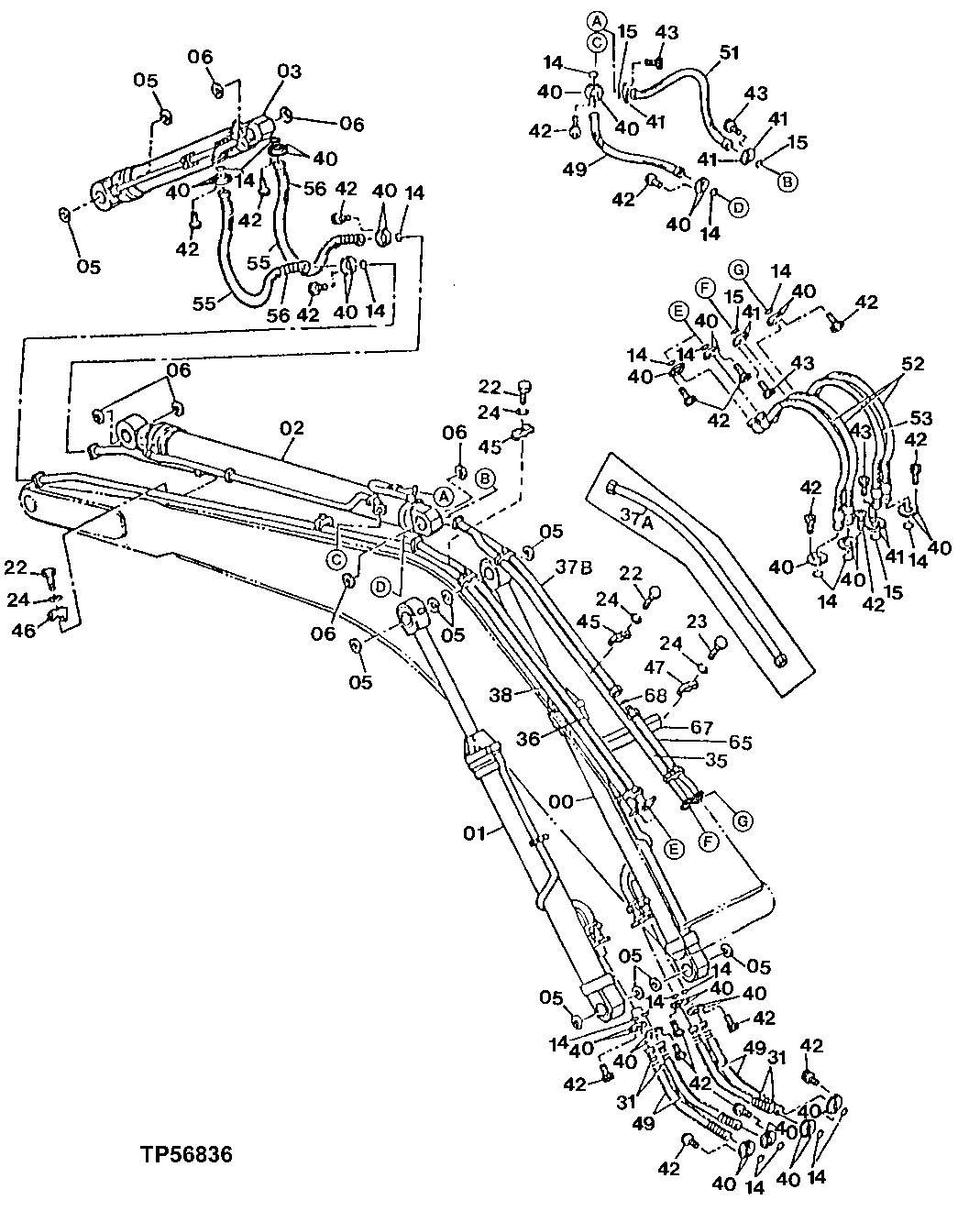

Запчасти John Deere 90 64 - BOOM, BUCKET AND ARM PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21
№
Артикул
Название
Примечание
Количество
0
HYDRAULIC CYLINDER
(RIGHT ARM)
1шт.
1
HYDRAULIC CYLINDER
(LEFT ARM)
1шт.
2
HYDRAULIC CYLINDER
(ARM)
1шт.
3
HYDRAULIC CYLINDER
(BUCKET)
1шт.
5
TH102411
SEAL
10шт.
6
TH102445
SEAL
(I.D. 100 MM - O.D. 115 MM)
6шт.
14
T78313
O-RING
32.918 X 3.531 MM (1.296" X 0.139") (SUB FOR H61355)
20шт.
15
T72216
O-RING
37.694 X 3.531 MM (1-31/64" X 0.139")
4шт.
23
19M7720
CAP SCREW
M16 X 80
1шт.
24
12H294
LOCK WASHER
5/8"
11шт.
31
4055141
GUARD
(SUB FOR TH102470)
4шт.
35
8028895
TUBE
(SUB FOR TH103245)
1шт.
8030765
OIL LINE
(SUB FOR TH103478)
1шт.
36
8028896
TUBE
(SUB FOR TH103246)
1шт.
8030764
OIL LINE
(SUB FOR TH103479)
1шт.
37A
8076577
LINE
(USE IF AVAILABLE) (SUB FOR TH103247) (SUB AT187326) (ALSO ORDER AT187327, T78612, AT189645, 12H294 AND TH103250)
1шт.
7014855
OIL LINE
(SUB FOR TH103480)
1шт.
37B
8076577
LINE
(SUB FOR AT187326)
1шт.
38
9752829
LINE
(SUB FOR TH103248)
1шт.
7014854
OIL LINE
(SUB FOR TH103481)
1шт.
40
H61354
FLANGE FITTING
(SUB FOR TH102473)
40шт.
41
R29867
FLANGE FITTING
(SUB FOR TH103249)
8шт.
42
M341032
SCREW
M10 X 32, (SUB FOR TH101301)
80шт.
43
19M8448
SCREW
M12 X 35
16шт.
45
4148597
CLAMP
(SUB FOR TH101981)
7шт.
46
4148598
CLAMP
(SUB FOR TH102472)
4шт.
47
4156307
HALF CLAMP
(SUB FOR TH103250)
1шт.
49
4154620
HYDRAULIC HOSE - FABRICATE
(SUB FOR TH102478)
5шт.
51
4154622
HYDRAULIC HOSE
(SUB FOR TH103251)
1шт.
52
TH102479
HYDRAULIC HOSE
3шт.
53
4154624
HYDRAULIC HOSE
(SUB FOR TH103252)
1шт.
55
TH102483
HYDRAULIC HOSE
(STANDARD ARM)
2шт.
4157650
HYDRAULIC HOSE
(SUB FOR TH102484) (LONG ARM)
2шт.
TH102479
HYDRAULIC HOSE
(SHORT ARM)
2шт.
56
TH102480
GUARD
(STANDARD ARM)
2шт.
4060288
GUARD
(SUB FOR TH106776) (LONG ARM)
2шт.
4053617
GUARD
(SUB FOR TH102482) (SHORT ARM)
2шт.
65
9752829
LINE
(SUB FOR AT187327)
1шт.
67
4144315
SCREW
(SUB FOR AT185736)
1шт.
Выбрано товаров: 41
