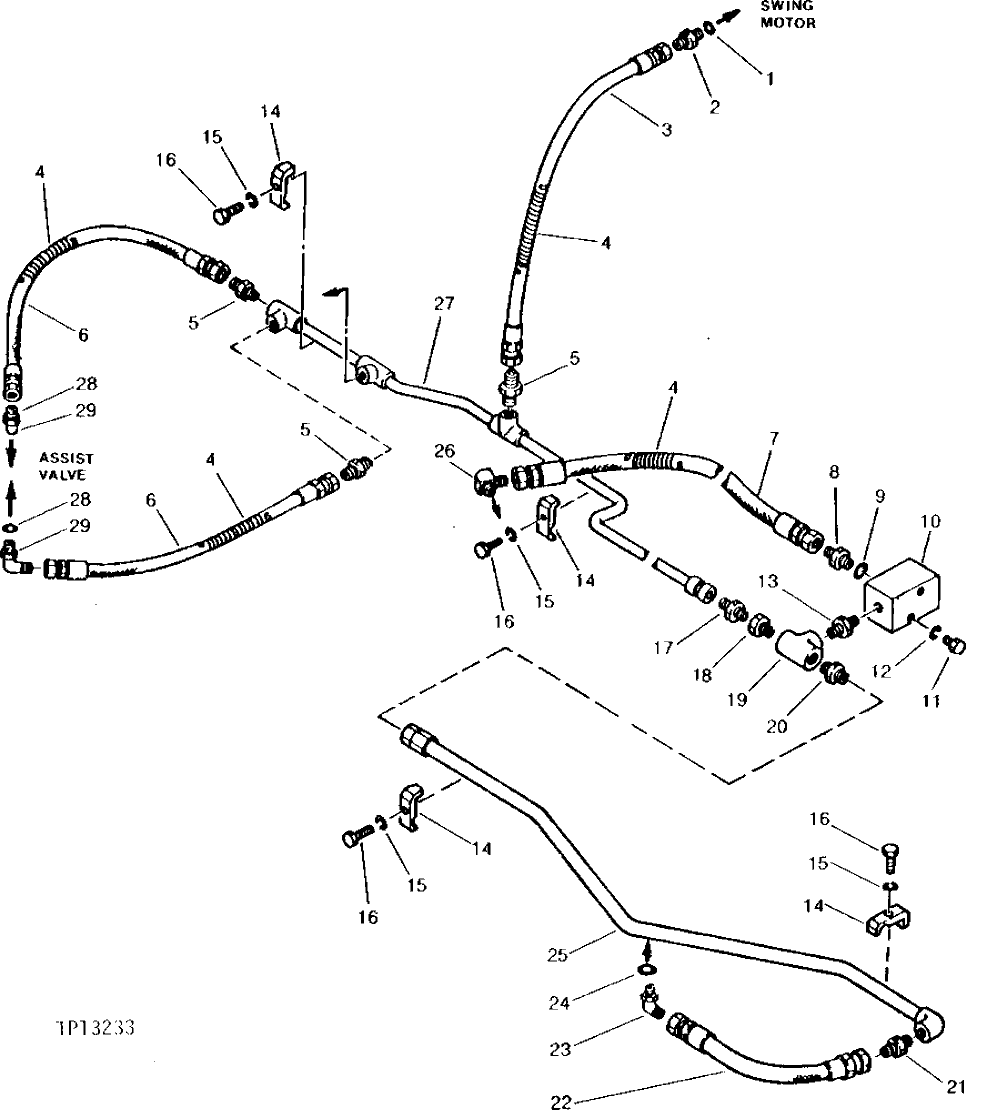

Запчасти John Deere 90 58 - PILOT PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

1

M800650

PACKING

(SUB FOR TH100716)

1шт.

2

4200465

ADAPTER FITTING

(SUB FOR TH101059) (SUB FOR TH108328)

1шт.

3

AH96002

HYDRAULIC HOSE

7/16" X 1 118 MM (44") X 7/16", (SUB FOR TH103026)

1шт.

4

3052919

TUBE

(SUB FOR TH100996) (SUB FOR AT138222) (CUT TO LENGTH)

4шт.

5

X0103-4-4

ADAPTER FITTING

(SUB FOR TH100963)

3шт.

6

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR TH101993)

2шт.

7

4156405

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH103024)

1шт.

8

X8-10F5OX

ADAPTER FITTING

(SUB FOR TH101006)

1шт.

9

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR TH100061) (SUB FOR U46489)

1шт.

10

4128645

RELIEF VALVE

(SUB FOR TH103023) PILOT

1шт.

11

19M7402

CAP SCREW

M10 X 25

2шт.

12

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

2шт.

13

94-1902

ADAPTER FITTING

(SUB FOR TH102083)

1шт.

14

4053594

CLAMP

(SUB FOR TH100970)

4шт.

15

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

4шт.

16

19M7358

CAP SCREW

M10 X 40

4шт.

17

94-1302

ADAPTER FITTING

(SUB FOR TH101302)

1шт.

18

94-1602

PIPE BUSHING

(SUB FOR TH102085)

1шт.

19

94-0662

TEE FITTING

(SUB FOR TH102082)

1шт.

20

X8F3P4S

ADAPTER FITTING

(SUB FOR TH100960 OR 94-1303)

1шт.

21

4154653

ADAPTER FITTING

(SUB FOR TH100989)

1шт.

22

4190226

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH102080) (SUB FOR TH106140)

1шт.

23

4154672

ELBOW FITTING

(SUB FOR TH101008)

1шт.

24

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR TH100061) (SUB FOR U46489)

1шт.

25

8028827

LINE

(SUB FOR TH103022)

1шт.

26

4154658

ELBOW FITTING

(SUB FOR TH101039)

1шт.

27

8028953

OIL LINE

(SUB FOR TH103025)

1шт.

28

M800650

PACKING

(SUB FOR TH100716)

1шт.

29

4154670

ELBOW FITTING

(SUB FOR TH100951)

2шт.
