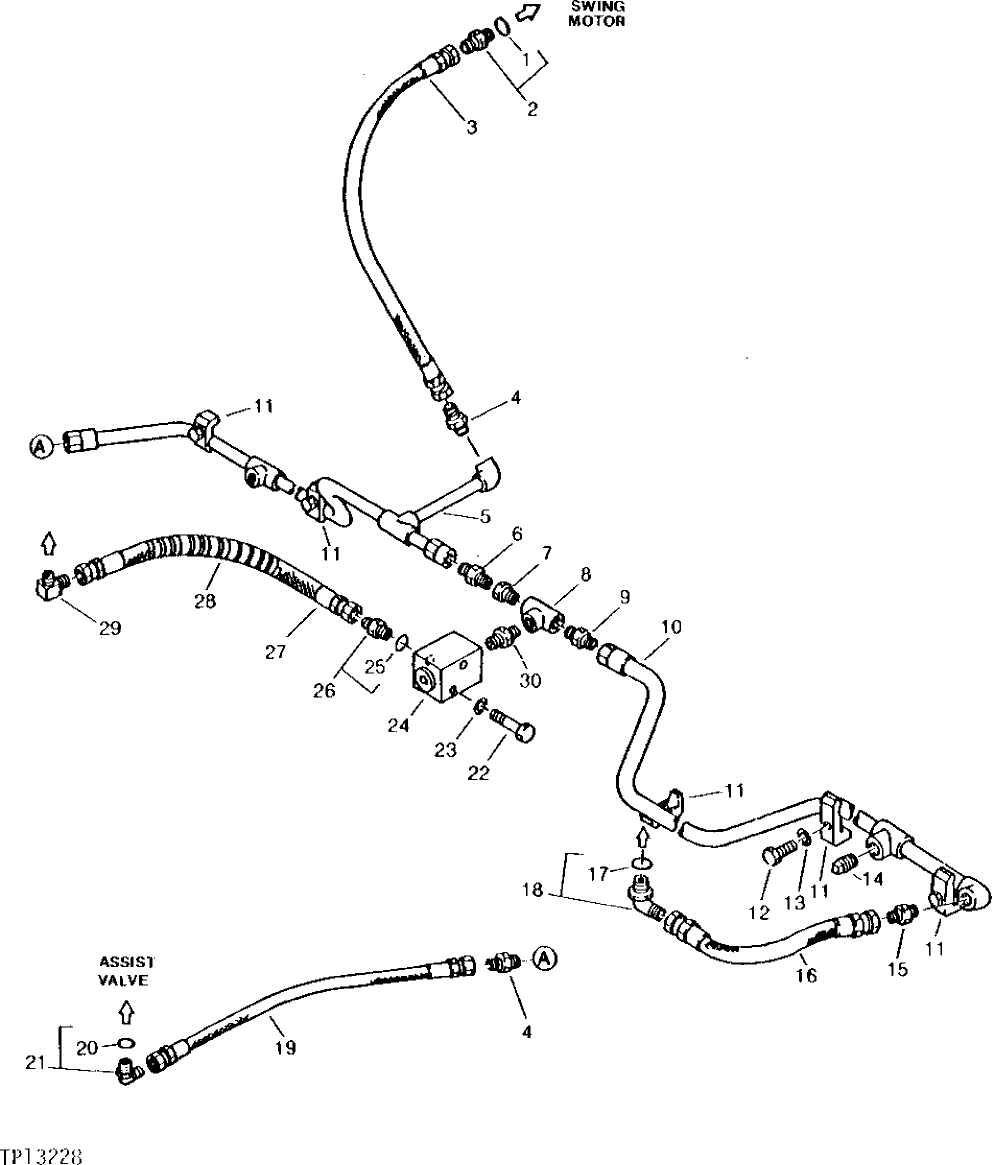

Запчасти John Deere 90 56 - PILOT PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

1

M800650

PACKING

(SUB FOR TH100716)

1шт.

2

4200465

ADAPTER FITTING

(SUB FOR TH101059) (SUB FOR TH108328)

1шт.

3

AE42282

HYDRAULIC HOSE

7/16" X 900 MM (35-1/2") X 7/16", (SUB FOR TH102089)

1шт.

4

X0103-4-4

ADAPTER FITTING

(SUB FOR TH100963)

2шт.

5

8029396

OIL LINE

(SUB FOR TH102086)

1шт.

6

94-1302

ADAPTER FITTING

(SUB FOR TH101302)

1шт.

7

94-1602

PIPE BUSHING

(SUB FOR TH102085)

1шт.

8

94-0662

TEE FITTING

(SUB FOR TH102082)

1шт.

9

X8F3P4S

ADAPTER FITTING

(SUB FOR TH100960 OR 94-1303)

1шт.

10

8026658

OIL LINE

(SUB FOR TH102081)

1шт.

11

4053594

CLAMP

(SUB FOR TH100970)

5шт.

12

19M7358

CAP SCREW

M10 X 40

5шт.

13

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

1шт.

14

R30298

PIPE PLUG

9.525 MM (3/8") (SUB FOR TH101892)

1шт.

15

4154653

ADAPTER FITTING

(SUB FOR TH100989)

1шт.

16

4190226

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH102080) (SUB FOR TH106140) (TO PILOT PUMP)

1шт.

17

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR TH100061) (SUB FOR U46489)

1шт.

18

4154672

ELBOW FITTING

(SUB FOR TH101008)

1шт.

19

AH97777

HYDRAULIC HOSE

7/16" X 407 MM (16") X 7/16", (SUB FOR TH102087)

1шт.

20

M800650

PACKING

(SUB FOR TH100716)

1шт.

21

4154670

ELBOW FITTING

(SUB FOR TH100951)

1шт.

22

19M7402

CAP SCREW

M10 X 25

2шт.

23

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

7шт.

24

4160111

RELIEF VALVE

(SUB FOR TH102088) PILOT

1шт.

25

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR TH100061) (SUB FOR U46489)

1шт.

26

X8-10F5OX

ADAPTER FITTING

(SUB FOR TH101006)

1шт.

27

TH101005

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH102084) (TO OIL COOLER PIPINGS)

1шт.

28

3052919

TUBE

(SUB FOR TH100996) (SUB FOR AT138222) (CUT TO LENGTH)

1шт.

29

4154658

ELBOW FITTING

(SUB FOR TH101039)

1шт.

30

94-1902

ADAPTER FITTING

(SUB FOR TH102083)

1шт.
