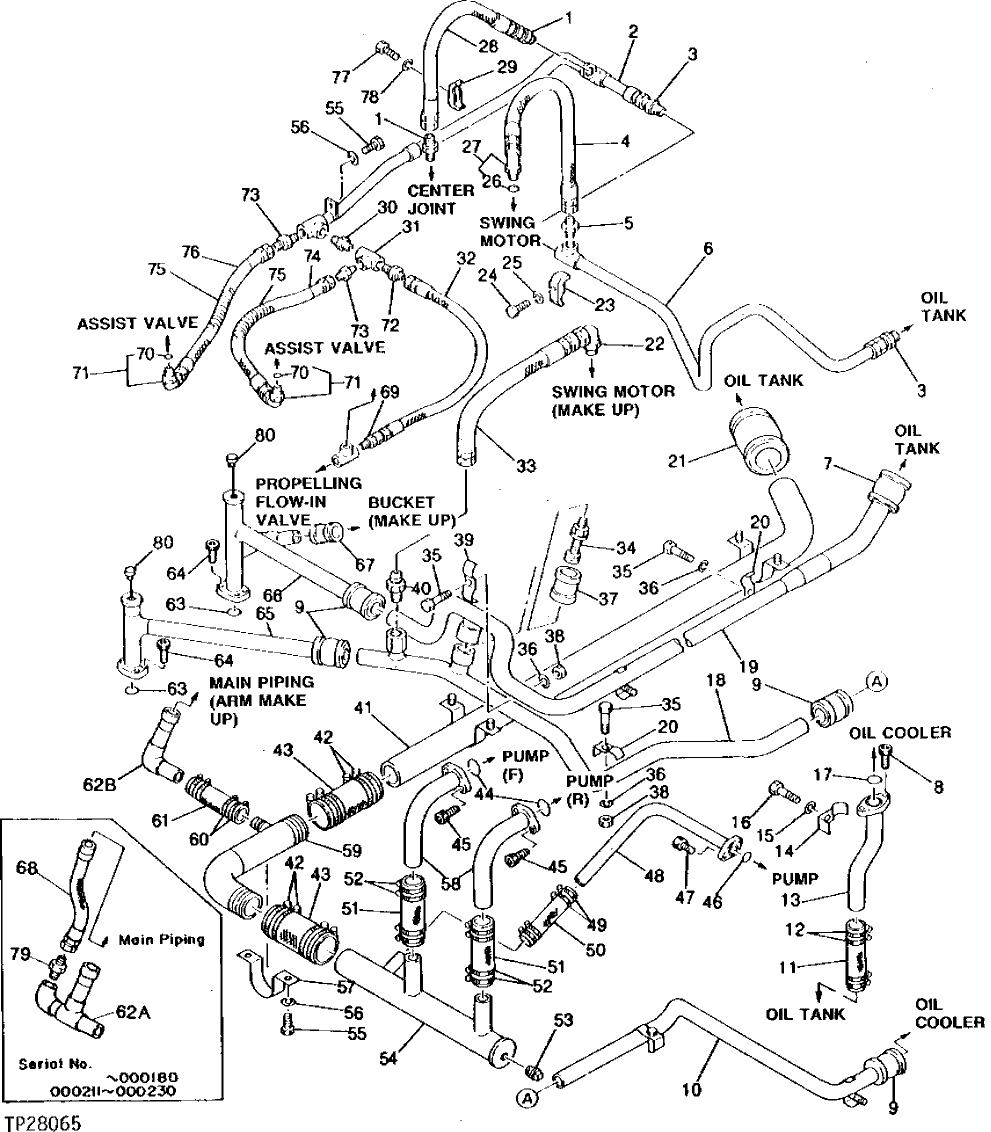

Запчасти John Deere 90 54 - SUCTION, RETURN AND OIL COOLER PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

40

4156432

ADAPTER FITTING

(SUB FOR TH101939)

1шт.

41

8026222

OIL LINE

(SUB FOR TH102936)

1шт.

42

AT50923

HOSE CLAMP

(SUB FOR AR21842, THIS APPLICATION)

8шт.

43

4167091

HOSE

(SUB FOR TH101901)

2шт.

44

CH11436

O-RING

(SUB FOR TH100004)

2шт.

45

19M8448

SCREW

M12 X 35, (SUB FOR TH101907)

4шт.

46

AT264324

O-RING

(SUB FOR TH101912, T32587, TH100044)

1шт.

47

19H2922

SCREW

9.525 X 31.750 MM (3/8" X 1-1/4") (SUB FOR TH101911)

2шт.

48

8029129

OIL LINE

(SUB FOR TH102939)

1шт.

49

TY22467

CLAMP

(SUB FOR TH101909 OR AR21839, THIS APPLICATION) (SUB FOR AT145650)

4шт.

50

HOSE

(SUB FOR TH101908) ( 4033338 NOT AVAILABLE FOR SERVICE) (FURNISH TY22556 BULK MATERIAL CUT TO 200 MM LENTH)

1шт.

51

4081954

HOSE

(SUB FOR TH101904)

2шт.

52

AT105289

CLAMP

(SUB FOR TH101905, THIS APPLICATION) (SUB FOR TH103473)

8шт.

53

94-2026

PLUG

(SUB FOR TH101903)

1шт.

54

8037645

LINE

(SUB FOR TH106971)

1шт.

55

19M7402

CAP SCREW

M10 X 25

7шт.

56

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

7шт.

57

4000909

CLAMP

(SUB FOR TH101935)

3шт.

58

8029130

OIL LINE

(SUB FOR TH102938)

2шт.

59

9726058

LINE

(SUB FOR TH105669) (SUB FOR TH102940 ALONG WITH TH106971)

1шт.

60

TY22470

CLAMP

(SUB FOR TH102960) (SUB FOR AR21840, THIS APPLICATION) (SUB FOR AR65293)

4шт.

61

4120255

HOSE

(CUT TO LENGTH) (SUB FOR TH102959) (SUB FOR AT122226)

1шт.

62A

8030174

OIL LINE

(SUB FOR TH102958)

1шт.

8030174

OIL LINE

(SUB FOR TH102958)

1шт.

62B

9722742

LINE

(SUB FOR TH103476)

1шт.

9722742

LINE

(SUB FOR TH103476)

1шт.

63

CH14701

O-RING

39.400 X 3.100 MM (1.551" X 0.122") (SUB FOR TH101914)

2шт.

64

19M8447

SCREW

M10 X 35, (SUB FOR TH100941)

8шт.

65

8031168

OIL LINE

(SUB FOR TH102941)

1шт.

66

8031167

OIL LINE

(SUB FOR TH102943)

1шт.

67

4071213

COUPLING

(SUB FOR TH101923) (AFTER SERIAL NO., INCLUDES SEALS)

1шт.

4196258

SEAL

(SUB FOR TH106965)

2шт.

68

4162533

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH102942)

1шт.

4162533

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH102942)

1шт.

69

X0103-4-4

ADAPTER FITTING

(SUB FOR TH100963)

1шт.

70

M800650

PACKING

(SUB FOR TH100716)

1шт.

71

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

2шт.

72

4156430

ADAPTER FITTING

(SUB FOR TH101937)

1шт.

73

T115957

ADAPTER FITTING

(SUB FOR TH101034)

2шт.

74

AT84721

KIT

(SUB FOR TH102952)

1шт.

75

HOSE GUARD

(FURNISH XHG-075 CUT TO LENGTH) (SUB FOR TH100996) (SUB FOR AT138222)

2шт.

76

AR86055

HYDRAULIC HOSE

9/16" X 622 MM (24-1/2") X 9/16", (SUB FOR TH102951)

1шт.

77

19M7572

CAP SCREW

M10 X 45

1шт.

78

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

1шт.

79

4156432

ADAPTER FITTING

(SUB FOR TH101939)

1шт.

4156432

ADAPTER FITTING

(SUB FOR TH101939)

1шт.

80

94-2011

FITTING PLUG

(SUB FOR TH100434)

2шт.
