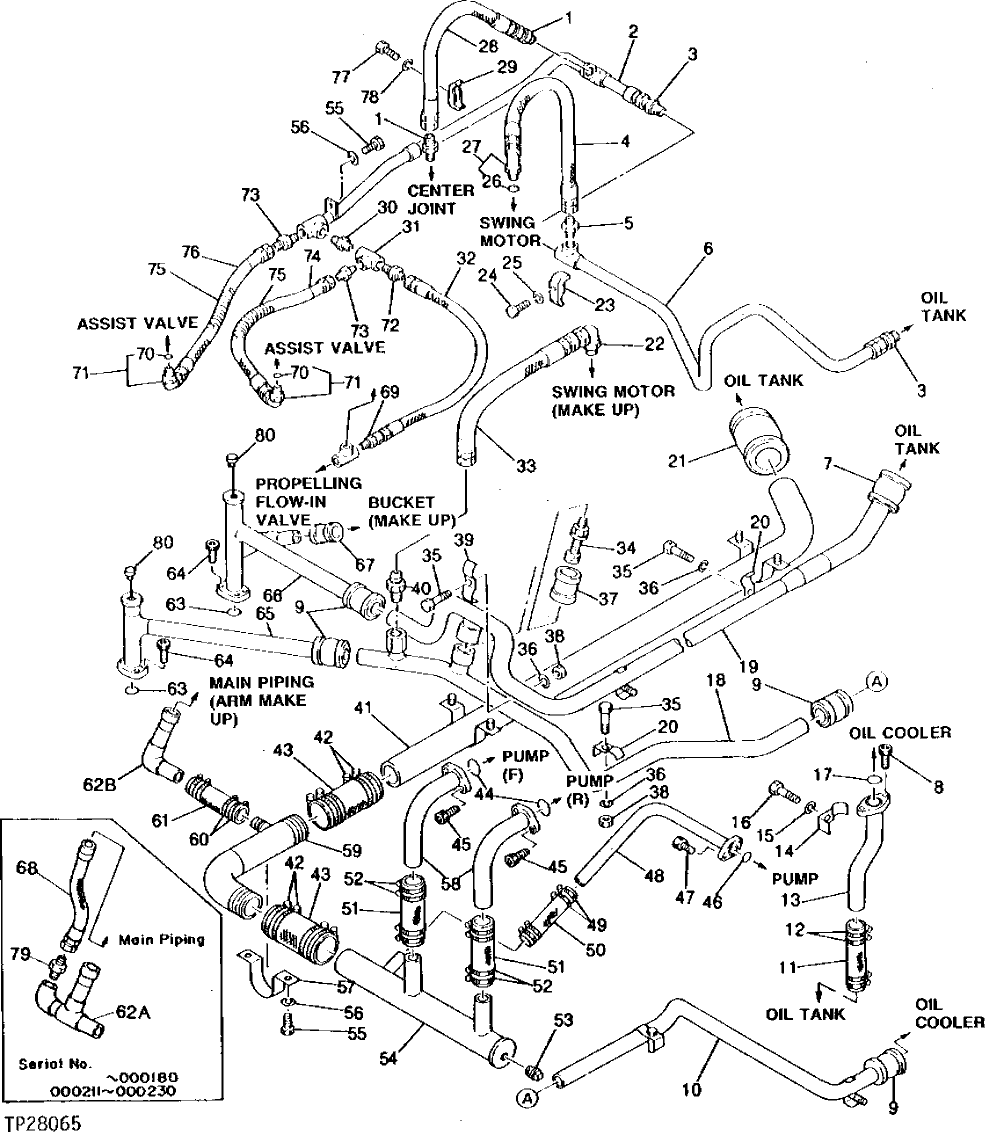

Запчасти John Deere 90 52 - SUCTION, RETURN AND OIL COOLER PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

1

4154653

ADAPTER FITTING

(SUB FOR TH100989)

2шт.

2

7013720

OIL LINE

(SUB FOR TH102955)

1шт.

3

94-1304

THREADED NIPPLE

(SUB FOR TH100985)

2шт.

4

TH101963

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH102948)

1шт.

5

4154654

ADAPTER FITTING

(SUB FOR TH100942)

1шт.

6

7012688

OIL LINE

(SUB FOR TH102947)

1шт.

7

4067834

COUPLING

(SUB FOR TH102945) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY)

1шт.

4067834

COUPLING

(SUB FOR TH102945) (AFTER SERIAL NO., INCLUDES SEALS)

1шт.

4196260

SEAL

(SUB FOR TH106967)

2шт.

8

19M8448

SCREW

M12 X 35, (SUB FOR TH101907)

2шт.

9

4069801

COUPLING

(SUB FOR TH101915) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY)

4шт.

4069801

COUPLING

(SUB FOR TH101915) (AFTER SERIAL NO., INCLUDES SEALS)

4шт.

4196259

SEAL

(SUB FOR TH106966)

2шт.

10

8028828

OIL LINE

(SUB FOR TH102957)

1шт.

11

TY24405

BULK HOSE

(SUB FOR TH101919, 4080206)

1шт.

12

RE25110

CLAMP

(SUB FOR AR21840, THIS APPLICATION)

4шт.

13

8029374

OIL LINE

(SUB FOR TH101918)

1шт.

14

4053698

CLAMP

(SUB FOR TH101936)

1шт.

15

12H301

LOCK WASHER

12.700 MM (1/2") (SUB FOR TH100413)

1шт.

16

19M8348

CAP SCREW

M12 X 65

1шт.

17

CH11436

O-RING

(SUB FOR TH100004)

1шт.

18

7015064

OIL LINE

(SUB FOR TH102944)

1шт.

19

7015063

OIL LINE

(SUB FOR TH102956)

1шт.

20

4053698

CLAMP

(SUB FOR TH101936)

5шт.

21

4071215

COUPLING

(SUB FOR TH101898) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY)

1шт.

4071215

COUPLING

(SUB FOR TH101898) (AFTER SERIAL NO., INCLUDES SEALS)

1шт.

4196267

SEAL

(SUB FOR TH106969)

2шт.

22

4156436

ELBOW FITTING

(INCLUDES TH101926) (SUB FOR TH101925)

1шт.

TH101926

O-RING

28.700 X 3.500 MM (1.130" X 0.138")

1шт.

23

4053595

CLAMP

(SUB FOR TH100947)

1шт.

24

19M7362

CAP SCREW

M12 X 55

1шт.

25

12H301

LOCK WASHER

12.700 MM (1/2") (SUB FOR TH100413)

1шт.

26

4506424

O-RING

23.700 X 3.500 MM (0.933" X 0.138") (SUB FOR TH100055)

1шт.

27

4156435

ELBOW FITTING

(SUB FOR TH101989)

1шт.

28

4190224

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH101929) (SUB FOR TH106134)

1шт.

29

4053594

CLAMP

(SUB FOR TH100970)

1шт.

30

94-1702

ADAPTER FITTING

(SUB FOR TH102949)

1шт.

31

94-0661

TEE FITTING

(SUB FOR TH102950)

1шт.

32

AE42282

HYDRAULIC HOSE

7/16" X 900 MM (35-1/2") X 7/16", (SUB FOR TH102953)

1шт.

33

4156408

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH102954)

1шт.

34

4108923

FLOW CONTROL HYD. VALVE

(SUB FOR TH101933) COOLER BYPASS

1шт.

35

19M7753

CAP SCREW

M12 X 70

6шт.

36

12H301

LOCK WASHER

12.700 MM (1/2") (SUB FOR TH100413)

6шт.

37

4067833

COUPLING

(SUB FOR TH101934) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY)

1шт.

4067833

COUPLING

(SUB FOR TH101934) (AFTER SERIAL NO., INCLUDES SEALS)

1шт.

4196261

SEAL

(SUB FOR TH106968)

2шт.

38

14M7275

NUT

M12

4шт.

39

4053696

CLAMP

(SUB FOR TH102946)

1шт.
