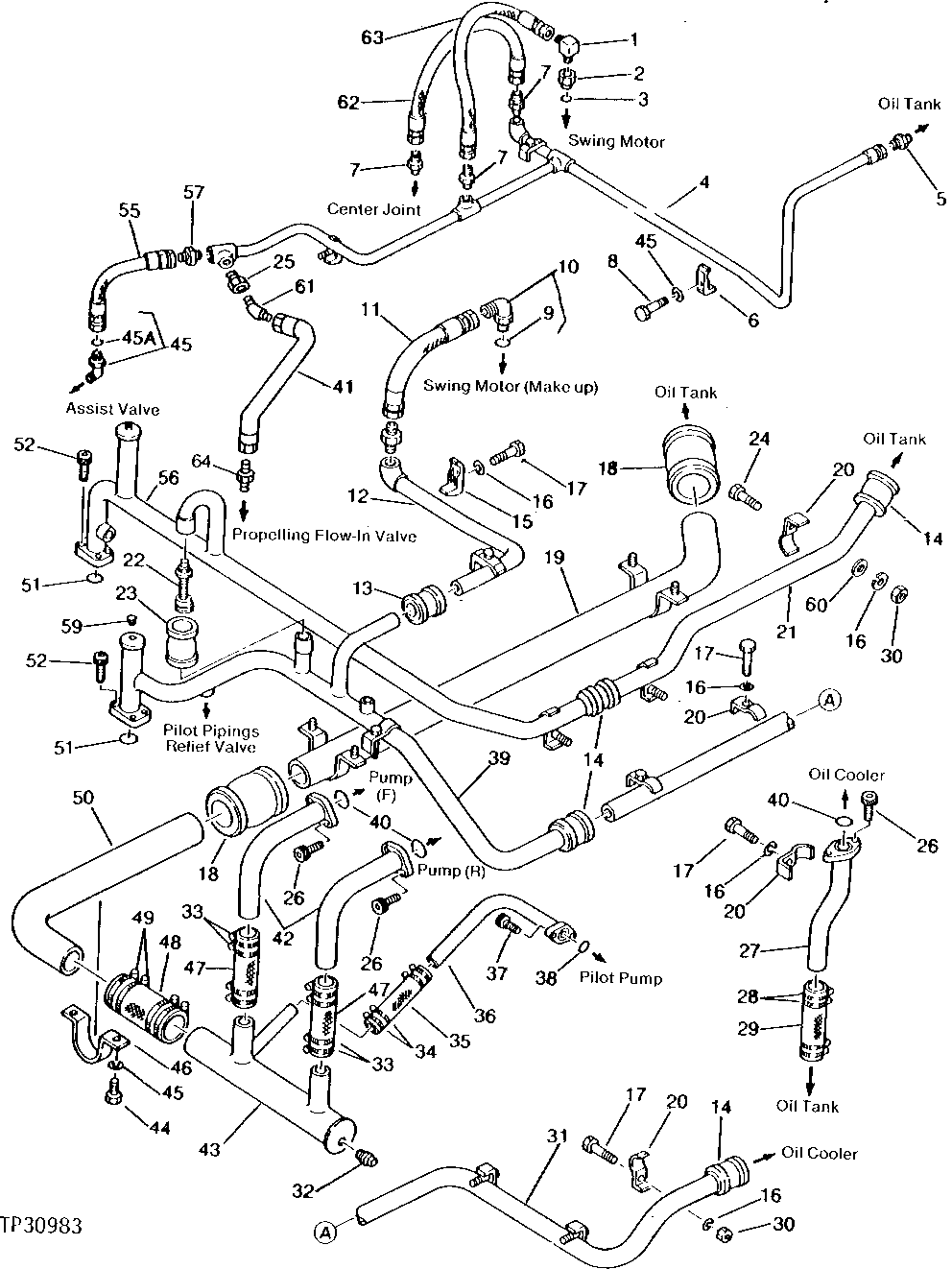

Запчасти John Deere 90 50 - SUCTION, RETURN AND OIL COOLER PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

26

19M8448

SCREW

M12 X 35, (SUB FOR TH101907)

6шт.

27

8029374

OIL LINE

(SUB FOR TH101918)

1шт.

28

RE25110

CLAMP

(SUB FOR TH103474)

4шт.

29

TY24405

BULK HOSE

(SUB FOR TH101919, 4080206)

1шт.

30

14M7275

NUT

M12

1шт.

31

3031589

TUBE

(SUB FOR TH103464)

1шт.

3035286

TUBE

(SUB FOR TH106989)

1шт.

32

94-2026

PLUG

(SUB FOR TH101903)

1шт.

33

AT105289

CLAMP

(SUB FOR TH101905, THIS APPLICATION) (SUB FOR TH103473)

8шт.

34

TY22467

CLAMP

(SUB FOR TH101909 OR AR21839, THIS APPLICATION) (SUB FOR AT145650)

4шт.

35

HOSE

(SUB FOR TH101908) ( 4033338 NOT AVAILABLE FOR SERVICE) (FURNISH TY22556 BULK MATERIAL CUT TO 200 MM LENGTH)

1шт.

36

8029148

OIL LINE

(SUB FOR TH101910)

1шт.

37

19H2922

SCREW

9.525 X 31.750 MM (3/8" X 1-1/4") (SUB FOR TH101911)

2шт.

38

AT264324

O-RING

(SUB FOR TH101912, T32587, TH100044)

1шт.

39

7015037

OIL LINE

(SUB FOR TH101913)

1шт.

40

CH11436

O-RING

(SUB FOR TH100004)

3шт.

41

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR TH101938)

1шт.

42

TH101906

OIL LINE

2шт.

43

8037646

LINE

(SUB FOR TH101902) (SUB FOR TH106970)

1шт.

44

19M7938

CAP SCREW

M10 X 20

6шт.

45

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

9шт.

46

4000909

CLAMP

(SUB FOR TH101935)

3шт.

47

4081954

HOSE

(SUB FOR TH101904)

2шт.

48

4167091

HOSE

(SUB FOR TH101901)

1шт.

49

AT50923

HOSE CLAMP

(SUB FOR AR21842, THIS APPLICATION)

4шт.

50

9718021

LINE

(SUB FOR TH101900)

1шт.

51

CH14701

O-RING

39.400 X 3.100 MM (1.551" X 0.122") (SUB FOR TH101914)

2шт.

52

19M8447

SCREW

M10 X 35, (SUB FOR TH100941)

8шт.

53

M800650

PACKING

(SUB FOR TH100716)

1шт.

54

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

55

AR98204

HYDRAULIC HOSE

9/16" X 407 MM (16") X 9/16", (SUB FOR TH101931)

1шт.

56

7015249

TUBE

(SUB FOR TH103465)

1шт.

57

T115957

ADAPTER FITTING

(SUB FOR TH101034)

1шт.

58

4156432

ADAPTER FITTING

(SUB FOR TH101939)

1шт.

59

94-2011

FITTING PLUG

(SUB FOR TH100434)

2шт.

60

24M7047

WASHER

13 X 24 X 2.500 MM (0.512" X 0.945" X 0.098") (SUB FOR TH100967)

3шт.

61

4154655

ELBOW FITTING

(SUB FOR TH101056)

1шт.

62

4190224

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH101929) (SUB FOR TH106134)

1шт.

63

AT42233

HYDRAULIC HOSE

3/4" X 762 MM (30") X 3/4", (SUB FOR TH101927 OR TH106148)

1шт.

64

X0103-4-4

ADAPTER FITTING

(SUB FOR TH100963)

1шт.
