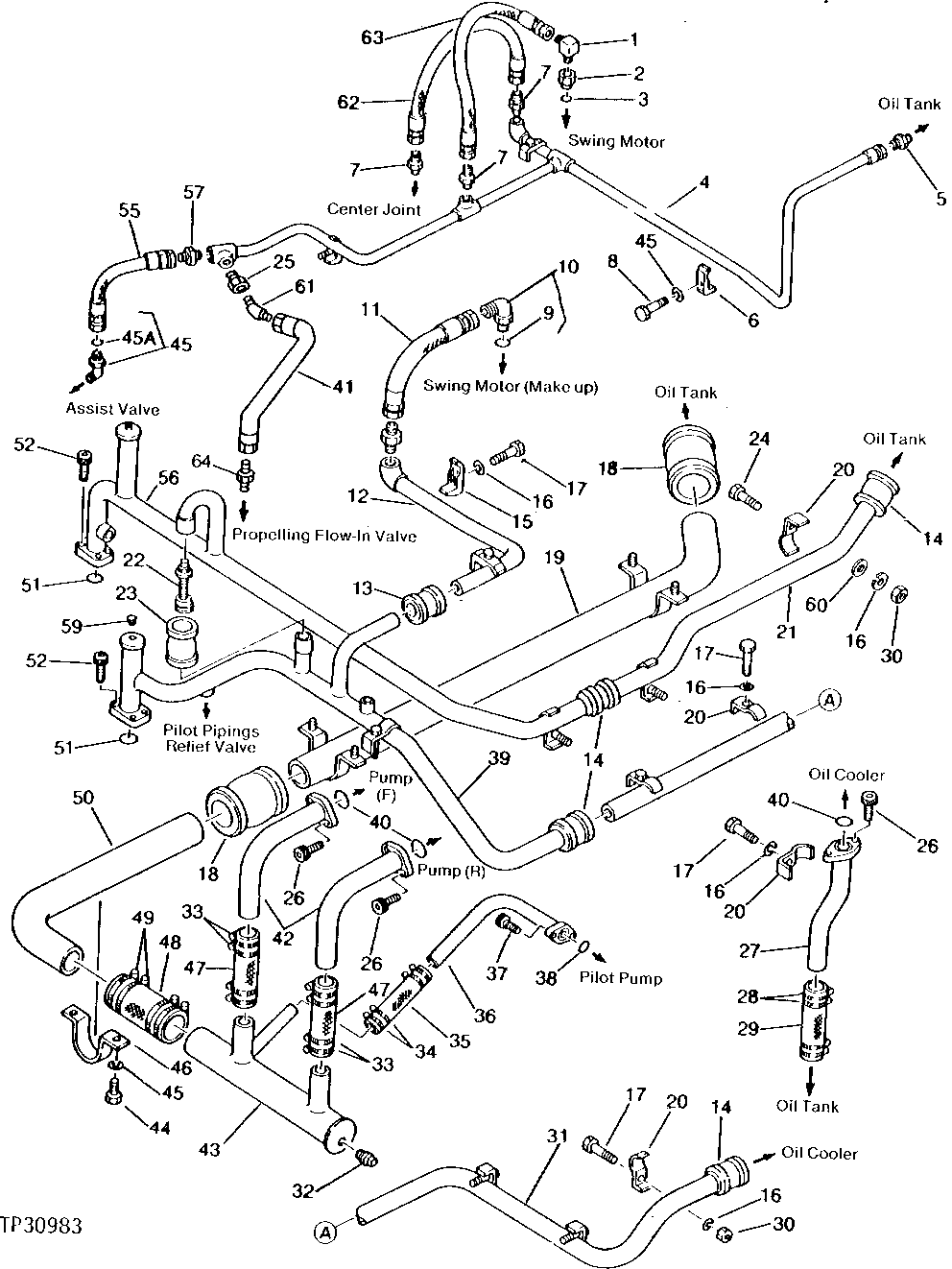

Запчасти John Deere 90 48 - SUCTION, RETURN AND OIL COOLER PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

1

4154658

ELBOW FITTING

(SUB FOR TH101039)

1шт.

2

4145238

BUSHING

(SUB FOR TH101928)

1шт.

3

4506424

O-RING

23.700 X 3.500 MM (0.933" X 0.138") (SUB FOR TH100055)

1шт.

4

7012884

OIL LINE

(SUB FOR TH101932)

1шт.

5

X8F3P4S

ADAPTER FITTING

(SUB FOR TH100960 OR 94-1303)

1шт.

6

4053594

CLAMP

(SUB FOR TH100970)

3шт.

7

4154653

ADAPTER FITTING

(SUB FOR TH100989)

3шт.

8

19M7572

CAP SCREW

M10 X 45

3шт.

9

TH101926

O-RING

28.700 X 3.500 MM (1.130" X 0.138")

1шт.

10

4156436

ELBOW FITTING

(SUB FOR TH101925)

1шт.

11

4163066

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH101924)

1шт.

12

9720153

LINE

(SUB FOR TH101922)

1шт.

13

4071213

COUPLING

(SUB FOR TH101923) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY)

1шт.

4071213

COUPLING

(SUB FOR TH101923) (AFTER SERIAL NO., INCLUDES SEALS)

1шт.

4196258

SEAL

(SUB FOR TH106965)

2шт.

14

4069801

COUPLING

(SUB FOR TH101915) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY)

4шт.

4069801

COUPLING

(SUB FOR TH101915) (AFTER SERIAL NO., INCLUDES SEALS)

4шт.

4196259

SEAL

(SUB FOR TH106966)

8шт.

15

4053598

CLAMP

(SUB FOR TH101032)

2шт.

16

12H301

LOCK WASHER

12.700 MM (1/2") (SUB FOR TH100413)

10шт.

17

19M8348

CAP SCREW

M12 X 65

7шт.

18

4071215

COUPLING

(SUB FOR TH101898) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY) (INCLUDES CLAMPS)

2шт.

4071215

COUPLING

(SUB FOR TH101898) (AFTER SERIAL NO., INCLUDES SEALS) (INCLUDES CLAMPS)

2шт.

4196267

SEAL

(SUB FOR TH106969)

4шт.

19

3026463

LINE

(SUB FOR TH101899)

1шт.

20

4053698

CLAMP

(SUB FOR TH101936)

8шт.

21

TH103466

TUBE

1шт.

22

4108923

FLOW CONTROL HYD. VALVE

(SUB FOR TH101933) COOLER BYPASS

1шт.

23

4067833

COUPLING

(SUB FOR TH101934) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY)

1шт.

4067833

COUPLING

(SUB FOR TH101934) (AFTER SERIAL NO., INCLUDES SEALS)

1шт.

4196261

SEAL

(SUB FOR TH106968)

2шт.

24

19M7753

CAP SCREW

M12 X 70

3шт.

25

94-1601

PIPE BUSHING

(SUB FOR TH103472)

1шт.
