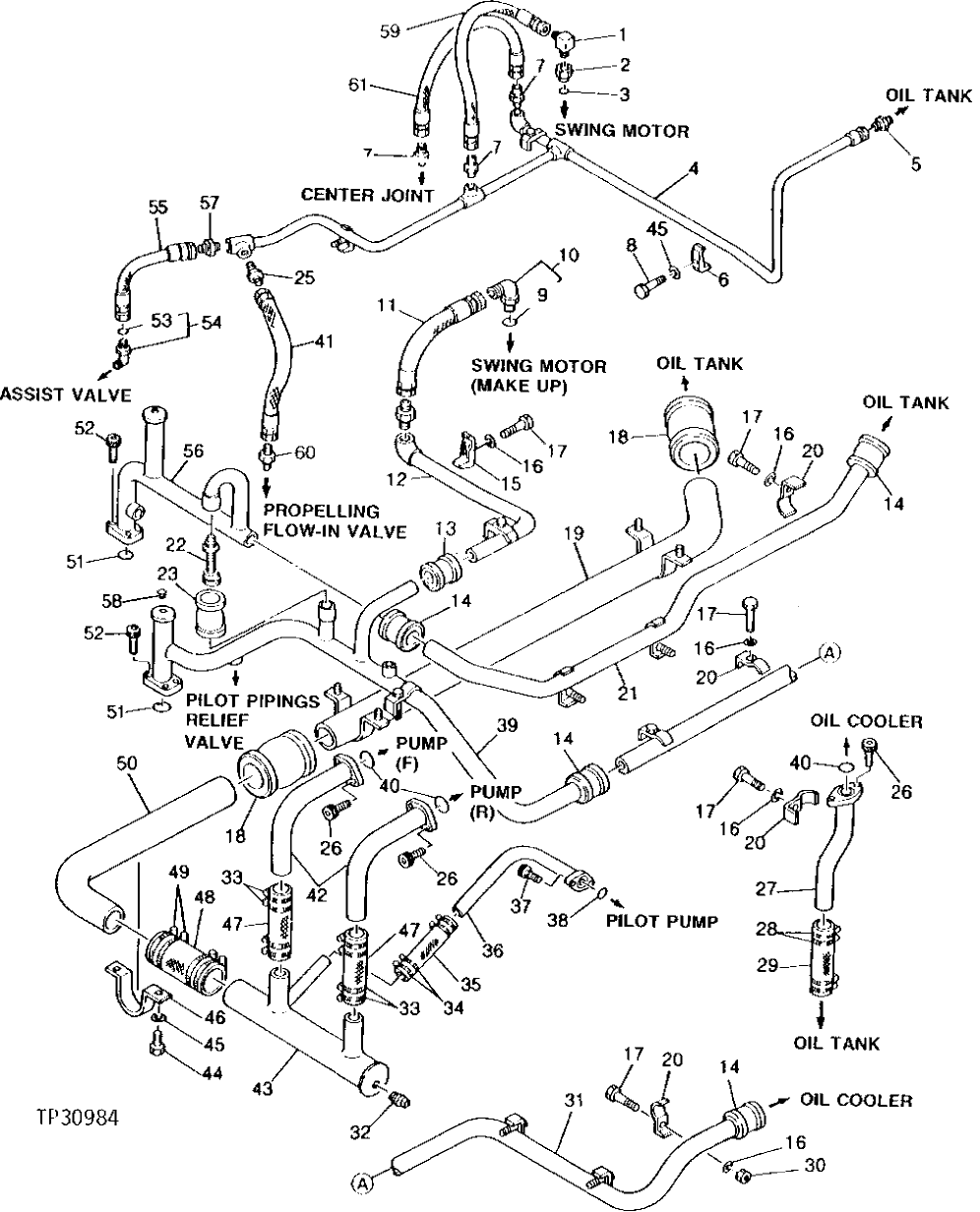

Запчасти John Deere 90 46 - SUCTION, RETURN AND OIL COOLER PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

45

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

9шт.

46

4000909

CLAMP

(SUB FOR TH101935)

3шт.

47

4081954

HOSE

(SUB FOR TH101904)

2шт.

48

4167091

HOSE

(SUB FOR TH101901)

1шт.

49

AR21842

CLAMP

4шт.

50

9718021

LINE

(SUB FOR TH101900)

1шт.

51

CH14701

O-RING

39.400 X 3.100 MM (1.551" X 0.122") (SUB FOR TH101914)

2шт.

52

19M8447

SCREW

M10 X 35, (SUB FOR TH100941)

8шт.

53

M800650

PACKING

(SUB FOR TH100716)

1шт.

54

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

55

AR98204

HYDRAULIC HOSE

9/16" X 407 MM (16") X 9/16", (SUB FOR TH101931)

1шт.

56

7015249

TUBE

(SUB FOR TH103465)

1шт.

57

T115957

ADAPTER FITTING

(SUB FOR TH101034)

1шт.

58

4156432

ADAPTER FITTING

(SUB FOR TH101939)

1шт.

59

AT42233

HYDRAULIC HOSE

3/4" X 762 MM (30") X 3/4", (SUB FOR TH101927 OR TH106148)

1шт.

60

X0103-4-4

ADAPTER FITTING

(SUB FOR TH100963)

1шт.

61

4190224

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH101929) (SUB FOR TH106134)

1шт.
