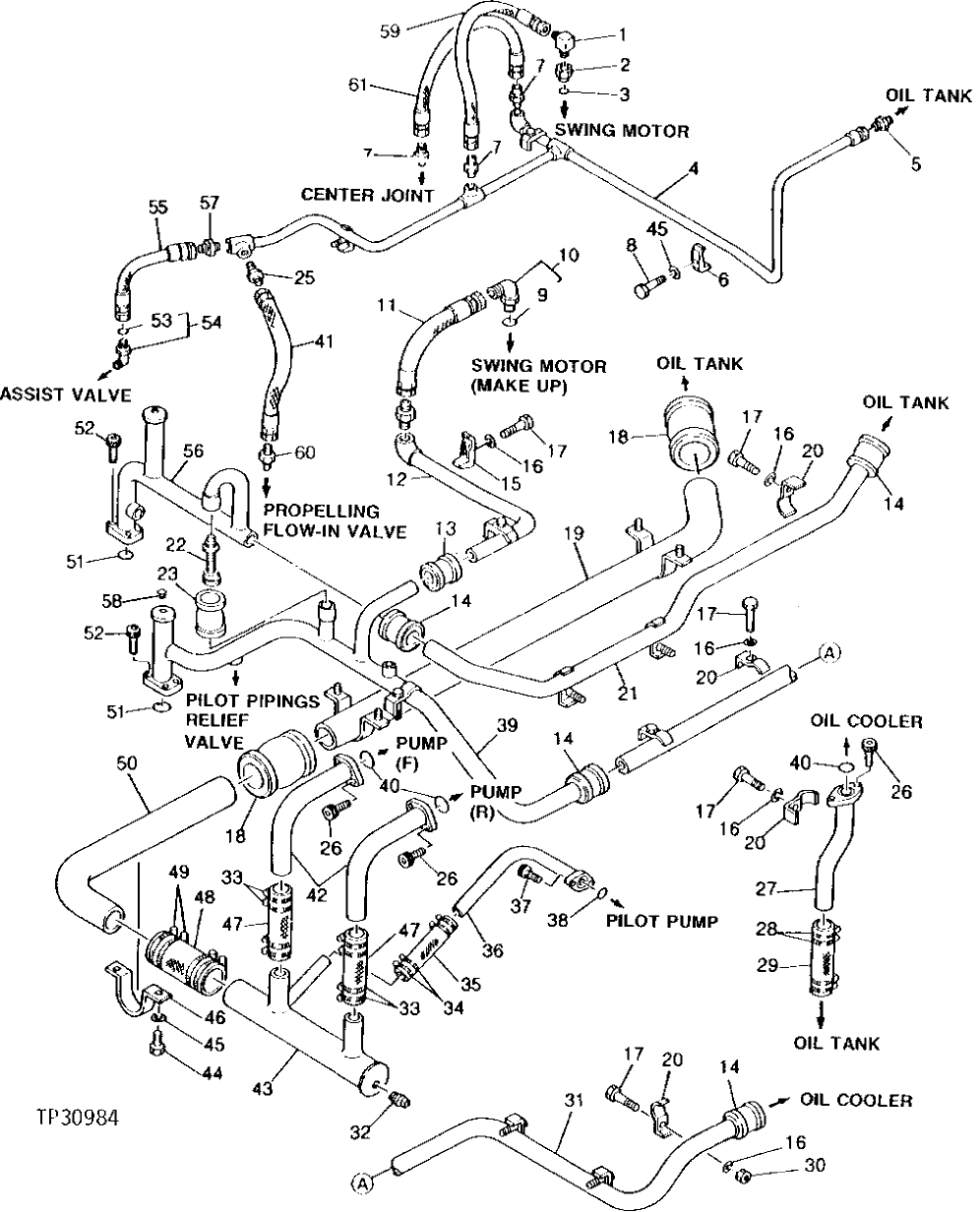

Запчасти John Deere 90 44 - SUCTION, RETURN AND OIL COOLER PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

1

4154658

ELBOW FITTING

(SUB FOR TH101039)

1шт.

2

4145238

BUSHING

(SUB FOR TH101928)

1шт.

3

4506424

O-RING

23.700 X 3.500 MM (0.933" X 0.138") (SUB FOR TH100055)

1шт.

4

7012884

OIL LINE

(SUB FOR TH101932)

1шт.

5

X8F3P4S

ADAPTER FITTING

(SUB FOR TH100960 OR 94-1303)

1шт.

6

4053594

CLAMP

(SUB FOR TH100970)

3шт.

7

4154653

ADAPTER FITTING

(SUB FOR TH100989)

3шт.

8

19M7572

CAP SCREW

M10 X 45

3шт.

9

TH101926

O-RING

28.700 X 3.500 MM (1.130" X 0.138")

1шт.

10

4156436

ELBOW FITTING

(SUB FOR TH101925)

1шт.

11

4163066

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH101924)

1шт.

12

9720153

LINE

(SUB FOR TH101922)

1шт.

13

4071213

COUPLING

(SUB FOR TH101923) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY)

1шт.

4071213

COUPLING

(SUB FOR TH101923) (AFTER SERIAL NO., INCLUDES SEALS)

1шт.

4196258

SEAL

(SUB FOR TH106965)

2шт.

14

4069801

COUPLING

(SUB FOR TH101915) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY)

5шт.

4069801

COUPLING

(SUB FOR TH101915) (AFTER SERIAL NO., INCLUDES SEALS)

5шт.

4196259

SEAL

(SUB FOR TH106966)

10шт.

15

4053598

CLAMP

(SUB FOR TH101032)

2шт.

16

12H301

LOCK WASHER

12.700 MM (1/2") (SUB FOR TH100413)

11шт.

17

19M8348

CAP SCREW

M12 X 65

11шт.

18

4071215

COUPLING

(SUB FOR TH101898) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY)

2шт.

4071215

COUPLING

(SUB FOR TH101898) (AFTER SERIAL NO., INCLUDES SEALS)

2шт.

4196267

SEAL

(SUB FOR TH106969)

4шт.

19

3026463

LINE

(SUB FOR TH101899)

1шт.

20

4053698

CLAMP

(SUB FOR TH101936)

9шт.

21

4168941

TUBE

(SUB FOR TH101921)

1шт.

22

4108923

FLOW CONTROL HYD. VALVE

(SUB FOR TH101933) COOLER BYPASS

1шт.

23

4067833

COUPLING

(SUB FOR TH101934) (BEFORE SERIAL NO., ORDER SEALS SEPARATELY)

1шт.

4067833

COUPLING

(SUB FOR TH101934) (AFTER SERIAL NO., INCLUDES SEALS)

1шт.

4196261

SEAL

(SUB FOR TH106968)

2шт.

24

4167481

TUBE

(SUB FOR TH101916)

1шт.

25

4156430

ADAPTER FITTING

(SUB FOR TH101937)

1шт.

26

19M8448

SCREW

M12 X 35, (SUB FOR TH101907)

6шт.

27

8029374

OIL LINE

(SUB FOR TH101918)

1шт.

28

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999 OR AR21840)

4шт.

29

TY24405

BULK HOSE

(SUB FOR TH101919, 4080206)

1шт.

30

14M7275

NUT

M12

1шт.

31

8029514

LINE

(SUB FOR TH101917)

1шт.

32

94-2026

PLUG

(SUB FOR TH101903)

1шт.

33

TY22470

CLAMP

(SUB FOR TH101905) (SUB FOR AR65293)

8шт.

34

TY22467

CLAMP

(SUB FOR TH101909 OR AR21839, THIS APPLICATION) (SUB FOR AT145650)

4шт.

35

HOSE

(SUB FOR TH101908) ( 4033338 NOT AVAILABLE FOR SERVICE) (FURNISH TY22556 BULK MATERIAL CUT TO 200 MM LENGTH)

1шт.

36

8029148

OIL LINE

(SUB FOR TH101910)

1шт.

37

19H2922

SCREW

9.525 X 31.750 MM (3/8" X 1-1/4") (SUB FOR TH101911)

2шт.

38

AT264324

O-RING

(SUB FOR TH101912, T32587, TH100044)

1шт.

39

7015037

OIL LINE

(SUB FOR TH101913)

1шт.

40

CH11436

O-RING

(SUB FOR TH100004)

3шт.

41

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR TH101938)

1шт.

42

TH101906

OIL LINE

2шт.

43

8037646

LINE

(SUB FOR TH101902) (SUB FOR TH106970)

1шт.

44

19M7938

CAP SCREW

M10 X 20

6шт.
