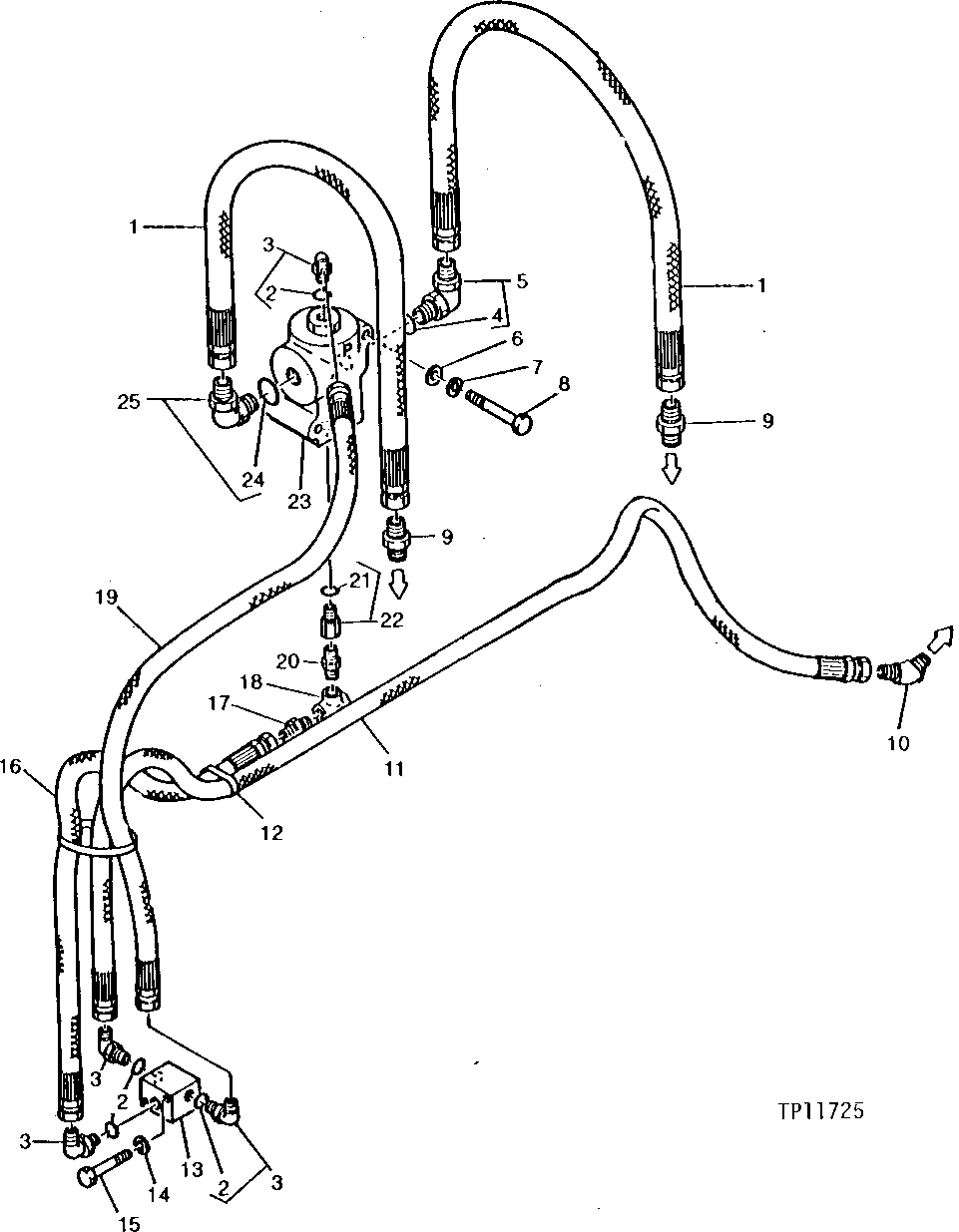

Запчасти John Deere 90 40 - FLOW COMBINER VALVE AND PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

1

TH102002

HYDRAULIC HOSE - FABRICATE

(TO CONTROL VALVE)

2шт.

2

M800650

PACKING

(SUB FOR TH100716)

1шт.

3

4154670

ELBOW FITTING

(SUB FOR TH100951)

4шт.

4

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

5

4154672

ELBOW FITTING

(SUB FOR TH101008)

1шт.

6

24M7028

WASHER

10.500 X 20 X 2 MM (0.413" X 0.787" X 0.079") (SUB FOR TH100263)

2шт.

7

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

2шт.

8

19M7329

CAP SCREW

M10 X 75, (SUB FOR TH101999)

2шт.

9

4154653

ADAPTER FITTING

(SUB FOR TH101995) (SUB FOR TH100989)

2шт.

10

4154655

ELBOW FITTING

(SUB FOR TH101056)

1шт.

11

AH96002

HYDRAULIC HOSE

7/16" X 1 118 MM (44") X 7/16", (SUB FOR TH101994) (PILOT PIPE)

1шт.

12

H77698

TIE BAND

(SUB FOR TH102001 OR M88199)

5шт.

13

4135337

VALVE

(SUB FOR TH101992) VALVE

1шт.

14

12M7006

LOCK WASHER

6 MM (0.236") (SUB FOR TH100548)

2шт.

15

19M8329

CAP SCREW

M6 X 50

2шт.

16

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR TH101938)

1шт.

17

X0103-4-4

ADAPTER FITTING

(SUB FOR TH100963)

1шт.

18

J70482

TEE FITTING

(SUB FOR TH101998)

1шт.

19

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR TH101993)

1шт.

20

T116057

FITTING

(SUB FOR TH101997)

1шт.

21

M800650

PACKING

(SUB FOR TH100716)

1шт.

22

4138898

ADAPTER FITTING

(SUB FOR TH101996)

1шт.

23

4135336

VALVE

(SUB FOR TH101991) FLOW COMBINER

1шт.

24

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR TH100061) (SUB FOR U46489)

1шт.

25

4154672

ELBOW FITTING

(SUB FOR TH101008)

2шт.
