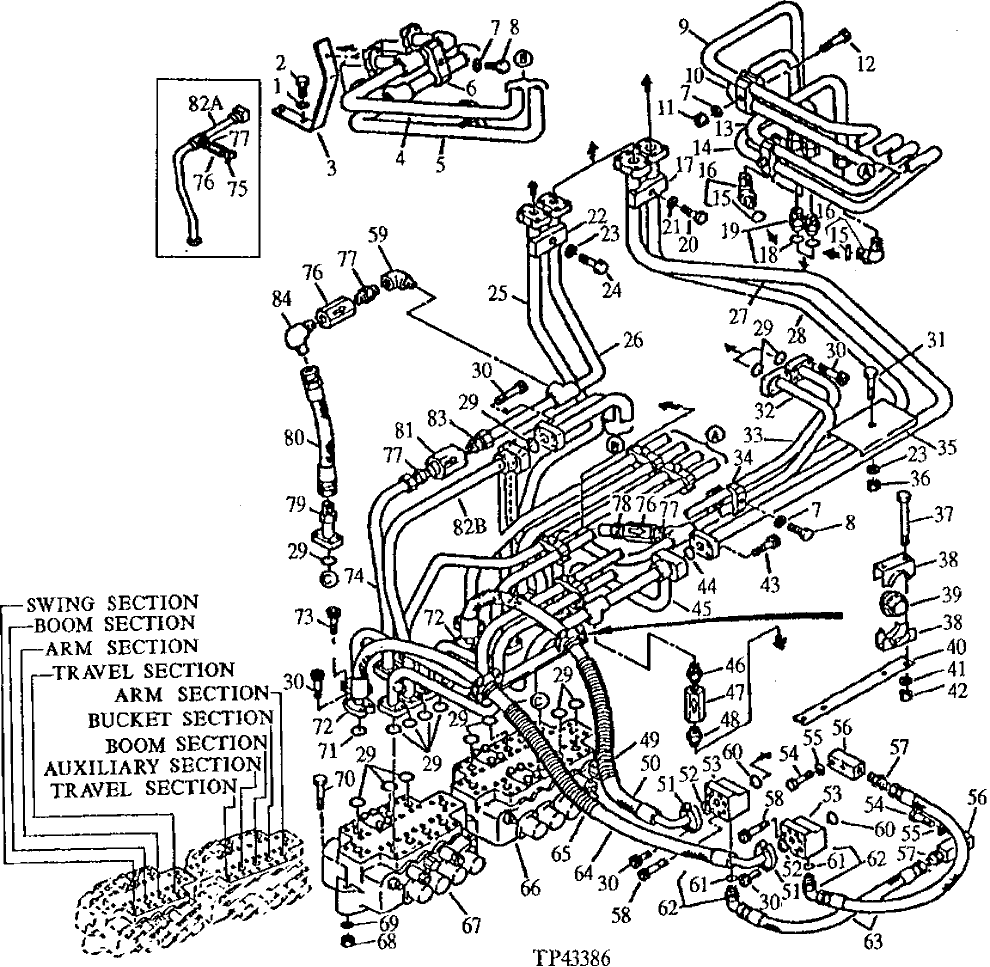

Запчасти John Deere 90 34 - MAIN PIPINGS 2160 - MAIN HYDRAULIC SYSTEM 21

41

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

4шт.

42

14M7274

NUT

M10

4шт.

43

19M8734

SCREW

M14 X 45, (SUB FOR TH102991)

4шт.

44

A811040

O-RING

39.400 X 3.100 MM (1.551" X 0.122") (SUB FOR TH102992)

1шт.

45

7014567

OIL LINE

(SUB FOR TH102975)

1шт.

46

TH102979

THREADED NIPPLE

1шт.

47

9065510

CHECK VALVE

CHECK VALVE, (SUB FOR TH101970) (SUB FOR TH107984)

3шт.

48

TH102979

THREADED NIPPLE

1шт.

49

GUARD

( TH102967, NO LONGER USED)

1шт.

50

4143054

HYDRAULIC HOSE

(FRONT PUMP) (SUB FOR TH102966)

1шт.

51

4085560

FLANGE FITTING

(SUB FOR TH101960)

4шт.

52

T78313

O-RING

32.918 X 3.531 MM (1.296" X 0.139") (SUB FOR TH101988 AND H61355)

2шт.

53

3036014

JUNCTION BLOCK

(SUB FOR TH101940) (SUB FOR TH106774)

2шт.

54

19M7363

CAP SCREW

M12 X 60, (SUB FOR TH101985)

4шт.

55

12H301

LOCK WASHER

12.700 MM (1/2") (SUB FOR TH100413)

4шт.

56

4102614

JUNCTION BLOCK

(SUB FOR TH101964)

2шт.

57

4154654

ADAPTER FITTING

(SUB FOR TH100942)

2шт.

58

19M8548

SCREW

M12 X 80, (SUB FOR TH101983)

8шт.

59

94-0634

ELBOW FITTING

(SUB FOR TH102980)

1шт.

60

AT264324

O-RING

(SUB FOR TH100044) (USE IF AVAILABLE)

2шт.

AT264324

O-RING

(SUB FOR T32587, TH100044)

2шт.

61

4506424

O-RING

23.700 X 3.500 MM (0.933" X 0.138") (SUB FOR TH100055)

1шт.

62

4156435

ELBOW FITTING

(SUB FOR TH101989)

2шт.

63

TH101963

HYDRAULIC HOSE - FABRICATE

2шт.

64

4156482

HYDRAULIC HOSE

(REAR PUMP) (SUB FOR TH102965)

1шт.

65

GUARD

( TH102968, NO LONGER USED)

1шт.

66

4145258

HYD ACTUATED CONTROL VALVE

(SUB FOR TH102962 AND AT186099)

1шт.

67

4145259

HYD ACTUATED CONTROL VALVE

(SUB FOR TH102963 AND AT186750)

1шт.

68

14M7275

NUT

M12

6шт.

69

12H301

LOCK WASHER

12.700 MM (1/2") (SUB FOR TH100413)

6шт.

70

J901201

BOLT

(SUB FOR TH102964) (SUB FOR TH101986)

6шт.

71

T78313

O-RING

32.918 X 3.531 MM (1.296" X 0.139") (SUB FOR TH101988 AND H61355)

2шт.

72

4085560

FLANGE FITTING

(SUB FOR TH101960)

4шт.

73

M341032

SCREW

M10 X 32, (SUB FOR TH101301)

60шт.

74

9721011

LINE

(SUB FOR TH103001)

1шт.

75

4156475

ELBOW FITTING

(SUB FOR TH102978)

1шт.

76

9065510

CHECK VALVE

CHECK VALVE, (SUB FOR TH101970) (SUB FOR TH107984)

1шт.

77

94-1304

THREADED NIPPLE

(SUB FOR TH100985)

ARшт.

94-1604

PIPE BUSHING

(SUB FOR TH101965)

ARшт.

78

4185757

PIPE BUSHING

(SUB FOR TH102981)

1шт.

79

TH102974

LINE

1шт.

80

4156423

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH102994)

1шт.

81

4096187

VALVE

(SUB FOR TH101966) SLOW RETURN

1шт.

82A

7014495

OIL LINE

(BOOM CYLINDER) (SUB FOR TH102973)

1шт.

82B

7012681

OIL LINE

(BOOM CYLINDER) (SUB FOR TH103477)

1шт.

83

94-1705

ADAPTER FITTING

(SUB FOR TH101967)

1шт.

84

4156475

ELBOW FITTING

(SUB FOR TH102978)

1шт.
