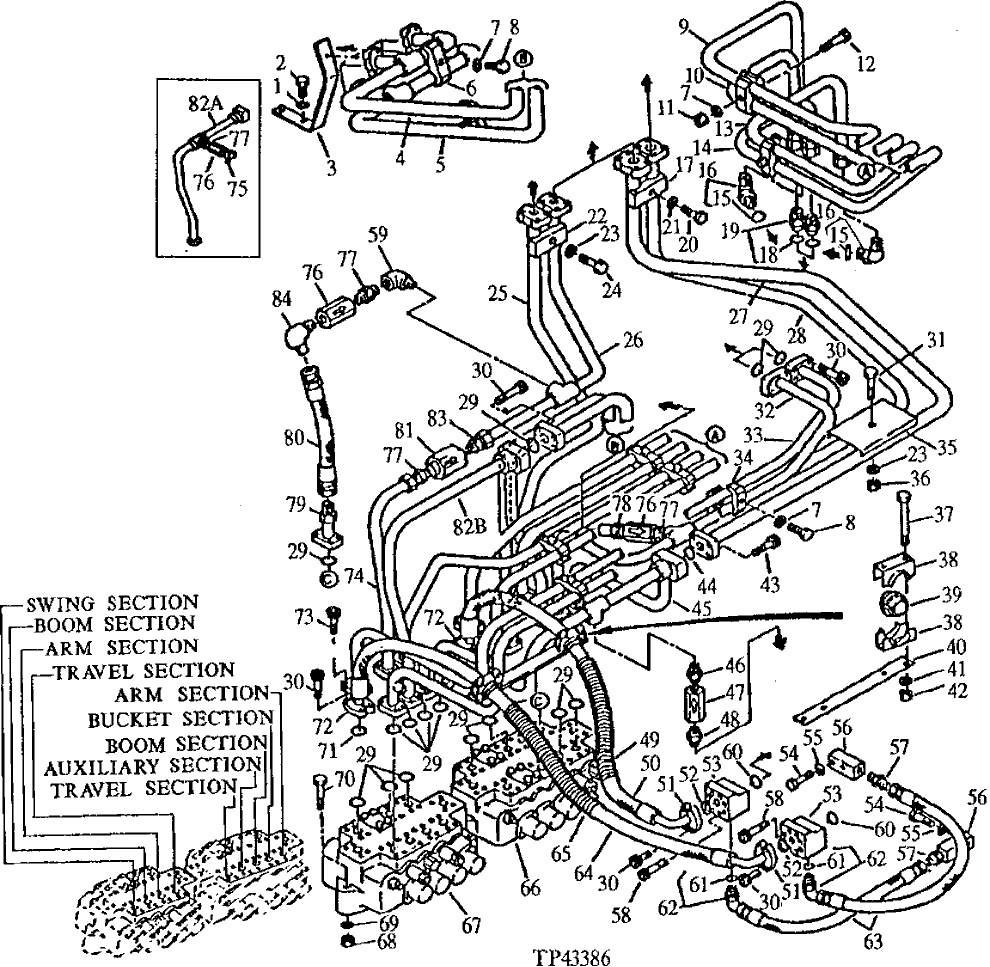

Запчасти John Deere 90 32 - MAIN PIPINGS 2160 - MAIN HYDRAULIC SYSTEM 21

1

12H301

LOCK WASHER

12.700 MM (1/2") (SUB FOR TH100413)

2шт.

2

19M7493

CAP SCREW

M12 X 40

2шт.

3

3026008

BRACKET

(SUB FOR TH102989)

1шт.

4

7013985

OIL LINE

(SUB FOR TH102995) (BOOM CYLINDER)

1шт.

5

7013986

OIL LINE

(SUB FOR TH102996)

1шт.

6

4053599

CLAMP

(SUB FOR TH101980)

13шт.

7

12H301

LOCK WASHER

12.700 MM (1/2") (SUB FOR TH100413)

10шт.

8

19M8348

CAP SCREW

M12 X 65

6шт.

9

7012679

OIL LINE

(SUB FOR TH102972) (FORWARD TRAVEL)

1шт.

10

7012678

OIL LINE

(SUB FOR TH102971)

1шт.

11

14M7275

NUT

M12

4шт.

12

19M7753

CAP SCREW

M12 X 70

4шт.

13

7012677

OIL LINE

(SUB FOR TH102970)

1шт.

14

7012676

OIL LINE

(SUB FOR TH102969) (REVERSE TRAVEL)

1шт.

15

4506424

O-RING

23.700 X 3.500 MM (0.933" X 0.138") (SUB FOR TH100055)

1шт.

16

4065118

ELBOW FITTING

(SUB FOR TH101962)

2шт.

17

4143012

CLAMP

(SUB FOR TH102983)

1шт.

18

4506424

O-RING

23.700 X 3.500 MM (0.933" X 0.138") (SUB FOR TH100055)

1шт.

19

4042033

ADAPTER FITTING

(SUB FOR TH101978)

2шт.

20

19M6754

CAP SCREW

M16 X 75, (SUB FOR TH102985)

1шт.

21

12H294

LOCK WASHER

15.875 MM (5/8") (SUB FOR TH100466)

2шт.

22

4145415

CLAMP

(SUB FOR TH102982)

1шт.

23

12H294

LOCK WASHER

15.875 MM (5/8") (SUB FOR TH100466)

1шт.

24

19M6754

CAP SCREW

M16 X 75, (SUB FOR TH102985)

1шт.

25

7013982

OIL LINE

(BUCKET CYLINDER) (SUB FOR TH102999)

1шт.

26

8030481

OIL LINE

(ARM CYLINDER) (SUB FOR TH102998)

1шт.

27

7013983

OIL LINE

(ARM CYLINDER) (SUB FOR TH102997)

1шт.

28

7013984

OIL LINE

(BUCKET CYLINDER) (SUB FOR TH103000)

1шт.

29

AT264324

O-RING

(SUB FOR TH100044) (USE IF AVAILABLE)

18шт.

AT264324

O-RING

(SUB FOR T32587, TH100044)

18шт.

30

19M8395

SCREW

M12 X 40

28шт.

31

19M8020

CAP SCREW

M16 X 100, (SUB FOR TH102984)

1шт.

32

7012685

OIL LINE

(SWING MOTOR) (SUB FOR TH102976)

1шт.

33

7012686

OIL LINE

(SWING MOTOR) (SUB FOR TH102977)

1шт.

34

4053598

CLAMP

(SUB FOR TH101032)

1шт.

35

9717876

BRACKET

(SUB FOR TH102986)

1шт.

36

14M7276

NUT

M16, (SUB FOR TH101725)

1шт.

37

19M8761

SCREW

M10 X 22, (SUB FOR TH102993)

4шт.

38

4143976

CLAMP

(SUB FOR TH102987)

2шт.

39

4143977

BUSHING

(SUB FOR TH102988)

2шт.

40

4154845

STRAP

(SUB FOR TH102990)

1шт.
