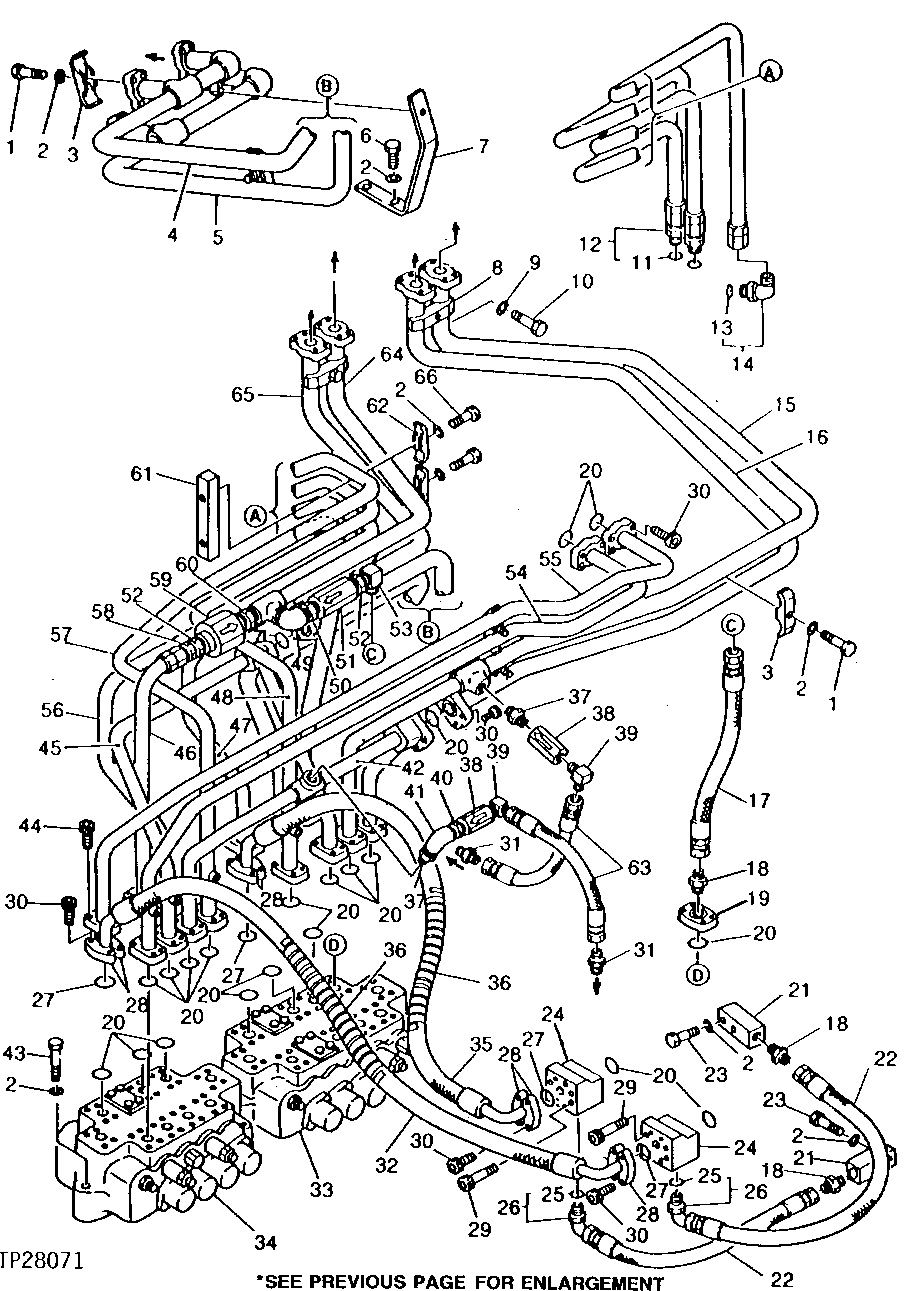

Запчасти John Deere 90 30 - ARM, BOOM, BUCKET, SWING AND ROTARY MANIFOLD PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

26

4156435

ELBOW FITTING

(SUB FOR TH101989)

2шт.

27

H61355

O-RING

32.918 X 3.531 MM (1.296" X 0.139") (SUB FOR TH101988)

4шт.

28

4085560

FLANGE FITTING

(SUB FOR TH101960)

8шт.

29

19M8548

SCREW

M12 X 80, (SUB FOR TH101983)

8шт.

30

19M8395

SCREW

M12 X 40

32шт.

31

4154653

ADAPTER FITTING

(SUB FOR TH100989)

2шт.

32

4153420

HYDRAULIC HOSE

(SUB FOR TH101959)

1шт.

33

4145217

CONTROL VALVE

RIGHT, (SUB FOR TH101941 AND AT186098)

1шт.

34

4145218

HYD ACTUATED CONTROL VALVE

LEFT, (SUB FOR TH101942 AND AT186749)

1шт.

35

4153419

HYDRAULIC HOSE

(SUB FOR TH101958)

1шт.

36

HOSE GUARD

(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)

2шт.

37

94-1903

ADAPTER FITTING

(SUB FOR TH101974)

2шт.

38

9034570

CHECK VALVE

(SUB FOR TH100838)

2шт.

39

4154658

ELBOW FITTING

(SUB FOR TH101039)

2шт.

40

94-1703

ADAPTER FITTING

(SUB FOR TH101976)

1шт.

41

94-0617

ELBOW FITTING

(SUB FOR TH101975)

1шт.

42

8026657

OIL LINE

(SUB FOR TH101950)

1шт.

43

J901201

BOLT

(SUB FOR TH101986)

6шт.

44

M341032

SCREW

M10 X 32, (SUB FOR TH101301)

60шт.

45

8026656

OIL LINE

(SUB FOR TH101947)

1шт.

46

9715375

LINE

(SUB FOR TH101952)

1шт.

47

7012886

OIL LINE

(SUB FOR TH101943)

1шт.

48

7012887

OIL LINE

(SUB FOR TH101944)

1шт.

49

94-0633

ELBOW FITTING

(SUB FOR TH101968)

1шт.

50

94-1904

ADAPTER FITTING

(SUB FOR TH101969)

1шт.

51

9065510

CHECK VALVE

CHECK VALVE, (SUB FOR TH101970) (SUB FOR TH107984)

1шт.

52

94-1604

PIPE BUSHING

(SUB FOR TH101965)

2шт.

53

4156433

ELBOW FITTING

(SUB FOR TH101971)

1шт.

54

8026653

OIL LINE

(SUB FOR TH101957)

1шт.

55

8026654

OIL LINE

(SUB FOR TH101956)

1шт.

56

7012888

OIL LINE

(SUB FOR TH101945)

1шт.

57

7012889

LINE

(SUB FOR TH101946)

1шт.

58

94-1304

THREADED NIPPLE

(SUB FOR TH100985)

1шт.

59

4096187

VALVE

(SUB FOR TH101966) ARM SLOW RETURN

1шт.

60

94-1705

ADAPTER FITTING

(SUB FOR TH101967)

1шт.

61

4128587

STRAP

(SUB FOR TH101979)

1шт.

62

4053596

CLAMP

(SUB FOR TH100948)

3шт.

63

TH104421

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH101977) (OIL COOLER)

2шт.

64

8028519

OIL LINE

(SUB FOR TH101953) (ARM CYLINDER)

1шт.

65

7013837

OIL LINE

(SUB FOR TH101955) (BUCKET CYLINDER)

1шт.

66

19M7362

CAP SCREW

M12 X 55

2шт.
