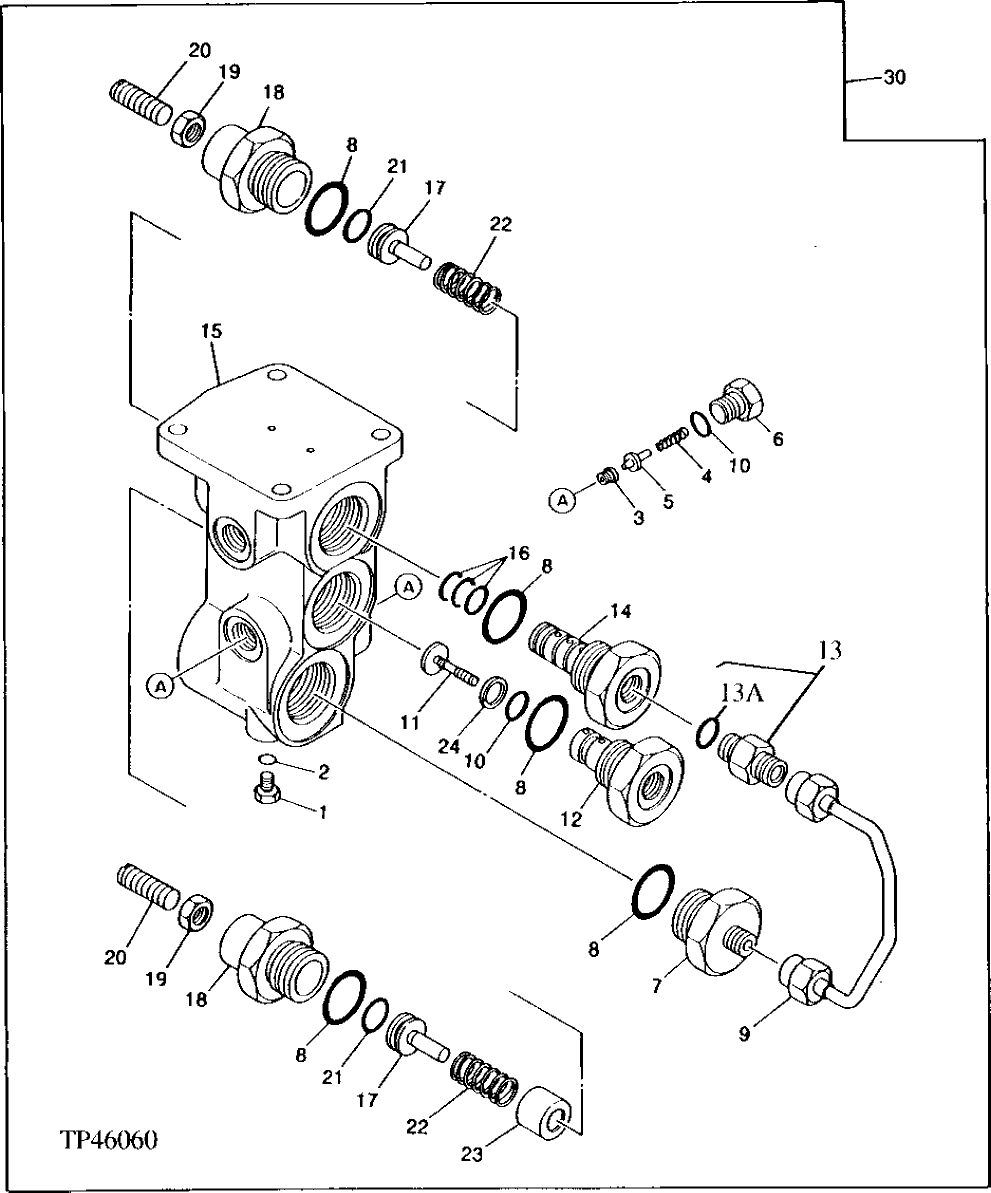

Запчасти John Deere 90 24 - REDUCING VALVE 2160 - MAIN HYDRAULIC SYSTEM 21

1

4165258

FITTING PLUG

(SUB FOR TH103445)

2шт.

2

4153084

O-RING

3.800 X 1.900 MM (0.150" X 0.075") (SUB FOR TH103446)

2шт.

3

4165770

SHEET

(SUB FOR TH103440)

2шт.

4

4164841

SPRING

(SUB FOR TH103442)

2шт.

5

4164845

POPPET

(SUB FOR TH103441)

2шт.

6

4164843

FITTING PLUG

(SUB FOR TH103443)

2шт.

7

4164844

FITTING

(SUB FOR TH103444)

1шт.

8

4506424

O-RING

23.700 X 3.500 MM (0.933" X 0.138") (SUB FOR TH100055)

5шт.

9

4165274

LINE

(SUB FOR TH103447)

1шт.

10

M800650

PACKING

(SUB FOR TH100716)

3шт.

11

4149775

SPOOL VALVE

(SUB FOR TH102600)

1шт.

12

4138053

PLUG

(SUB FOR TH102597)

1шт.

13

4106892

FITTING

(SUB FOR TH101830)

1шт.

13A

M800650

PACKING

1шт.

14

9057367

SLEEVE

(SUB FOR TH103437)

1шт.

15

HOUSING

(SUB FOR TH102596) ( TH103433 NO LONGER AVAILABLE)

1шт.

16

4164050

O-RING

12.700 X 1.200 MM (1/2" X 0.047") (SUB FOR TH103438)

3шт.

17

4166477

STOP

(SUB FOR TH103435)

2шт.

18

4166476

HOLDER

(SUB FOR TH103434)

2шт.

19

14M7274

NUT

M10, (SUB FOR TH102127)

2шт.

20

M451032

SET SCREW

(SUB FOR TH103436)

2шт.

21

CH11570

O-RING

(SUB FOR TH100049)

2шт.

22

4136168

COMPRESSION SPRING

(SUB FOR TH102601)

2шт.

23

4153868

RETAINER

(SUB FOR TH102599)

1шт.

24

4092265

BACK-UP RING

(SUB FOR TH102598)

1шт.

30

9060923

FLOW CONTROL HYD. VALVE

(SUB FOR TH102896) (SUB FOR TH103596)

1шт.

9060922

PRESSURE RELIEF VALVE

(SUB FOR TH101786) (SUB FOR TH103431)

1шт.
