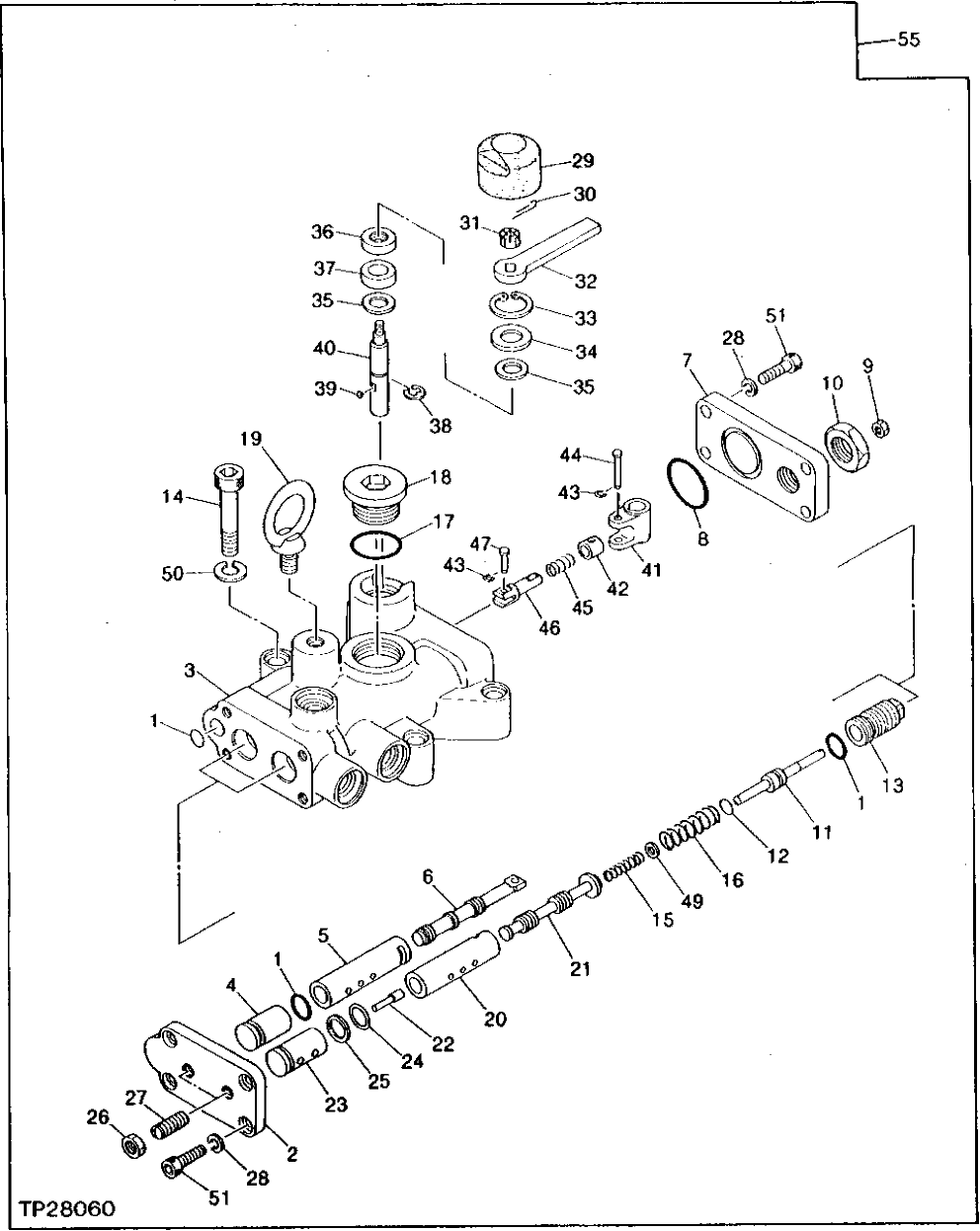

Запчасти John Deere 90 22 - REGULATOR VALVE 2160 - MAIN HYDRAULIC SYSTEM 21

1

4506416

O-RING

15.800 X 2.400 MM (0.622" X 0.094") (SUB FOR TH102561)

3шт.

2

4113923

COVER

(SUB FOR TH102591)

1шт.

3

1005744

HOUSING

(SUB FOR TH102555)

1шт.

4

4136432

SPOOL

(SUB FOR TH102571)

1шт.

5

4132855

SLEEVE

(SUB FOR TH102569)

1шт.

6

4132854

SPOOL

(SUB FOR TH102570)

1шт.

7

4113924

COVER

(SUB FOR TH102590)

1шт.

8

984623

O-RING

41.700 X 3.500 MM (1.642" X 0.138") (SUB FOR TH102592)

1шт.

9

14M7273

NUT

M8

1шт.

10

4068898

NUT

M20, (SUB FOR TH102567)

1шт.

11

4152407

SHAFT

(SUB FOR TH102566)

1шт.

12

CH11560

PACKING

1шт.

13

4152406

GUIDE

(SUB FOR TH102565)

1шт.

14

19M8548

SCREW

M12 X 80, (SUB FOR TH101983)

3шт.

15

4157358

COMPRESSION SPRING

(SUB FOR TH102564)

1шт.

16

4157359

COMPRESSION SPRING

(SUB FOR TH102563)

1шт.

17

TH101926

O-RING

28.700 X 3.500 MM (1.130" X 0.138")

1шт.

18

4157356

PLUG

(SUB FOR TH102593)

1шт.

19

4092149

EYEBOLT

(SUB FOR TH101814)

1шт.

20

4132853

SLEEVE

(SUB FOR TH102556)

1шт.

21

4132852

SPOOL

(SUB FOR TH102557)

1шт.

22

4136429

PISTON

(SUB FOR TH102559)

1шт.

23

4136428

CYLINDER

(SUB FOR TH102558)

1шт.

24

TH102560

O-RING

15.800 X 2.400 MM (0.622" X 0.094")

1шт.

25

4085607

BACK-UP RING

(SUB FOR TH102562)

1шт.

26

14M7274

NUT

M10, (SUB FOR TH102127)

2шт.

27

22M7098

SET SCREW

M10 X 25, (SUB FOR TH102589)

2шт.

28

4514388

SPRING WASHER

(SUB FOR TH101835)

8шт.

29

4147706

CAP

(SUB FOR TH102594)

1шт.

30

11M7075

COTTER PIN

1.200 X 12 MM (0.047" X 0.472") (SUB FOR TH102588)

1шт.

31

M530608

NUT

(SUB FOR TH102587)

1шт.

32

4113922

LEVER

(SUB FOR TH102586)

1шт.

33

40M7085

SNAP RING

(SUB FOR TH102584)

1шт.

34

24M7085

WASHER

15 X 28 X 2.500 MM (0.591" X 1.102" X 0.098") (SUB FOR TH102583)

1шт.

35

24M7047

WASHER

13 X 24 X 2.500 MM (0.512" X 0.945" X 0.098") (SUB FOR TH100967)

2шт.

36

4086281

SEAL

(SUB FOR TH102582)

1шт.

37

4113920

WASHER

12 X 25 X 8 MM (0.472" X 0.984" X 0.315") (SUB FOR TH102581)

1шт.

38

CH11491

RING

(SUB FOR TH102580)

1шт.

39

94-2501

SHAFT KEY

3 X 10 MM (0.118" X 0.394") (SUB FOR TH102579)

1шт.

40

4113921

SHAFT

(SUB FOR TH102585)

1шт.

41

4113919

LINK

(SUB FOR TH102578)

1шт.

42

4113917

RING

(SUB FOR TH102576)

1шт.

43

40M7088

SNAP RING

(SUB FOR TH102574 AND CH13497)

2шт.

44

4113918

PIN FASTENER

(SUB FOR TH102577)

1шт.

45

4113930

COMPRESSION SPRING

(SUB FOR TH102575)

1шт.

46

4113915

YOKE

(SUB FOR TH102572)

1шт.

47

4113916

PIN FASTENER

(SUB FOR TH102573)

1шт.

49

4157357

SHIM

(SUB FOR TH103282)

1шт.

50

12M7058

LOCK WASHER

12 MM (0.472") (SUB FOR TH102529) (SUB FOR 12M6138)

3шт.

51

19M8446

SCREW

M8 X 20

8шт.

55

9056684

REGULATOR

(SUB FOR TH101785)

1шт.

9056688

REGULATOR

(SUB FOR TH102895)

1шт.
