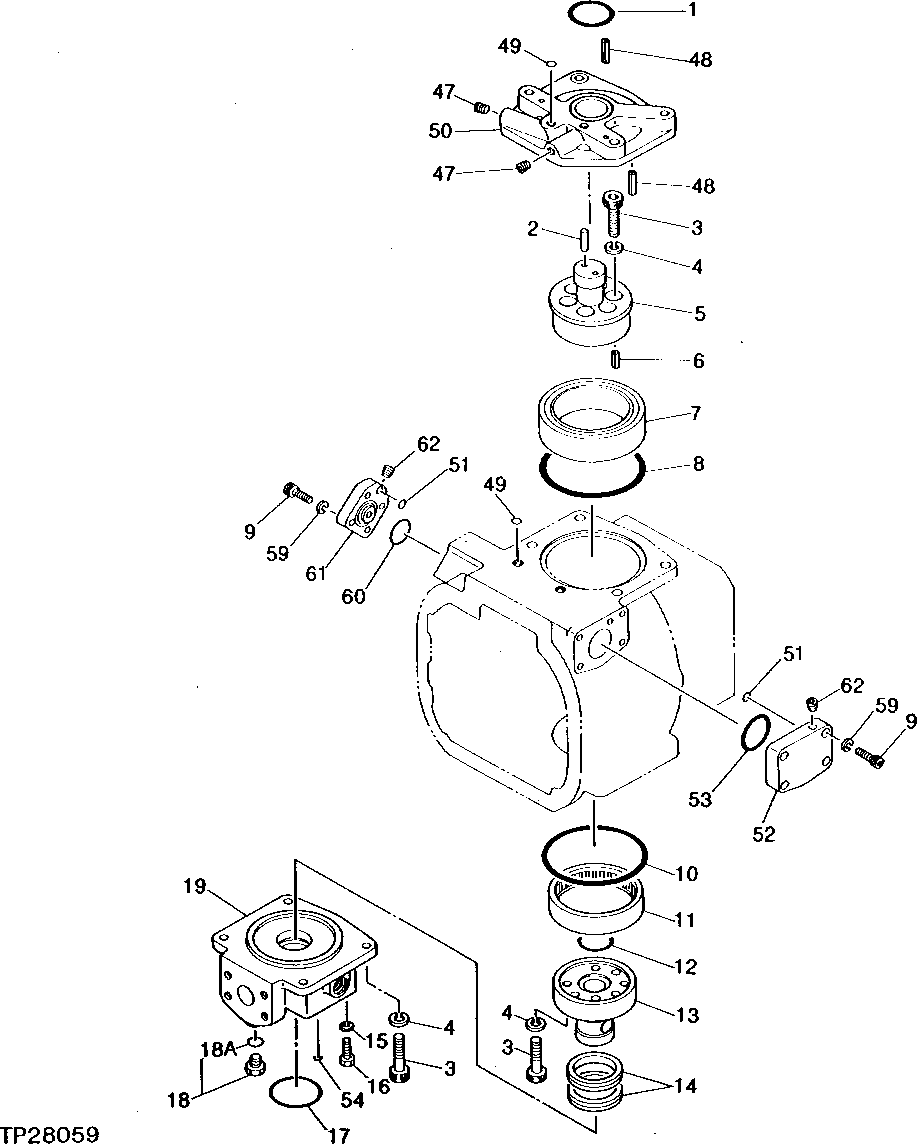

Запчасти John Deere 90 16 - MAIN HYDRAULIC PUMP 2160 - MAIN HYDRAULIC SYSTEM 21

1

CH13520

PACKING

1шт.

2

4114110

DOWEL PIN

(SUB FOR TH102539)

2шт.

3

M341232

BOLT

M12 X 32, (SUB FOR TH100046)

18шт.

4

12M7058

LOCK WASHER

12 MM (0.472") (SUB FOR TH102529) (SUB FOR 12M6138)

18шт.

5

3020288

GUIDE

(SUB FOR TH102537)

1шт.

6

34M7061

SPRING PIN

8 X 20 MM (0.315" X 0.787")

1шт.

7

TH102538

CYLINDRICAL ROLLER BEARING

1шт.

8

CH13522

PACKING

1шт.

9

19M8446

SCREW

M8 X 20

8шт.

10

CH13522

PACKING

1шт.

11

4110854

NEEDLE BEARING

(SUB FOR TH102532)

1шт.

12

A811030

O-RING

29.400 X 3.100 MM (1.157" X 0.122") (SUB FOR TH101300)

1шт.

13

3020027

GUIDE

(SUB FOR TH102531)

1шт.

14

4110856

SEAL

(SUB FOR TH102534)

2шт.

15

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065) (USE WITH AT217327 OR AT217358 PUMPS)

4шт.

16

19M8446

SCREW

M8 X 20, (SUB FOR TH102546) (USE WITH AT217327 OR AT217358 PUMPS)

4шт.

17

CH11436

O-RING

1шт.

18

AT318013

DRAIN PLUG

(SUB FOR 4093624) (SUB FOR TH102536)

1шт.

18A

M800650

PACKING

1шт.

19

2018208

FLANGE

(SUB FOR TH102533)

1шт.

47

15H560

PIPE PLUG

1.575 MM (1/16") (SUB FOR TH100064)

2шт.

48

34M7095

SPRING PIN

4 X 14 MM (0.157" X 0.551") (SUB FOR TH102541)

4шт.

49

960353

O-RING

7.800 X 1.900 MM (0.307" X 0.075") (SUB FOR TH102542)

4шт.

50

2016462

FLANGE

(SUB FOR TH102540)

1шт.

51

960353

O-RING

7.800 X 1.900 MM (0.307" X 0.075") (SUB FOR TH102542)

2шт.

52

4136640

COVER

(SUB FOR TH102544)

1шт.

53

4136639

O-RING

40.800 X 2.400 MM (1.606" X 0.094") (SUB FOR TH102545)

1шт.

54

4138721

O-RING

4.800 X 1.900 MM (0.189" X 0.075") (SUB FOR TH102535)

1шт.

59

4514388

SPRING WASHER

(SUB FOR TH101835)

8шт.

60

A811030

O-RING

29.400 X 3.100 MM (1.157" X 0.122") (SUB FOR TH101300)

1шт.

61

4114338

COVER

(SUB FOR TH102547)

1шт.

62

15H560

PIPE PLUG

1.575 MM (1/16") (SUB FOR TH100064)

2шт.

65

TH103509

PUMP

1шт.

AT217358

PUMP

(REMANUFACTURED) (SUB FOR TH103509) (SUB FOR TH102894 ALONG WITH TH102895 AND TH103596) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGE)

1шт.

AT217327

PUMP

(REMANUFACTURED) (SUB FOR TH103509) (SUB FOR TH101784 ALONG WITH TH101785 AND TH103431) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGE)

1шт.
