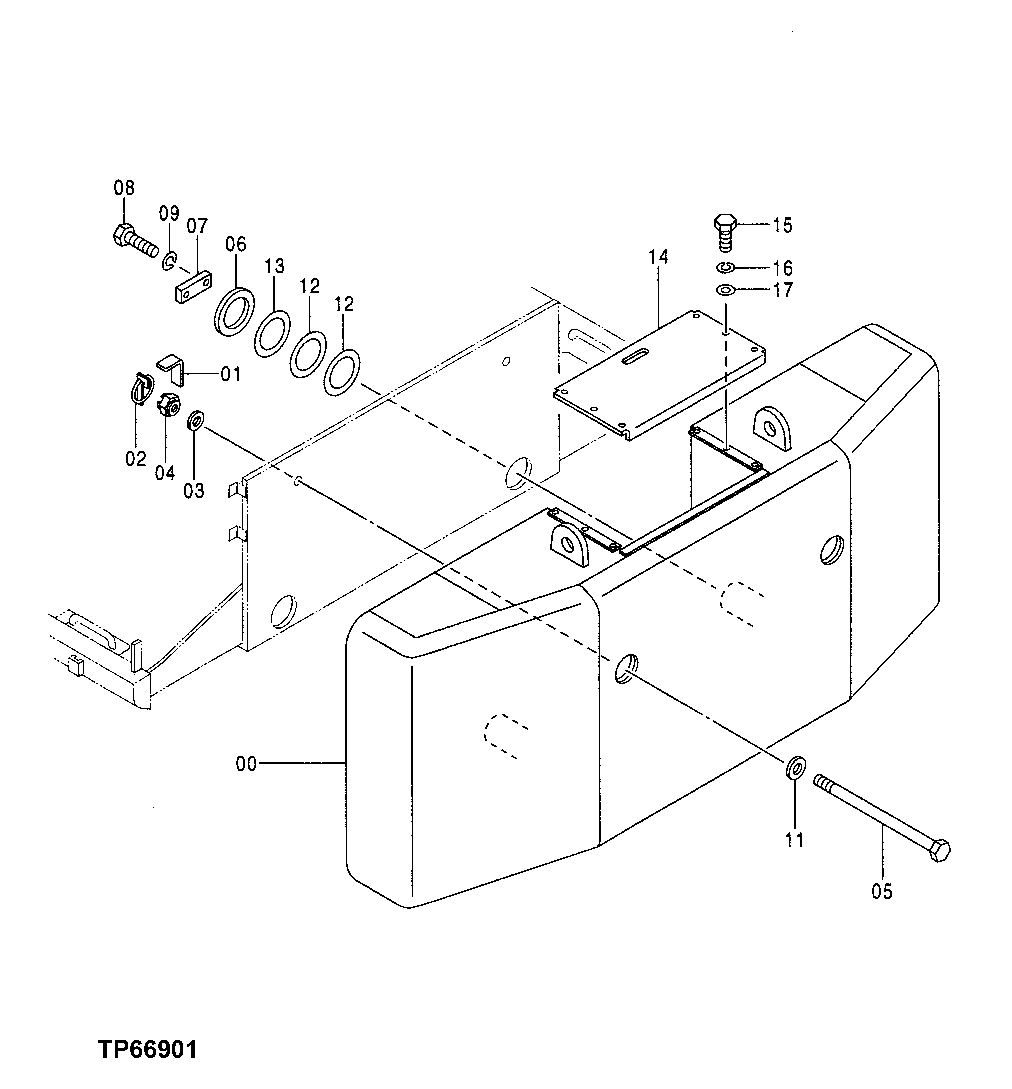

Запчасти John Deere 50 51 - Counterweight Removal Device 1740 Frame Installation

0

5005719

Counterweight

(SUB FOR TH5005719)WHOLEGO ODS (CONVENIENCE ASSEMBLY)

1шт.

1

4345741

Shim

(SUB FOR AT202397)

2шт.

2

9701925

Quick Lock Pin

(SUB FOR AT132681)

2шт.

3

4103743

Bushing

46 X 70 X 10 mm (1.811" X 2.75 6" X 0.394") (SUB FOR AT131690)

2шт.

4

4246150

Nut

M45 (SUB FOR AT132682)

2шт.

5

4341856

Cap Screw

(SUB FOR AT202396)

2шт.

6

4346036

Washer

(SUB FOR TH4346036)

2шт.

7

4221465

Strap

(SUB FOR TH4221465)

2шт.

8

19M8022

Cap Screw

M24 X 70 (SUB FOR THJ912470 OR J912470)

4шт.

9

12H234

Lock Washer

1"

4шт.

11

4114413

Washer

(SUB FOR TH4114413)

2шт.

12

4380636

Shim

(SUB FOR TH4380636)

4шт.

13

4380637

Shim

(SUB FOR TH4380637)

2шт.

14

8071417

Cover

(SUB FOR TH8071417)

1шт.

15

19M7938

Cap Screw

M10 X 20

6шт.

16

12M7066

Lock Washer

10 mm

6шт.

17

24M7028

Washer

10.500 X 20 X 2 mm

6шт.
