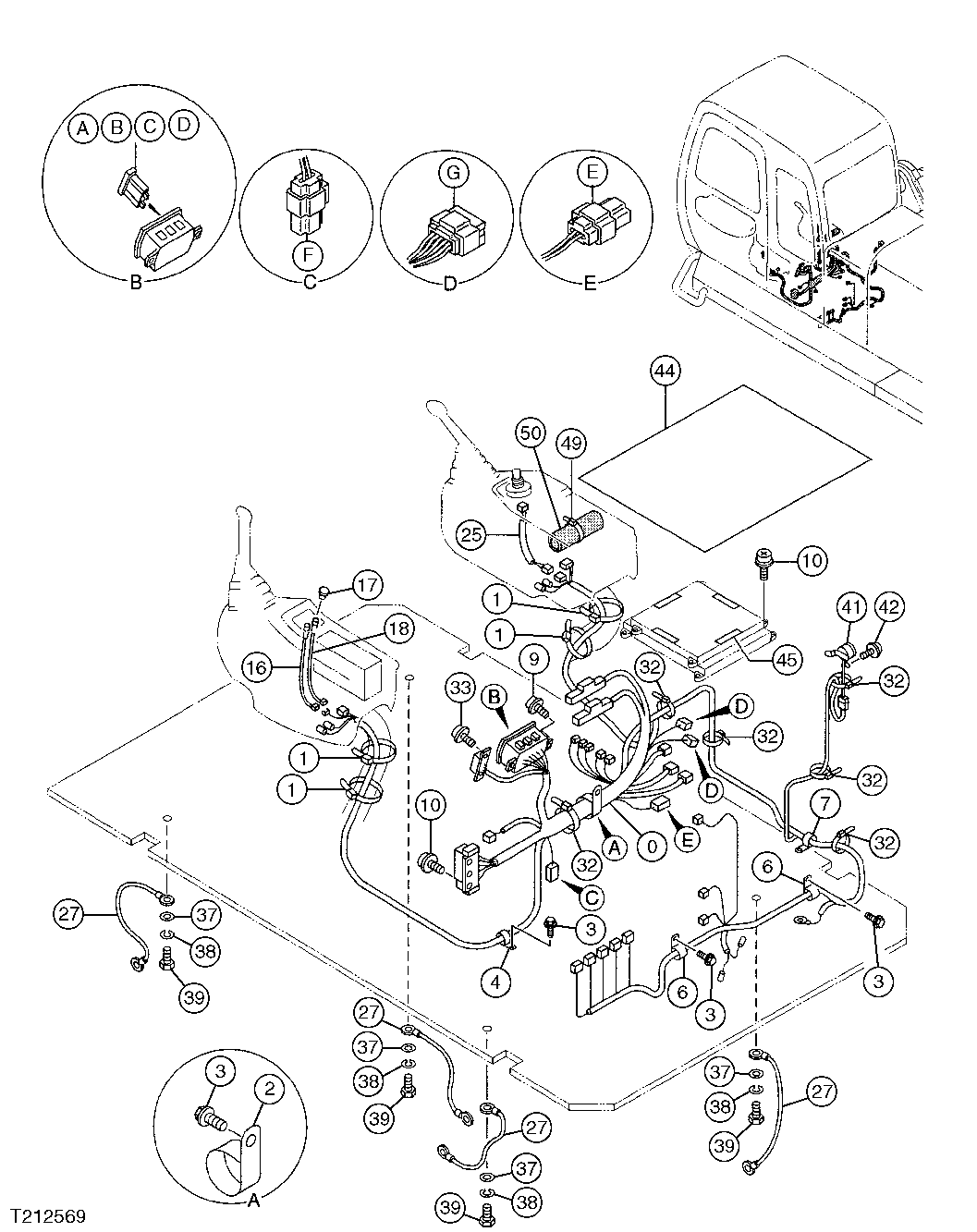

Запчасти John Deere 50 41 - ELECTRIC PARTS 1674 Wiring Harness And Switches

0

0003425

Wiring Harness

(SUB FOR 0003107)(SEE DTAC SOLUTI ON FOR REPAIR KIT AND CONNECTORS)

1шт.

0A

57M7125

Fuse

10шт.

0B

57M7121

Fuse

5шт.

0C

57M7120

Fuse

1шт.

0D

57M7146

Fuse

4шт.

0E

4408136

Resistor

(SUB FOR TH4408136)

1шт.

0F

4288109

Diode

(SUB FOR AT174465)

1шт.

0G

4385926

Diode

(SUB FOR AT179394)

2шт.

1

H77698

Tie Band

4шт.

2

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

3

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

4

4190275

Clamp

(SUB FOR TH108598)

1шт.

6

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

2шт.

7

XCL-19

Hose Clamp

(SUB FOR TH108459 OR 4192035)

1шт.

9

19M7077

Cap Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

10

Screw With Washer

( J460620 NO LONGER AVAI LABLE) (SUB FOR AT200012)

10шт.

21M7267

Screw

M6 X 20

10шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

10шт.

12M7006

Lock Washer

6 mm

10шт.

16

4322389

Switch

(SUB FOR AT161977)

1шт.

17

4294437

Cap

(SUB FOR AT215503)(NOT REQ UIRED IN THIS APPLICATION)

1шт.

18

4322387

Switch

(SUB FOR AT161978)

1шт.

25

4277927

Wiring Harness

(SUB FOR AT154955)(STARTER SWITCH)

1шт.

27

Wiring Harness

(GROUND STRAP)

4шт.

32

H77698

Tie Band

6шт.

33

Screw

(SUB FOR AT156974)( J460310 NLA)

2шт.

21M7394

Screw

M3 X 10

2шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

2шт.

12H233

Lock Washer

1/8"

2шт.

37

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

38

12M7066

Lock Washer

10 mm

4шт.

39

19M8324

Cap Screw

M10 X 16

4шт.

41

4258403

Audible Warning Alarm

(SUB FOR AT154934)

1шт.

42

19M7372

Cap Screw

M5 X 16

2шт.

12M7064

Lock Washer

5 mm

2шт.

24M7348

Washer

5.500 X 10 X 1 mm

2шт.

44

3075379

Cover

(SUB FOR AT213792)

1шт.

45

4365396

Tape

(SUB FOR AT214022)

4шт.

49

H77698

Tie Band

1шт.

50

4403273

Isolator

(SUB FOR AT184358)

1шт.
